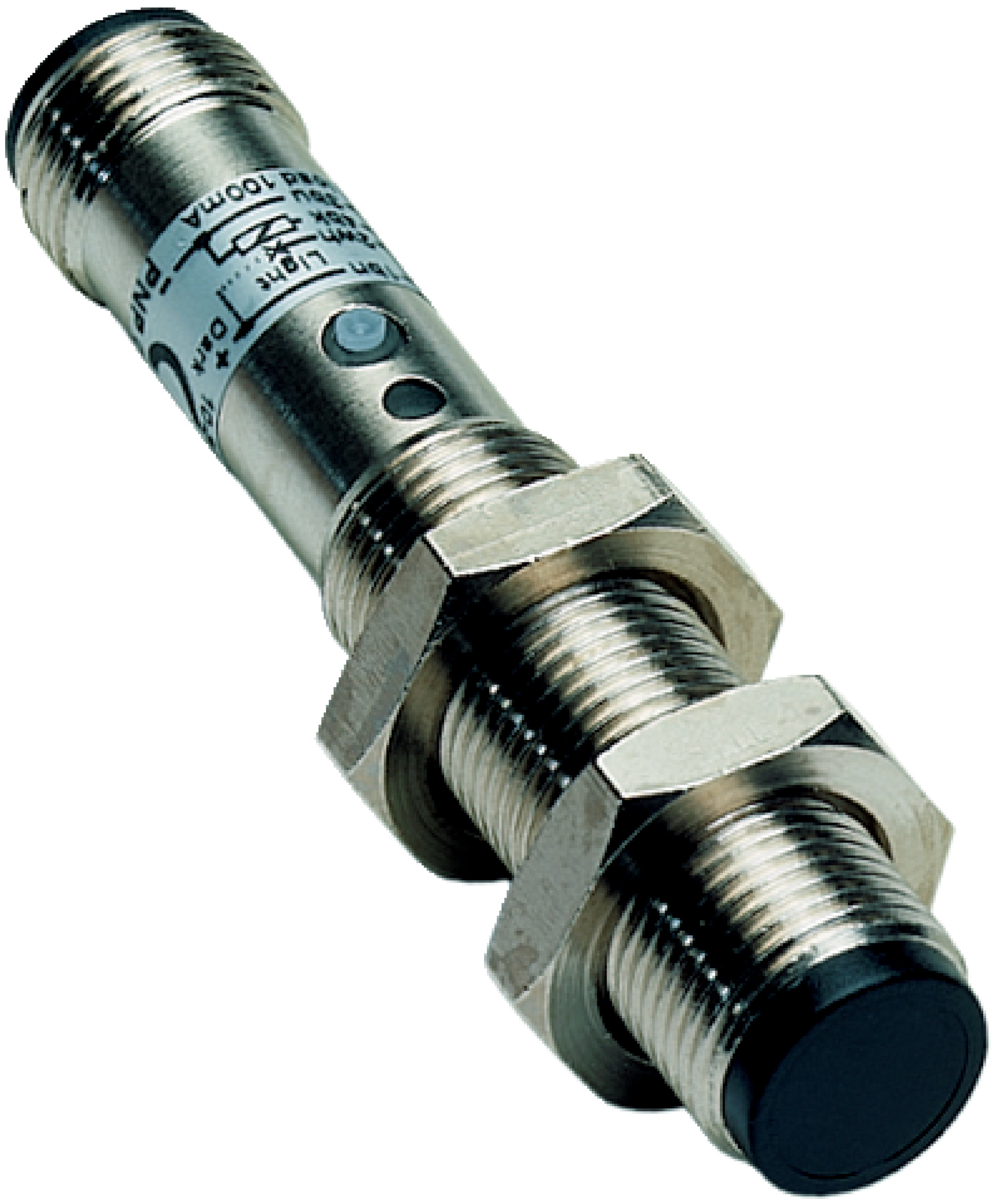

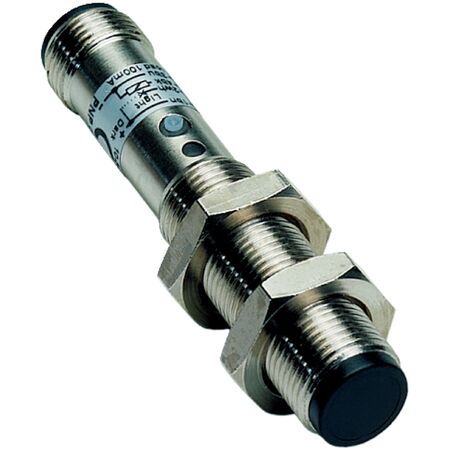

Photoelectric Proximity Sensor VT12T-2N410 | IP67 Rated | Fast Response Time | NPN Output | by SICK
The Photoelectric Proximity Sensor VT12T-2N410 is designed for industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 1.25 ms and a sensing range of 2 mm to 100 mm, this sensor is perfect for object detection and manufacturing process control. Built with a durable metal housing, it ensures longevity and reliability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN
- Switching mode: Light/dark switching, selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -25 °C to +70 °C
- Light spot size at 100 mm: Ø 20 mm
- Focus angle: Approx. 11.4°
- Wave length: 880 nm
- Dimensions (H x L x W): 12mm x 65.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Infrared LED light source with 880 nm wavelength
- Sensing range from 2 mm to 100 mm, max 115 mm
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Single teach-in button and selectable sensing range via control input
- Fast response time of ≤ 1.25 ms and switching frequency of 400 Hz
- NPN switching output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VT12T-2N410 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
