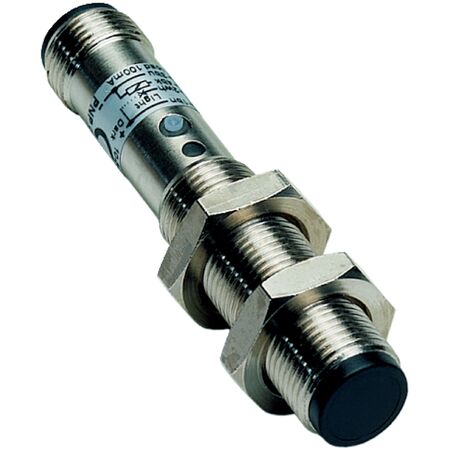

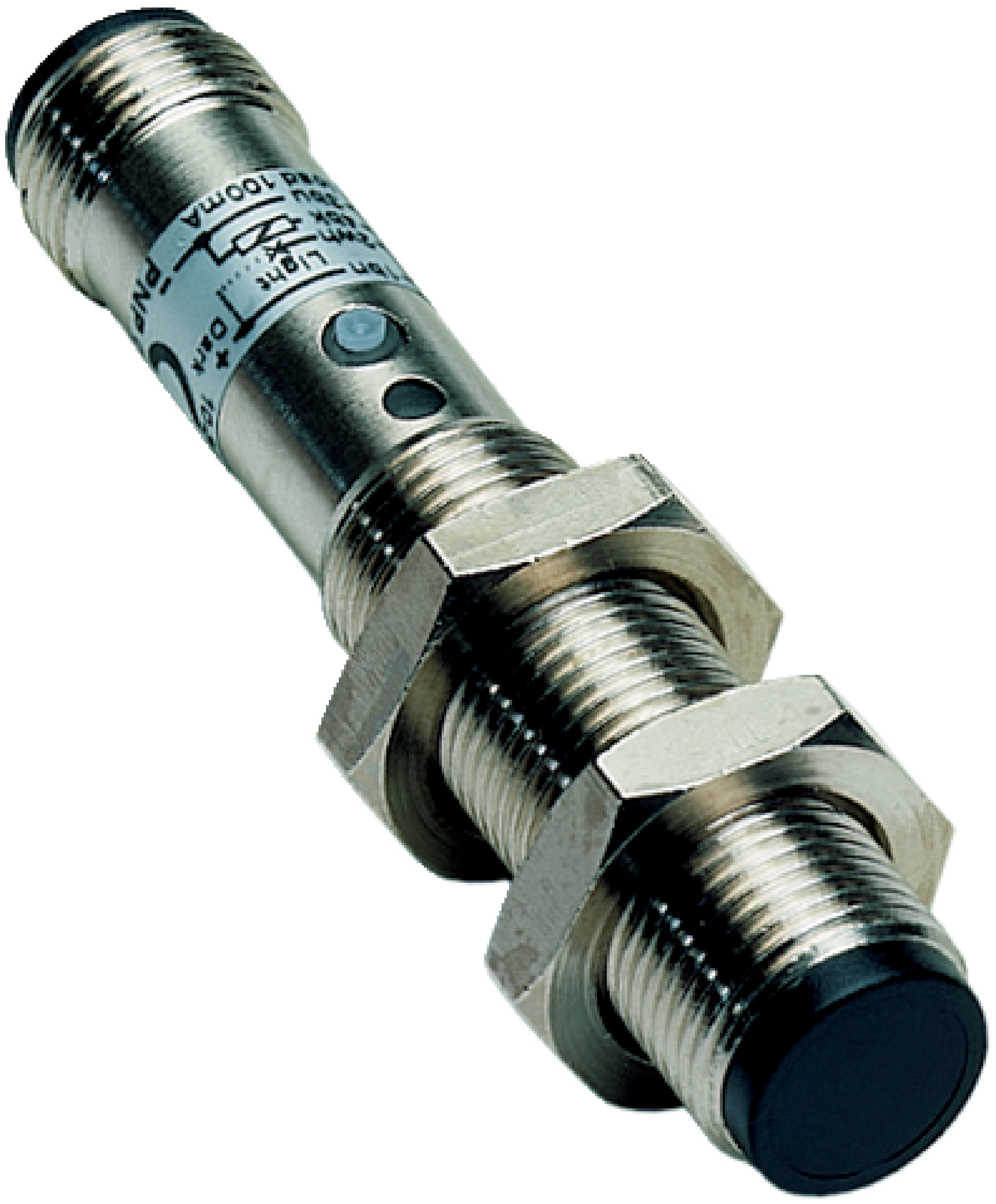

Photoelectric Proximity Sensor VT12T-2N430 | IP67 Rated | NPN Output | 2mm to 340mm Sensing Range | by SICK
The Photoelectric Proximity Sensor VT12T-2N430 is designed for industrial automation, featuring a sensing range from 2mm to 340mm and an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 1.25 ms and selectable light/dark switching mode, it's perfect for manufacturing process control and material handling applications, ensuring reliable object detection in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control input
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Ambient operating temperature: -25°C to +70°C
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Wave length: 880 nm
- Light spot size at 300 mm: Ø 28 mm
- Angle of dispersion: Approx. 5.3°
- Dimensions (H x L x W): 12mm x 65.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, max 340 mm
- Infrared light source with LED
- Single teach-in button and selectable sensing range via control input
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +70°C
- Switching output: NPN with light/dark switching mode
- Response time ≤ 1.25 ms and switching frequency 400 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VT12T-2N430 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
