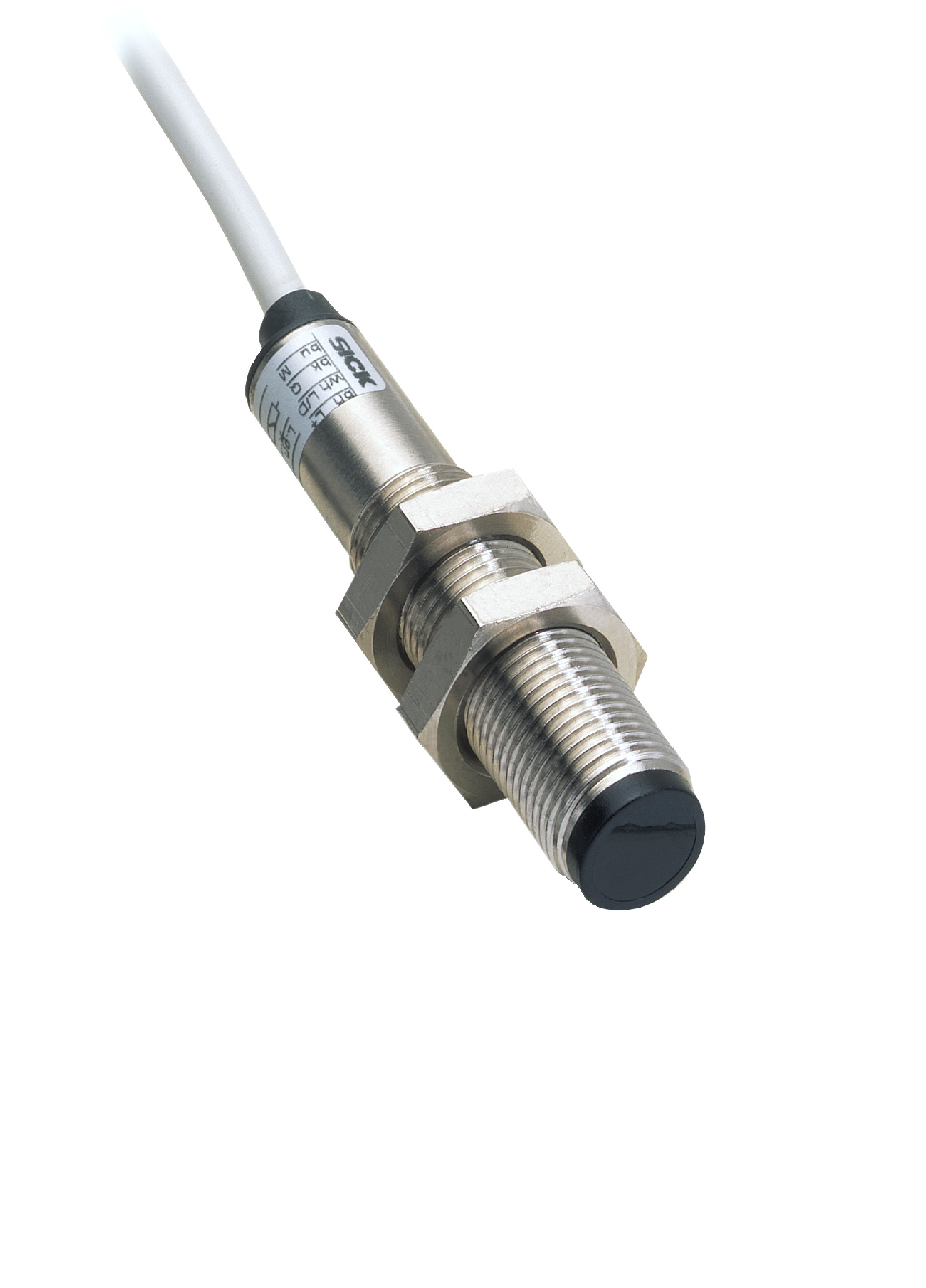

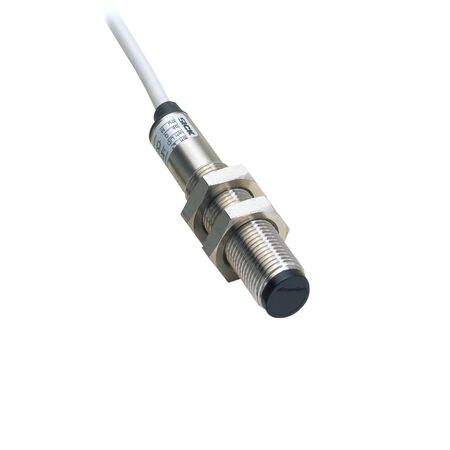

Photoelectric Proximity Sensor VT12T-2P112 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The Photoelectric Proximity Sensor VT12T-2P112 is designed for precise object detection in industrial automation. With an IP67 rating for dust and water protection, it features a fast response time of ≤ 1.25 ms and a selectable light/dark switching mode. Ideal for manufacturing process control and material handling, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection type: Cable, 4-wire, 2 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Cable diameter: Ø 3.75 mm
- Protection class: III
- Housing material: Metal, Nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +70 °C
- Ambient storage temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 12mm x 54.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 100 mm, max 115 mm
- Infrared LED light source with 880 nm wavelength
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Single teach-in button and selectable sensing range via control input
- Switching output PNP with light/dark switching mode
- Fast response time ≤ 1.25 ms and switching frequency 400 Hz
- Cable connection with 4-wire, 2 m PVC cable
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor setup.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VT12T-2P112 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
