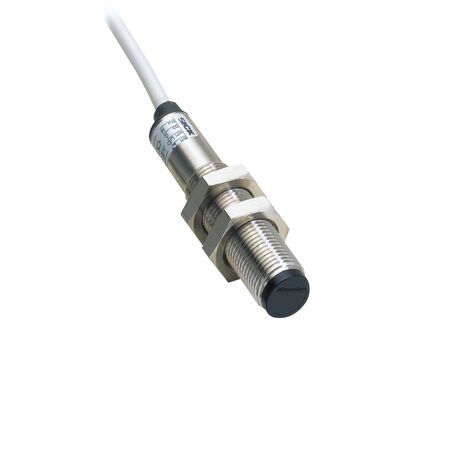

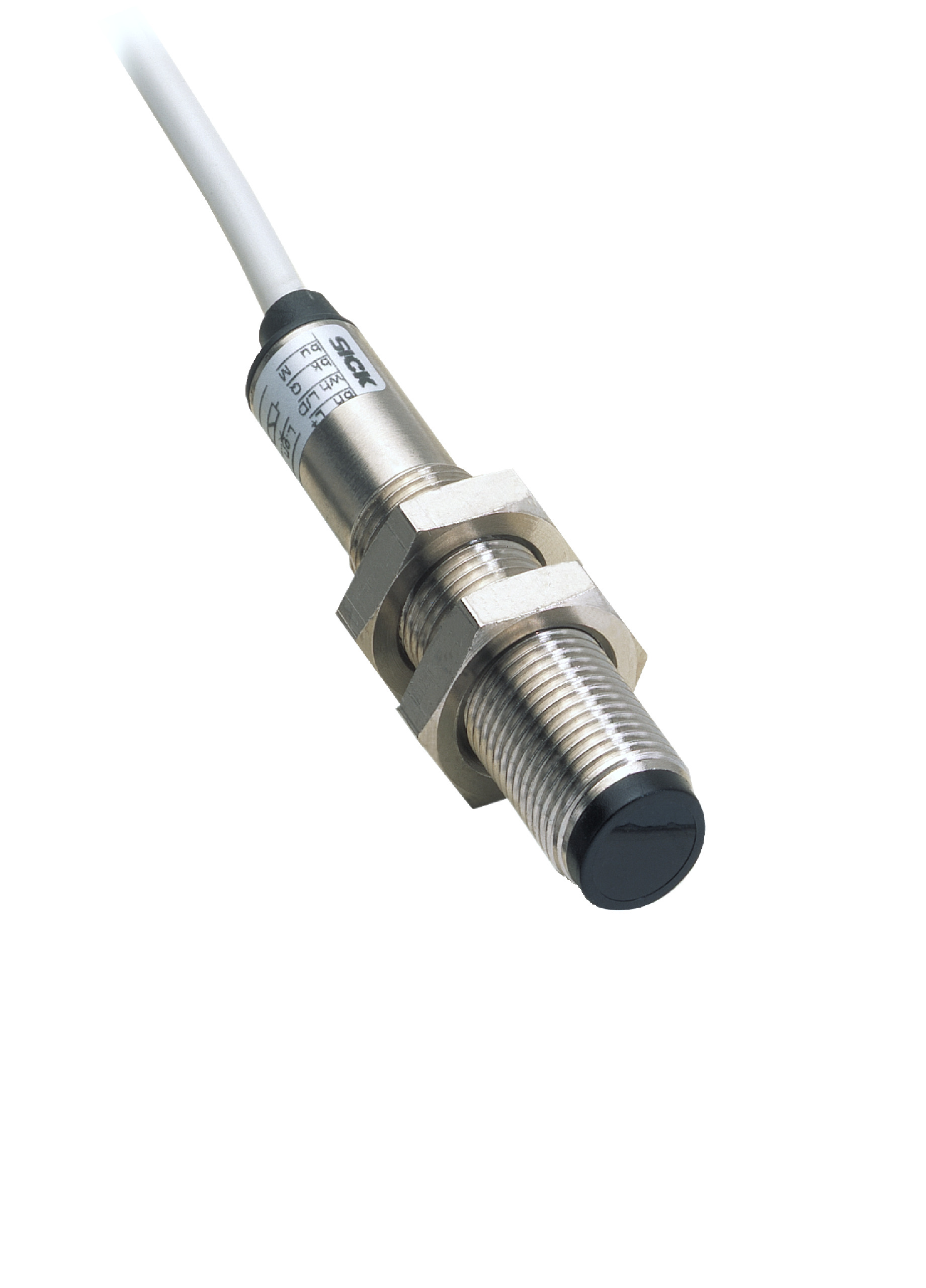

Photoelectric Proximity Sensor VT12T-2P132 | IP67 Rated | Fast Response Time | Robust Metal Housing | by SICK
The Photoelectric Proximity Sensor VT12T-2P132 is designed for industrial automation, featuring a sensing range of 2 mm to 300 mm and a fast response time of ≤ 1.25 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP with max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control input
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass and PA
- Optics material: Plastic, PMMA
- Light wavelength: 880 nm
- Light spot size at 300 mm: Ø 28 mm
- Angle of dispersion: Approx. 5.3°
- Dimensions (H x L x W): 12mm x 54.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, max 340 mm
- Infrared light source with LED
- Single teach-in button and selectable sensing range via control input
- High switching frequency of 400 Hz and fast response time ≤ 1.25 ms
- Robust metal housing with nickel-plated brass and plastic optics
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VT12T-2P132 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
