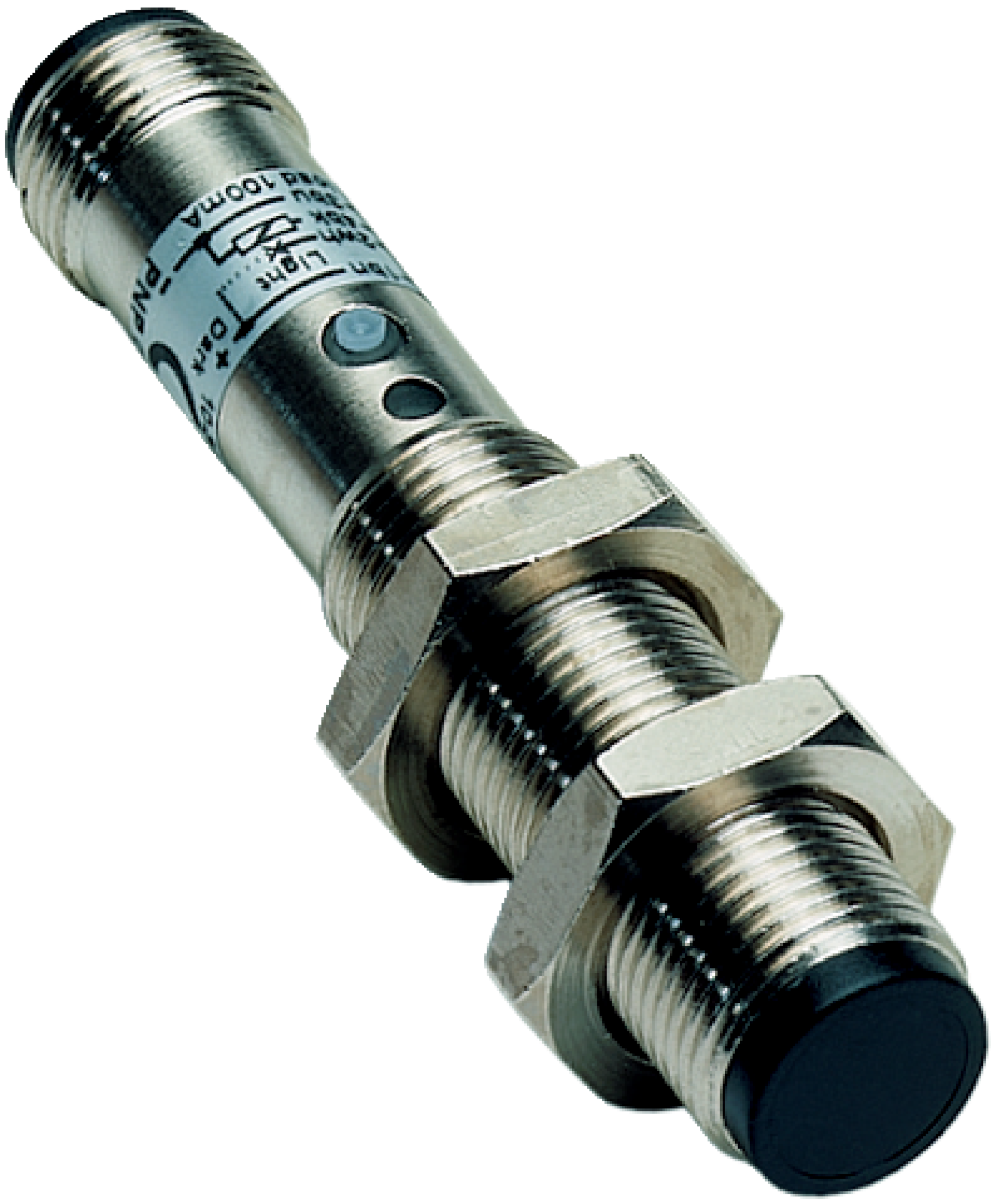

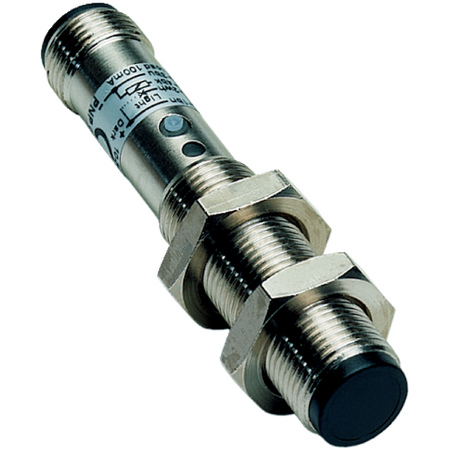

Photoelectric Proximity Sensor VT12T-2P410 | IP67 Rated | 400 Hz Switching Frequency | Energetic Functionality | by SICK
The Photoelectric Proximity Sensor VT12T-2P410 is designed for industrial automation, featuring a sensing range of 2 mm to 100 mm and a high switching frequency of 400 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety systems. Its robust metal housing and fast response time of ≤ 1.25 ms enhance its functionality for object detection and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Infrared Proximity Sensor, Energetic Proximity Sensor, M12 Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control input
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Light spot size at 100 mm: Ø 20 mm
- Angle of dispersion: Approx. 11.4°
- Wave length: 880 nm
- Dimensions (H x L x W): 12mm x 65.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 100 mm, max 115 mm
- Infrared LED light source with 880 nm wavelength
- Single teach-in button and selectable sensing range via control input
- High switching frequency of 400 Hz and fast response time ≤ 1.25 ms
- Robust metal housing with nickel-plated brass and plastic optics
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and conveyor systems
- Safety and security systems requiring proximity sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VT12T-2P410 Energetic Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and control applications.
