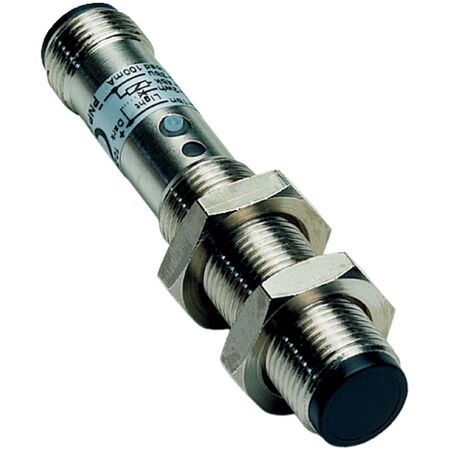

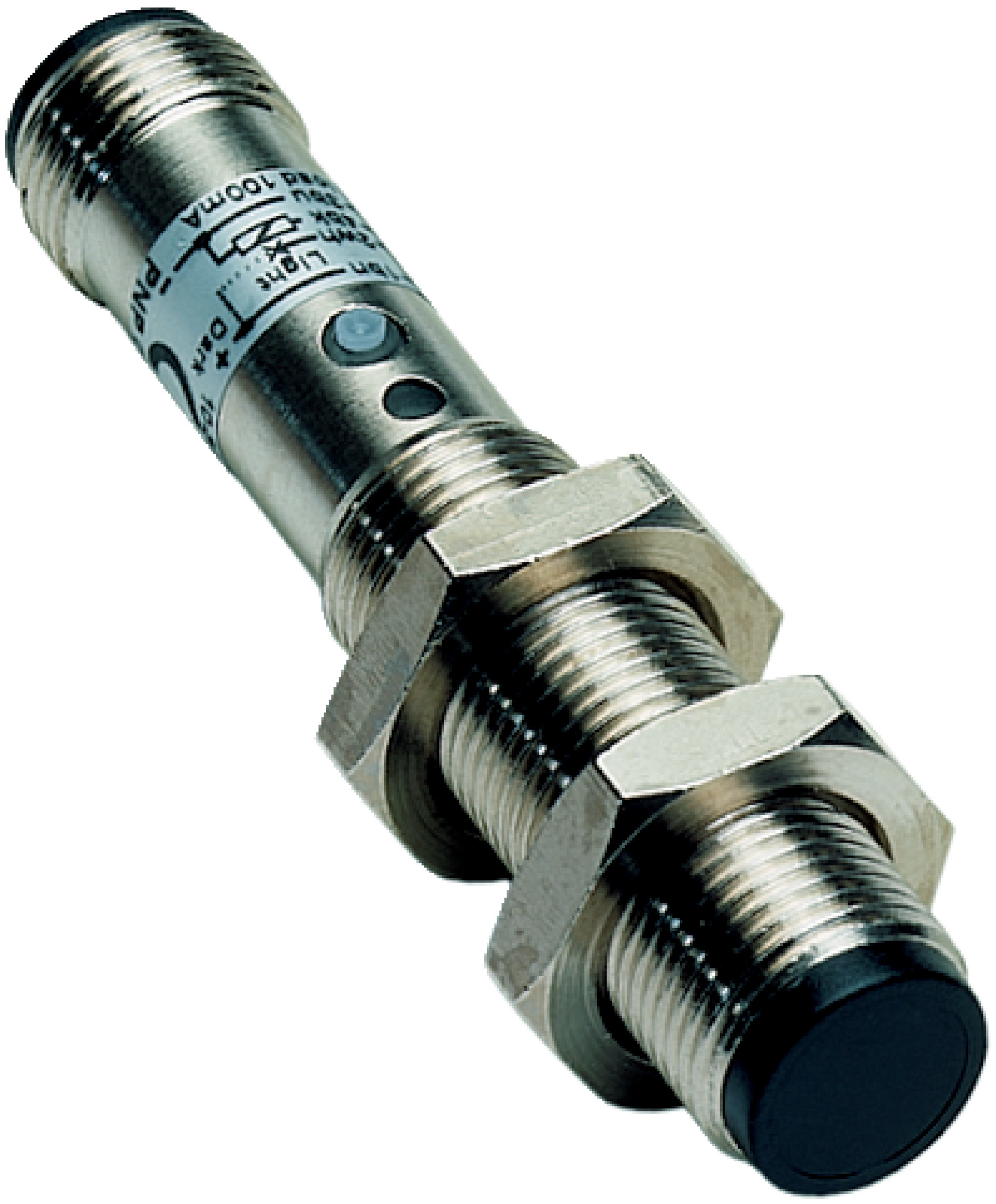

Photoelectric Proximity Sensor VT12T-2P410 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The Photoelectric Proximity Sensor VT12T-2P410 is designed for industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 1.25 ms and a PNP output, it's perfect for object detection in manufacturing and material handling applications. This sensor operates with an infrared LED light source at an 880 nm wavelength, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching, selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Wave length: 880 nm
- Focus angle: Approx. 11.4°
- Light spot size at 100 mm: Ø 20 mm
- Dimensions (H x L x W): 12mm x 65.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Infrared LED light source with 880 nm wavelength
- Sensing range from 2 mm to 100 mm, max 115 mm
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Single teach-in button and selectable sensing range via control input
- Fast response time of ≤ 1.25 ms and switching frequency of 400 Hz
- PNP switching output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VT12T-2P410 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
