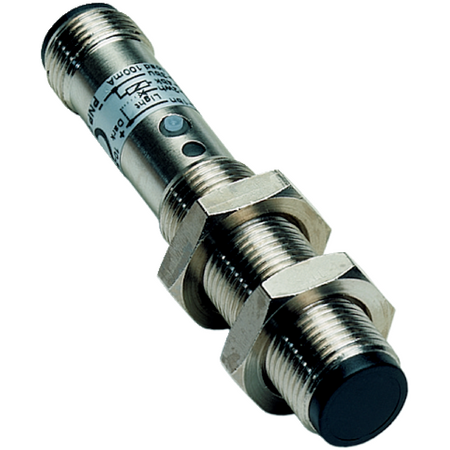

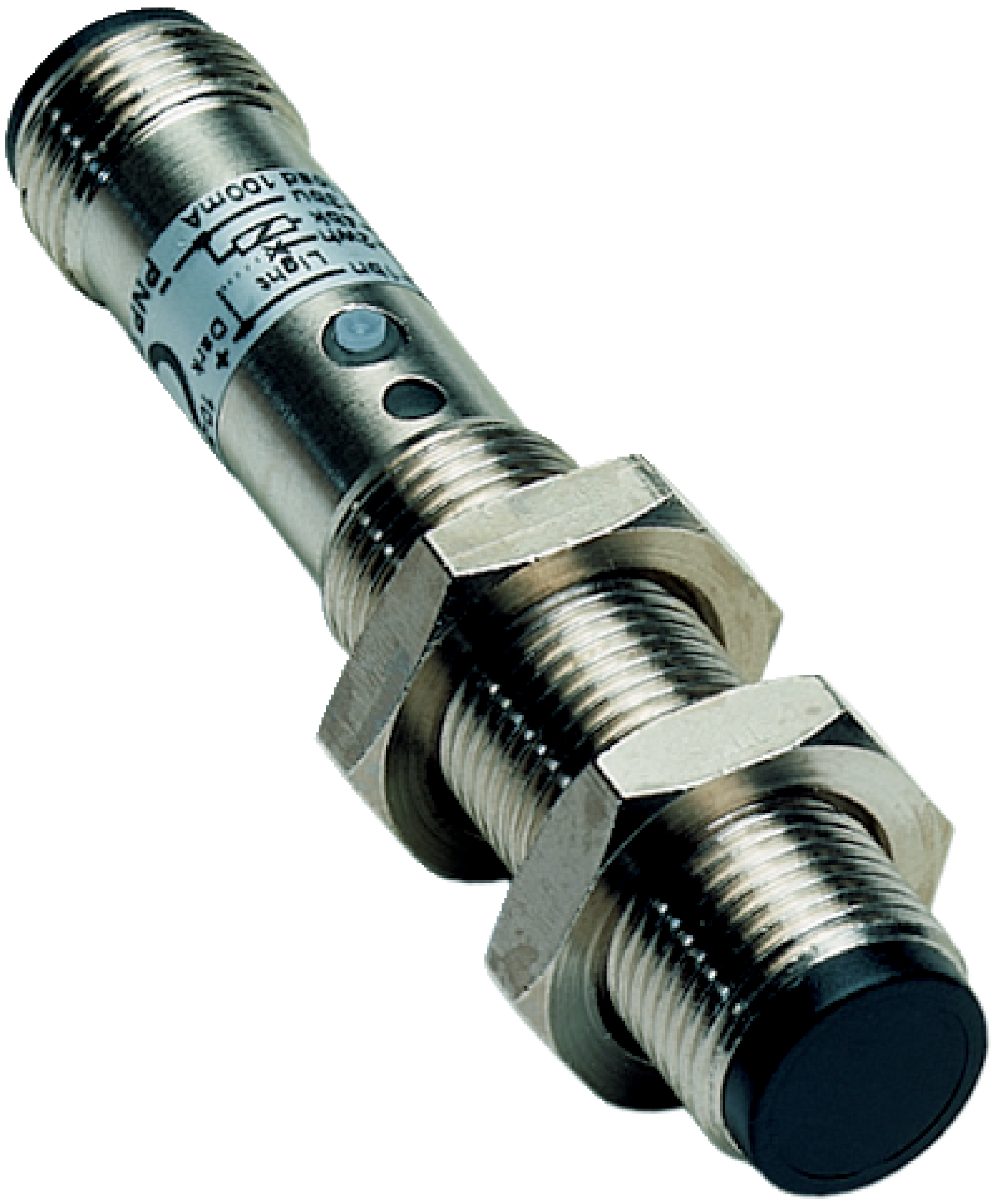

Photoelectric Proximity Sensor VT12T-2P430 | IP67 Rated | 400 Hz Switching Frequency | Energetic Functionality | by SICK
The Photoelectric Proximity Sensor VT12T-2P430 is designed for industrial automation, featuring a sensing range of 2 mm to 300 mm and a high switching frequency of 400 Hz. With an IP67 rating for dust and water resistance, this sensor is perfect for object detection in material handling and conveyor systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Infrared Proximity Sensor, Energetic Proximity Sensor, M12 Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control input
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Operating temperature: -25 °C to +70 °C
- Wave length: 880 nm
- Light spot size at 300 mm: Ø 28 mm
- Focus angle: Approx. 5.3°
- Dimensions (H x L x W): 12mm x 65.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, max 340 mm
- Infrared LED light source with 880 nm wavelength
- Single teach-in button and selectable sensing range via control input
- High switching frequency of 400 Hz and fast response time ≤ 1.25 ms
- Robust metal housing with nickel-plated brass and plastic optics
- Protection rating IP67 for dust and water resistance
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Packaging and assembly line monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable metal housing extends product lifespan reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VT12T-2P430 Energetic Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
