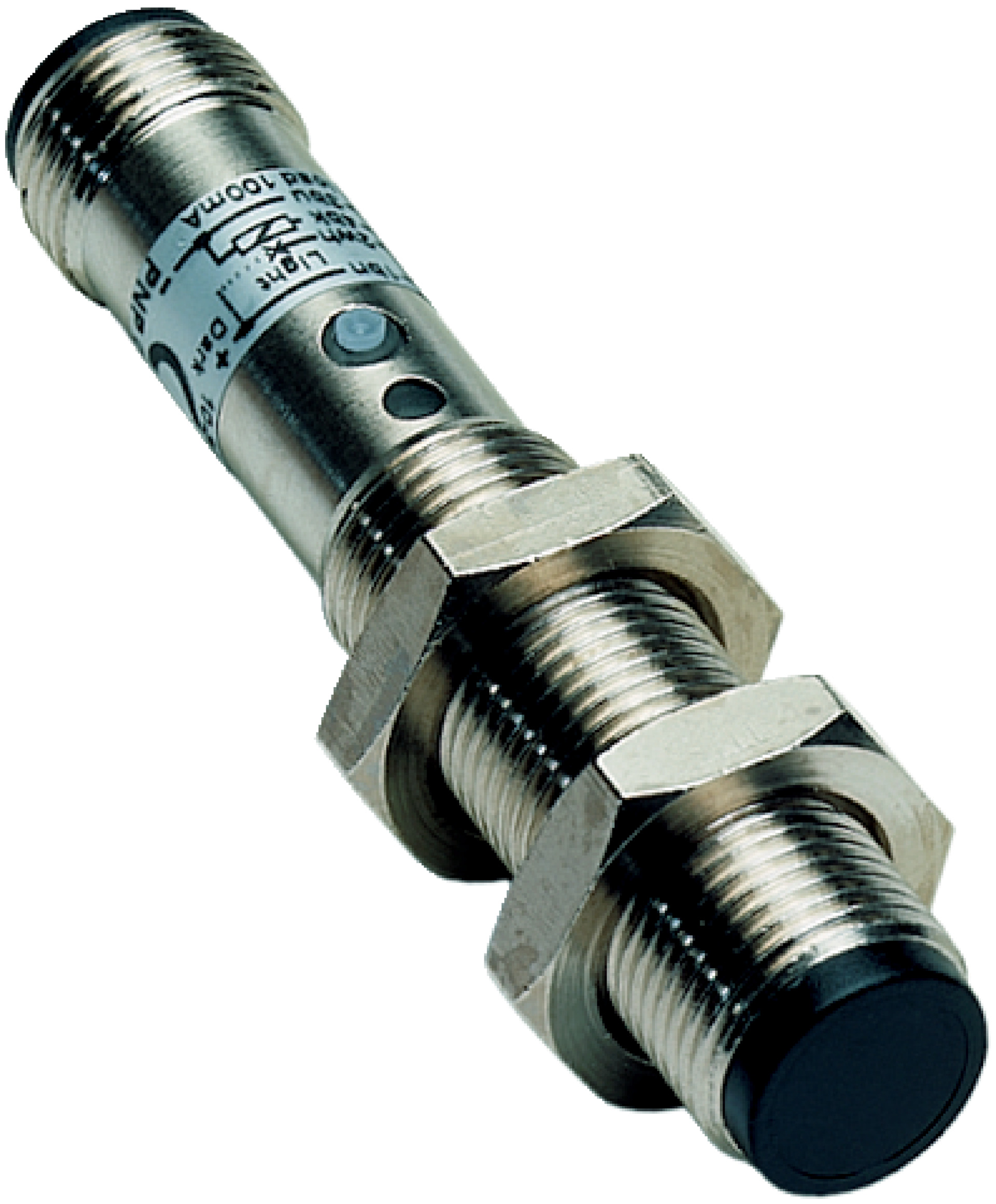

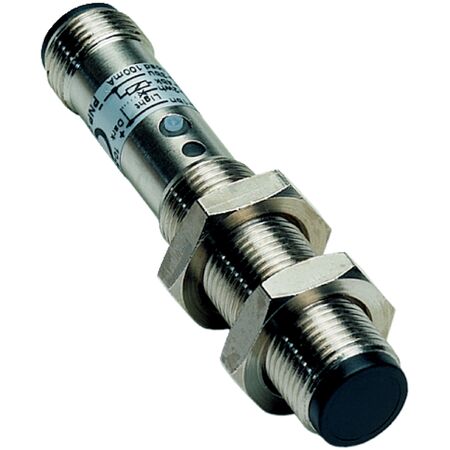

Photoelectric Proximity Sensor VT12T-2P430 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The Photoelectric Proximity Sensor VT12T-2P430 is designed for industrial automation, featuring a sensing range of 2 mm to 300 mm and a fast response time of ≤ 1.25 ms. With an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Metal, Nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: –25 °C to +70 °C
- Storage temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 12mm x 65.5mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, max 340 mm
- Infrared light source with wavelength of 880 nm
- Single teach-in button and selectable sensing range via control input
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 1.25 ms and switching frequency of 400 Hz
- PNP switching output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable metal housing extends product life reducing waste
- IP67 rating ensures long-term reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK VT12T-2P430 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
