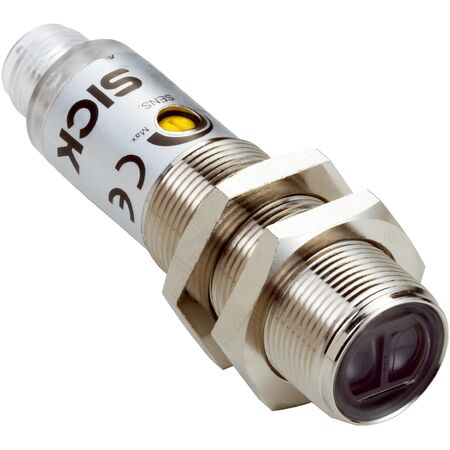

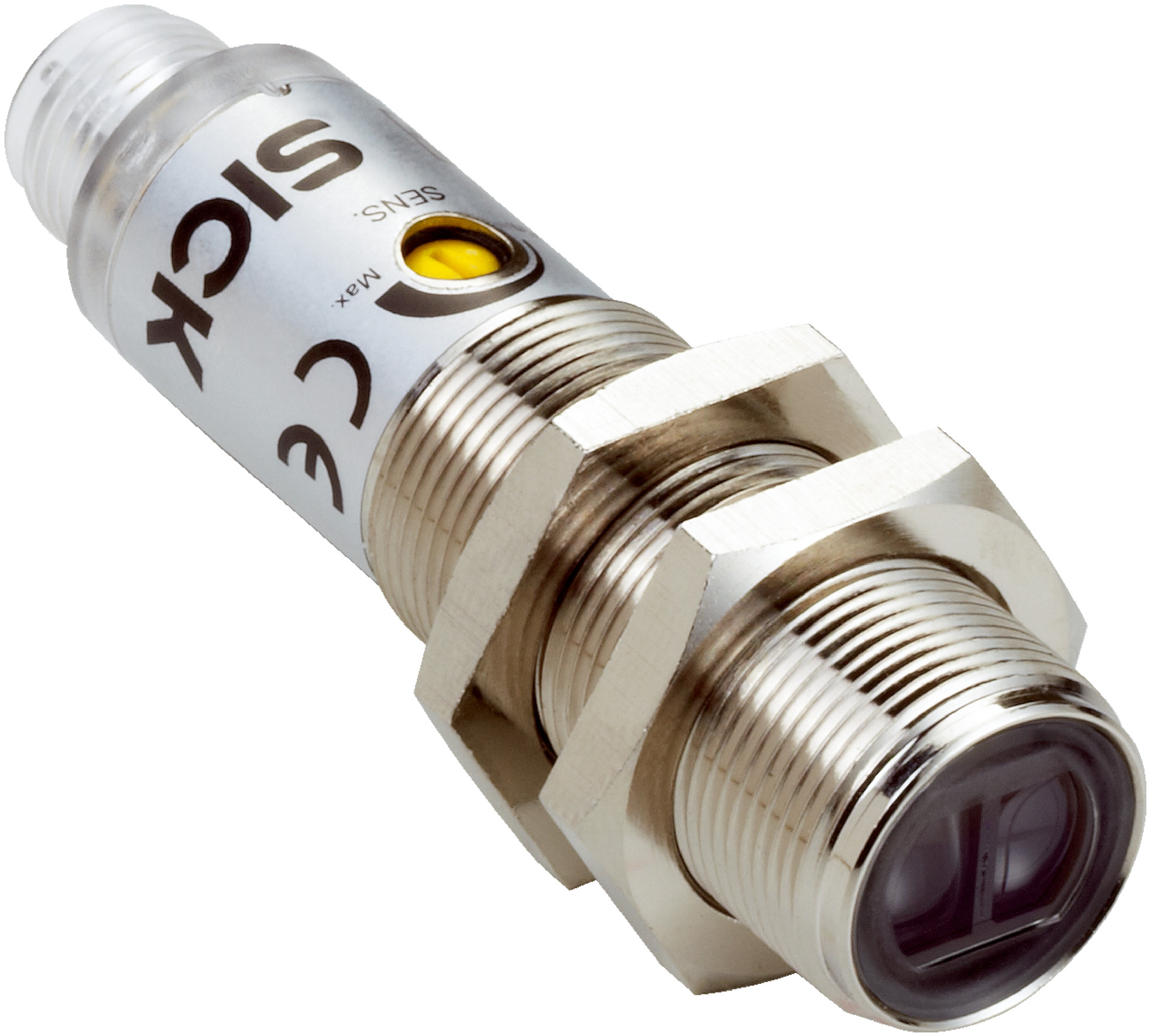

Photoelectric Proximity Sensor VTB180-2F32412 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The VTB180-2F32412 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 30 mm to 200 mm and a fast response time of ≤ 1 ms, it’s perfect for manufacturing process control and material handling. Its robust IP67 rated enclosure ensures durability in harsh environments, making it an ideal choice for robotics and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 200 mm (max 350 mm)
- Light source: Visible red LED, wavelength 632 nm
- Focus angle: Approx. 2.8°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal (nickel-plated brass) and plastic (PMMA optics)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 60mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with wavelength 632 nm
- Sensing range from 30 mm to 200 mm, max 350 mm
- Cylindrical metal housing with M18 x 1 thread diameter
- IP67 rated enclosure for dust and water protection
- Fast response time ≤ 1 ms and switching frequency up to 500 Hz
- Potentiometer adjustment with 4 turns for sensing range
- Male connector M12, 4-pin connection type
- Robust metal housing with nickel-plated brass and plastic optics
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK VTB180-2F32412 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
