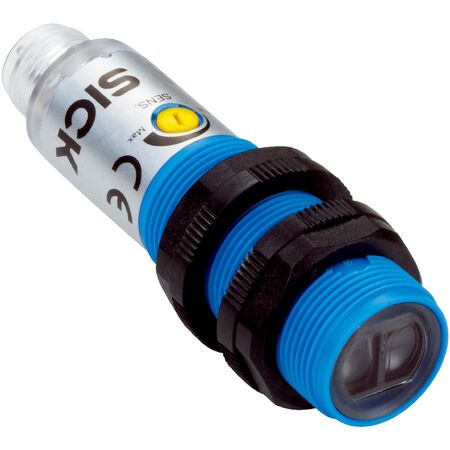

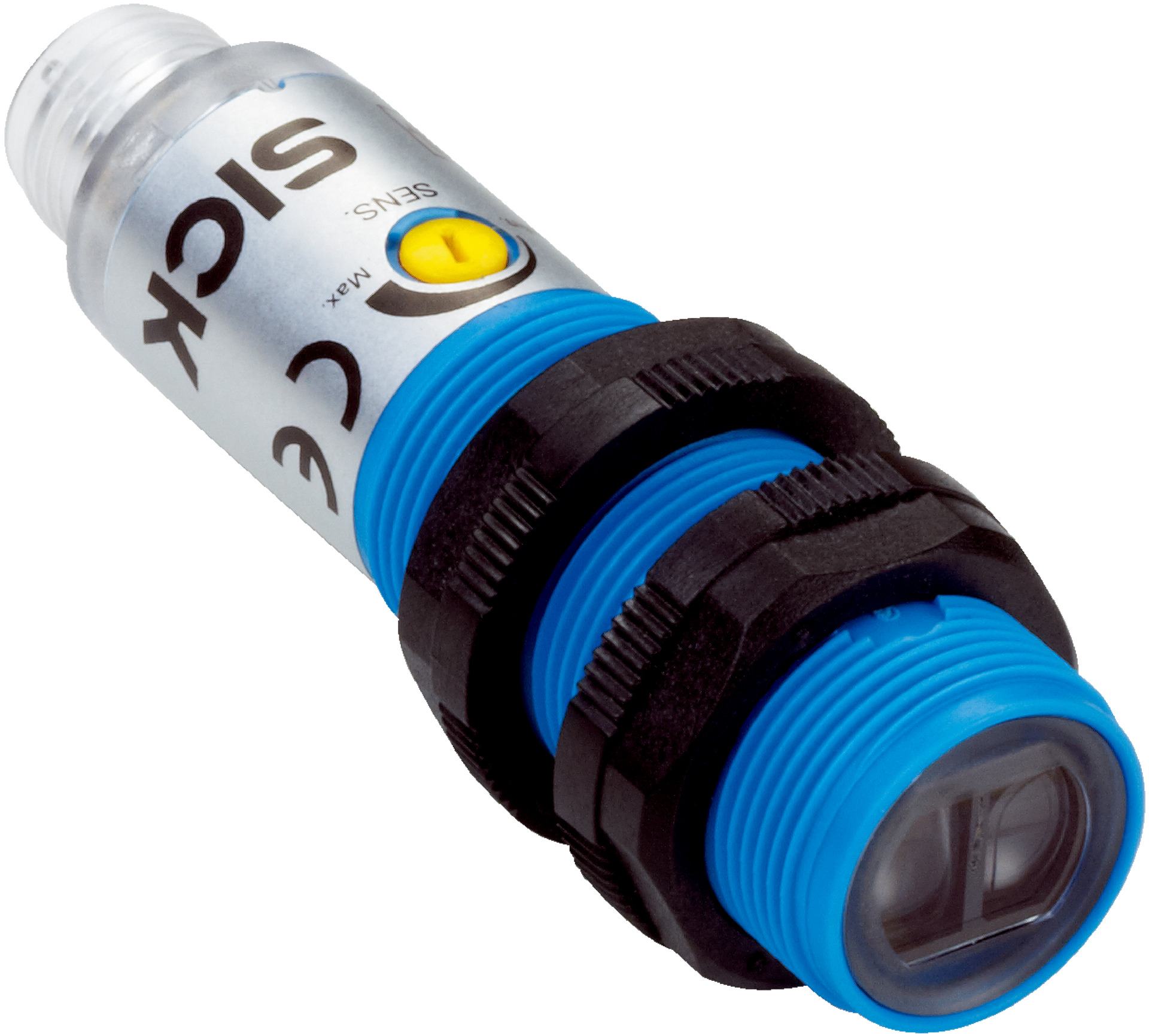

Photoelectric Proximity Sensor VTB180-2F32417 | Background Suppression | IP67 Rated | 30mm to 200mm Sensing Range | by SICK
The VTB180-2F32417 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 30 mm to 200 mm and a maximum range of 350 mm, it features a visible red LED light source and a high switching frequency of 500 Hz. Ideal for manufacturing process control and material handling, this sensor ensures reliable performance in challenging environments with its IP67 rated enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 200 mm (max 350 mm)
- Light source: Visible red LED, wavelength 632 nm
- Focus angle: Approx. 2.8°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with wavelength 632 nm
- Sensing range from 30 mm to 200 mm, max up to 350 mm
- Cylindrical housing design with M18 x 1 thread diameter
- Potentiometer adjustment with 4 turns for sensing range
- High switching frequency of 500 Hz and response time ≤ 1 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 35 mA current draw
- Durable plastic housing reduces material waste
- Long service life with MTTFD of 461 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTB180-2F32417 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
