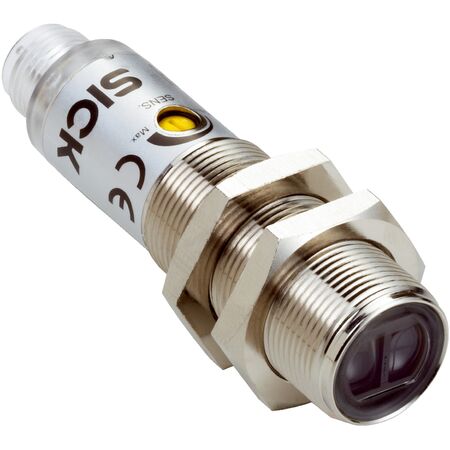

Photoelectric Proximity Sensor VTB180-2N42412 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The VTB180-2N42412 photoelectric proximity sensor is designed for industrial automation, featuring background suppression and a sensing range of 30 mm to 200 mm, extending up to 350 mm. With a fast response time of ≤ 1 ms and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for manufacturing process control and material handling systems, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 200 mm (max 350 mm)
- Light source: Visible red LED, wavelength 632 nm
- Focus and angle of dispersion: Approx. 2.8°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 35 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via control cable
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal (nickel-plated brass) and plastic (PMMA)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with wavelength 632 nm
- Sensing range from 30 mm to 200 mm, max up to 350 mm
- Cylindrical metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Fast response time ≤ 1 ms and switching frequency up to 500 Hz
- Selectable light/dark switching mode via control cable
- Connection via male M12, 4-pin connector
- Potentiometer adjustment with 4 turns for sensing range
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VTB180-2N42412 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
