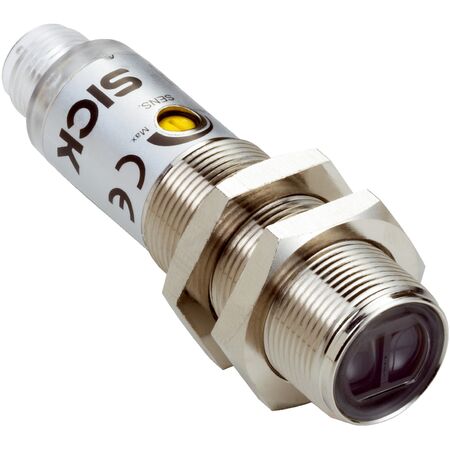

Photoelectric Proximity Sensor VTB180-2P42412 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor VTB180-2P42412 is designed for precise object detection in industrial automation, featuring a sensing range of 30 mm to 200 mm and a fast response time of ≤ 1 ms. With an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 30 mm to 200 mm (max 350 mm)
- Light source: Visible red LED, wavelength 632 nm
- Focus and angle of dispersion: Approx. 2.8°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 35 mA
- Switching output: PNP, light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Housing material: Nickel-plated brass and polycarbonate
- Optics material: PMMA plastic
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with wavelength 632 nm
- Sensing range from 30 mm to 200 mm, max 350 mm
- Cylindrical metal housing with M18 x 1 thread
- IP67 rated for dust and water protection
- Fast response time ≤ 1 ms and switching frequency 500 Hz
- Selectable light/dark switching mode via control cable
- Potentiometer adjustment with 4 turns for sensing range
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTB180-2P42412 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
