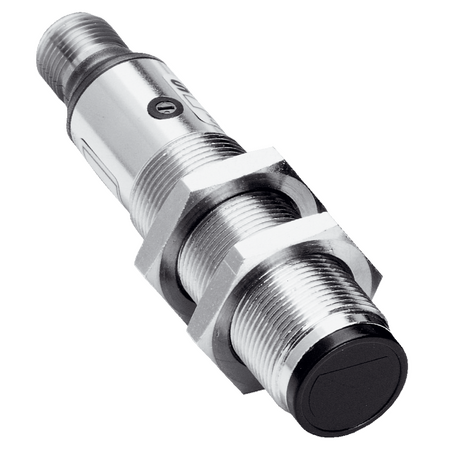

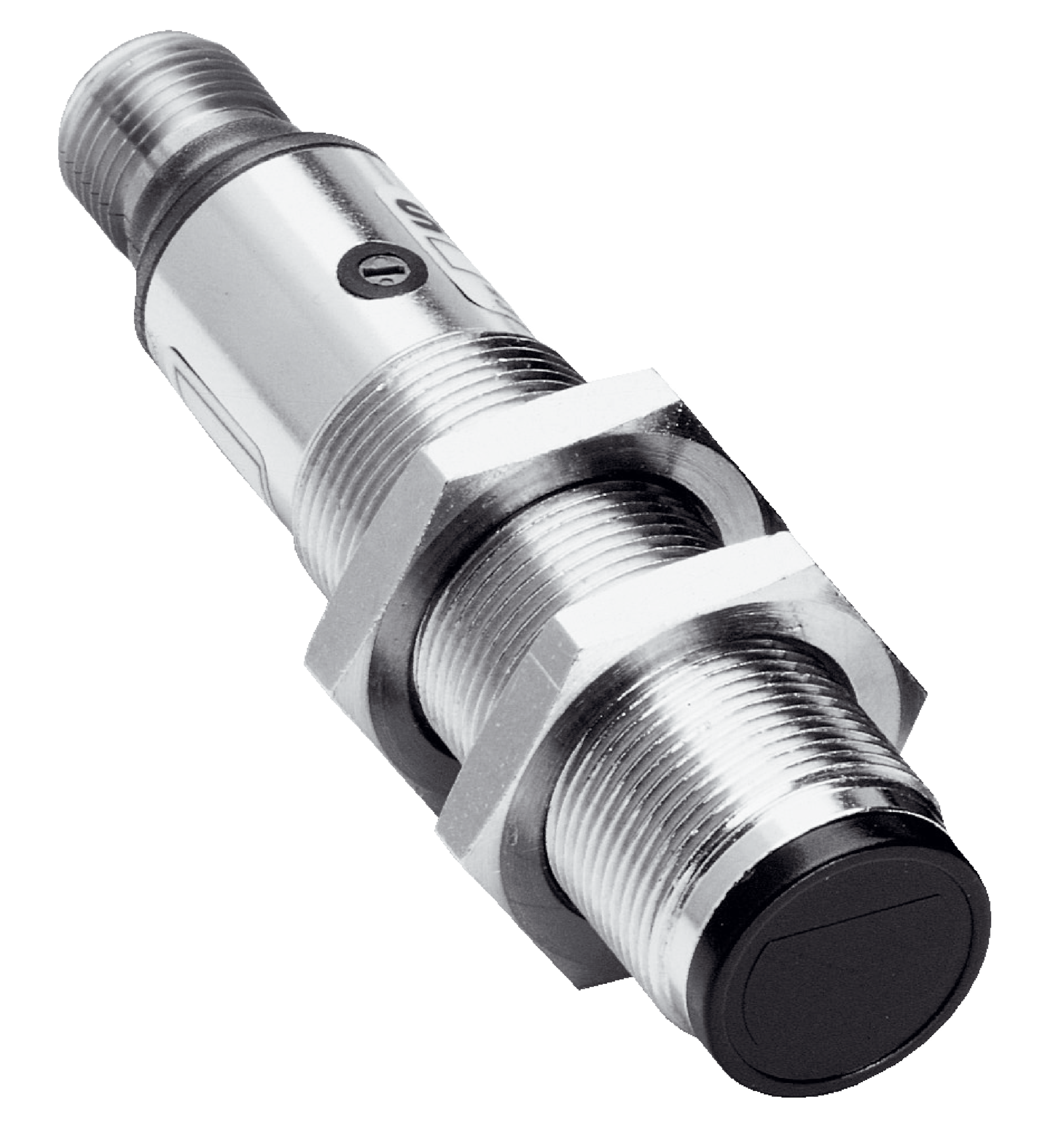

Photoelectric Proximity Sensor VTE18-3F4140 | IP67 Rated | Infrared LED | Fast Response Time | by SICK
The VTE18-3F4140 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 5 mm to 350 mm and an infrared LED light source. With an IP67 rating for dust and water protection, this sensor ensures reliable performance in manufacturing and safety applications, making it ideal for object detection and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor, Infrared sensor, PNP sensor, Industrial sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 5 mm to 350 mm (max 400 mm)
- Light source: Infrared LED
- Focus and angle of dispersion: Approx. 2.8°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 5 mm to 350 mm, max 400 mm
- Infrared LED light source with approx. 2.8° focus and angle of dispersion
- Cylindrical metal housing with nickel-plated brass
- IP67 rated enclosure for dust and water protection
- Fast response time ≤ 2 ms and switching frequency of 250 Hz
- PNP switching output with max output current ≤ 100 mA
- Male M12 4-pin connector for easy connection
- Wide operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE18-3F4140 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
