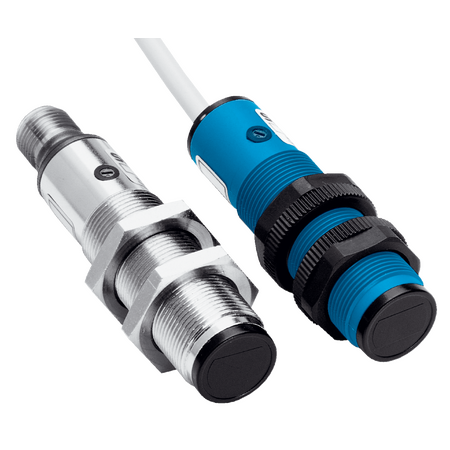

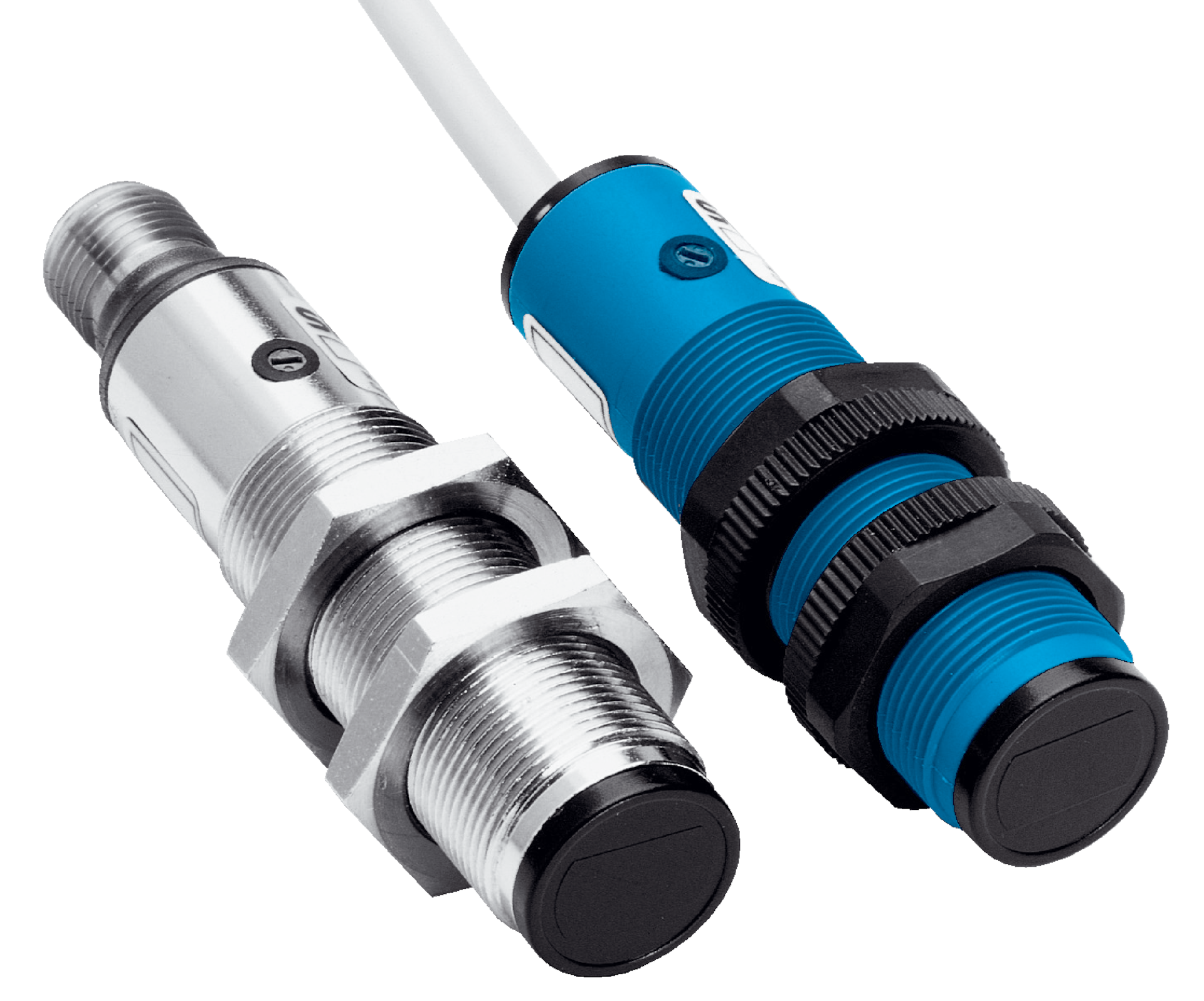

Photoelectric Proximity Sensor VTE18-3F4740 | IP67 Rated | Infrared LED | PNP Output | by SICK
The VTE18-3F4740 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 5 mm to 350 mm and a robust IP67-rated housing, it ensures reliable performance in challenging environments. Featuring a fast response time of ≤ 2 ms and a PNP output, this sensor is perfect for material handling and safety applications, making it an essential tool for any manufacturing setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor M18, Infrared proximity sensor, PNP photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 5 mm to 350 mm (max 400 mm)
- Light source: Infrared LED
- Focus and angle of dispersion: Approx. 2.8°
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 5 mm to 350 mm, max 400 mm
- Infrared LED light source with approx. 2.8° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from -25 °C to +70 °C
- Fast response time ≤ 2 ms and switching frequency 250 Hz
- PNP switching output with max output current ≤ 100 mA
- Male M12 4-pin connector for easy connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTE18-3F4740 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
