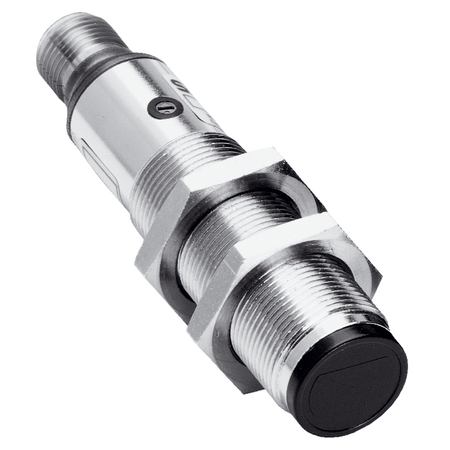

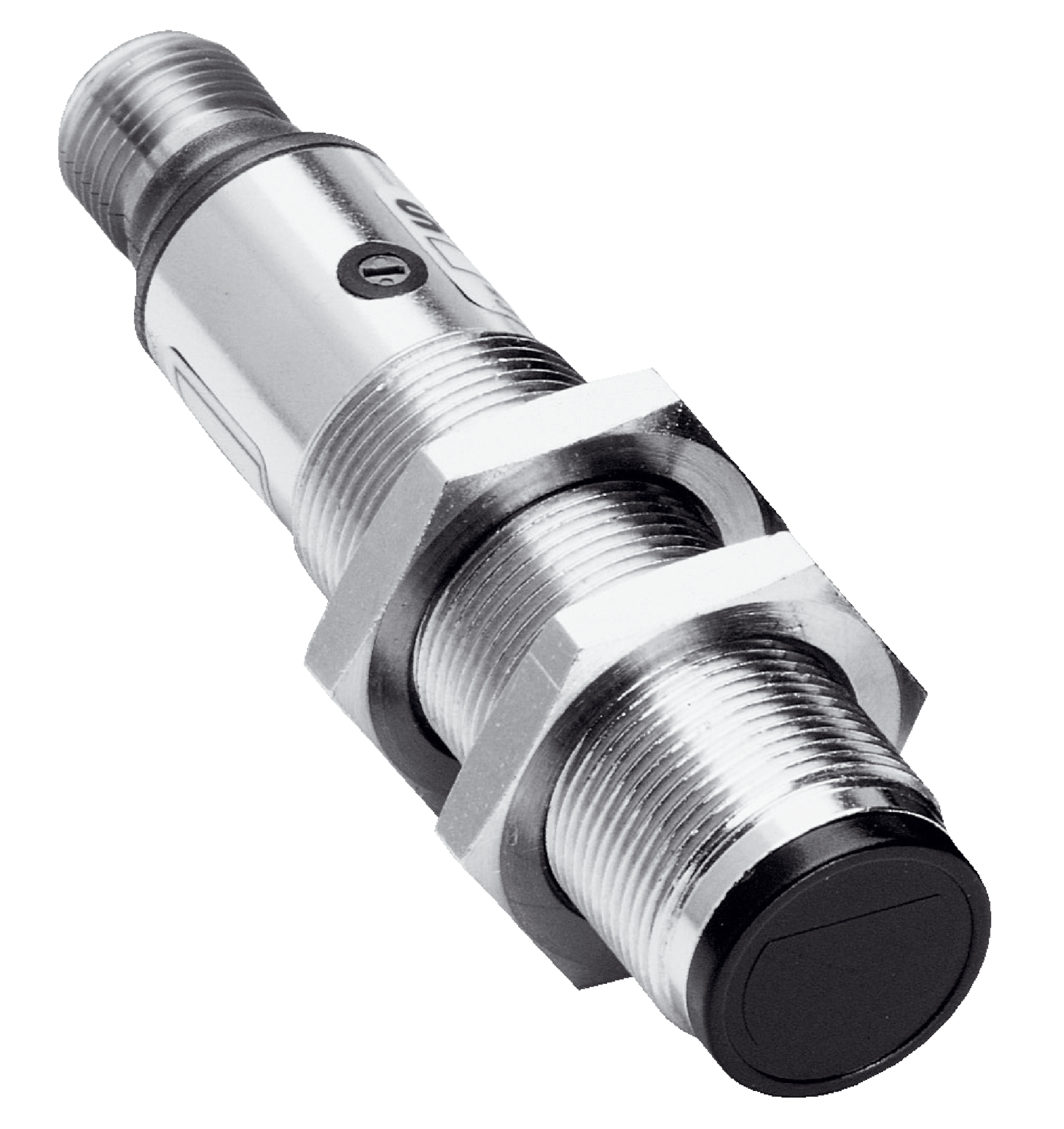

Photoelectric Proximity Sensor VTE18-4N4240 | IP67 Rated | Nickel-Plated Brass Housing | 5mm to 400mm Sensing Range | by SICK
The Photoelectric Proximity Sensor VTE18-4N4240 is designed for industrial automation, featuring a sensing range from 5mm to 400mm and a high switching frequency of 250 Hz. With an IP67 enclosure rating and durable nickel-plated brass housing, it’s perfect for harsh environments, ensuring reliable object detection in manufacturing and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor M18, Proximity sensor VTE18, Infrared proximity sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, C, D
- Protection class: III
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +70 °C
- Housing material: Nickel-plated brass
- Optics material: Plastic PMMA
- Weight: 120 g
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Cylindrical metal housing with nickel-plated brass
- Sensing range from 5 mm to 350 mm, max 400 mm
- Infrared LED light source with approx. 2.8° focus and angle of dispersion
- Selectable light/dark switching mode via control cable
- High switching frequency of 250 Hz and response time ≤ 2 ms
- Protection class III and enclosure rating IP67 for harsh environments
- Connection via male M12, 4-pin connector
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper wiring and configuration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
- Safety and security systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTE18-4N4240 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
