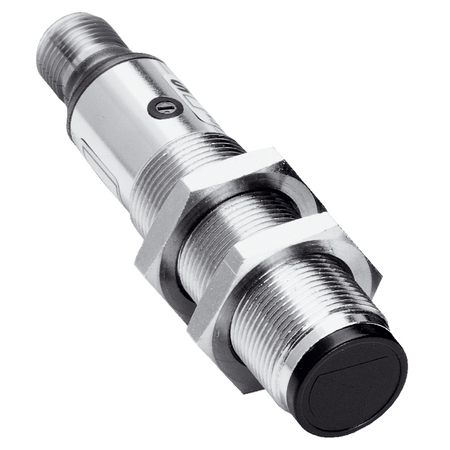

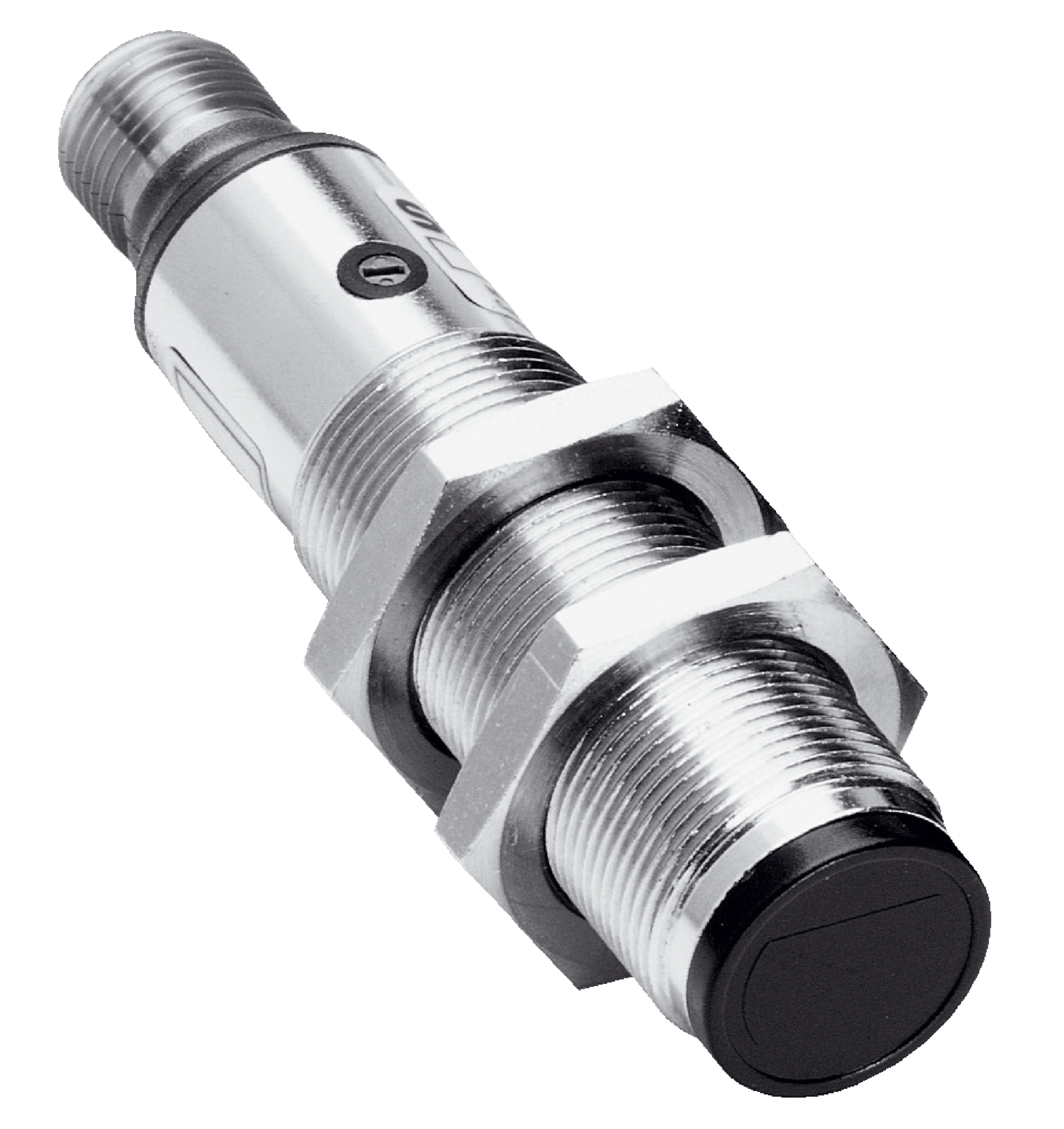

Photoelectric Proximity Sensor VTE18-4P2240 | IP67 Rated | Fast Response Time | Robust Metal Housing | by SICK
The VTE18-4P2240 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 3 mm to 200 mm and a fast response time of ≤ 2 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for material handling, safety monitoring, and robotics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Infrared Proximity Sensor, M18 Proximity Sensor, Industrial Object Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass
- Optics material: Plastic, PMMA
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 3 mm to 170 mm, max 200 mm
- Infrared LED light source with approx. 2.8° angle of dispersion
- Potentiometer adjustable sensing range (270°)
- Robust metal housing with nickel-plated brass
- IP67 rated enclosure for dust and water protection
- Fast response time ≤ 2 ms and switching frequency of 250 Hz
- Selectable light/dark switching mode via control cable
- Male M12 4-pin connector for easy connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTE18-4P2240 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
