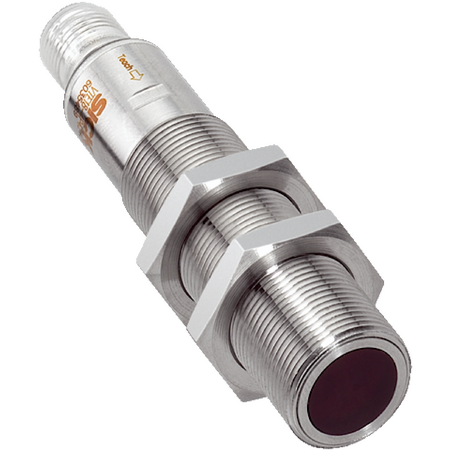

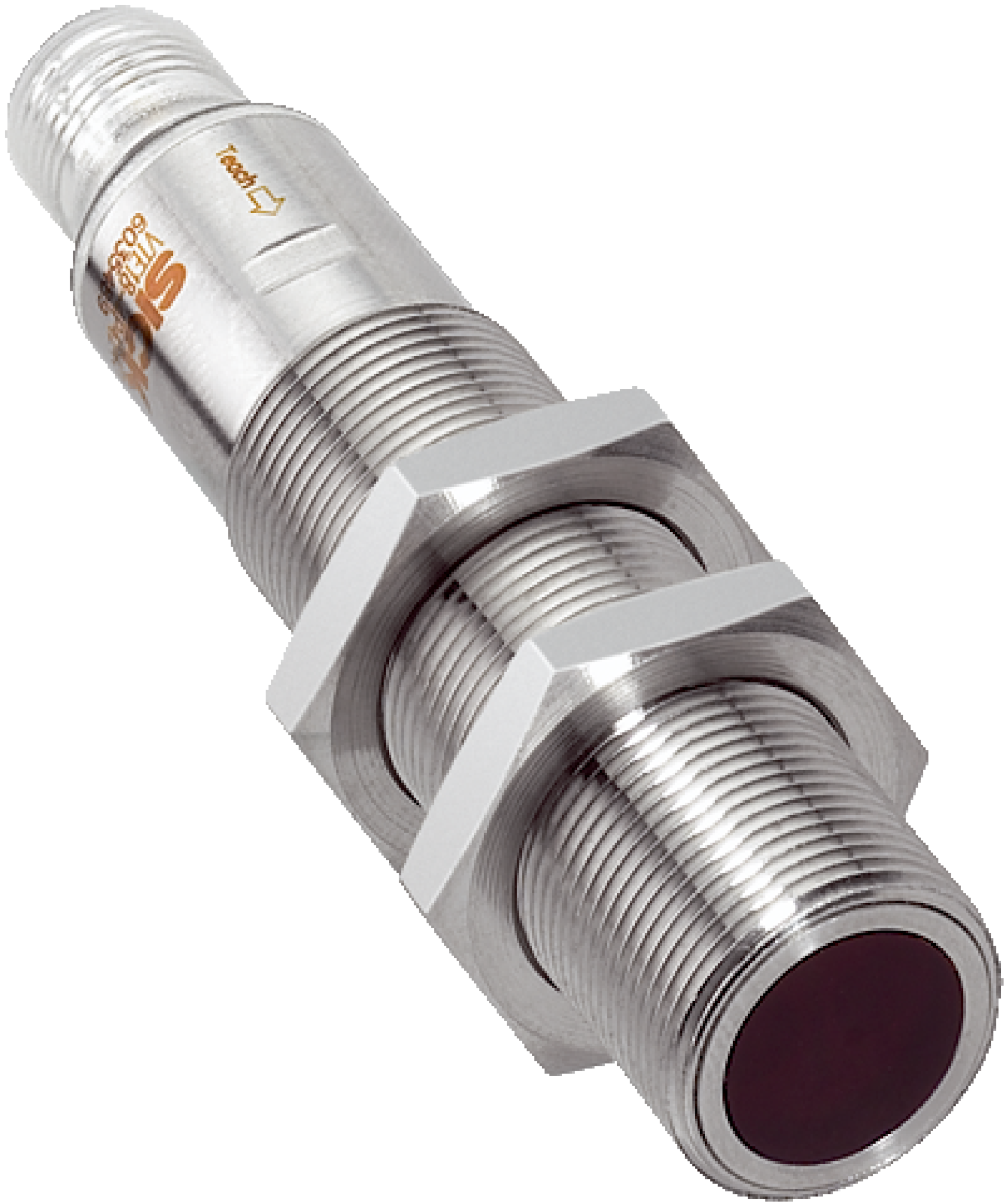

Photoelectric Proximity Sensor VTE18-4P4240V | IP67, IP68, IP69K Rated | Stainless Steel Housing | by SICK
The VTE18-4P4240V Photoelectric Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and a sensing range of 5 mm to 400 mm. With a fast response time of ≤ 1 ms and selectable light/dark switching mode, it's perfect for machine safety and process control in hygienic environments. This sensor is built to withstand harsh conditions, making it a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor, Infrared sensor, Cylindrical sensor M18, Industrial proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Signal voltage PNP HIGH/LOW: Approx. VS – 2.0 V / 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic, Plan, PPS (Grilamid)
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: –25 °C to +80 °C
- Storage temperature: –40 °C to +80 °C
- Light source: Infrared LED, wavelength 880 nm
- Focus angle: Approx. 4.5°
- Light spot size at 400 mm: Ø 60 mm
- Dimensions (H x L x W): 18mm x 83mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Cylindrical metal housing made of stainless steel V4A (1.4404, 316L)
- Sensing range from 5 mm to 400 mm, max 450 mm
- Infrared LED light source with 880 nm wavelength
- Single teach-in button for manual sensing range adjustment
- High protection rating: IP67, IP68, IP69K suitable for harsh environments
- Fast response time ≤ 1 ms and switching frequency of 500 Hz
- Selectable light/dark switching mode via control cable
- Male M12 4-pin connector for easy connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTE18-4P4240V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
