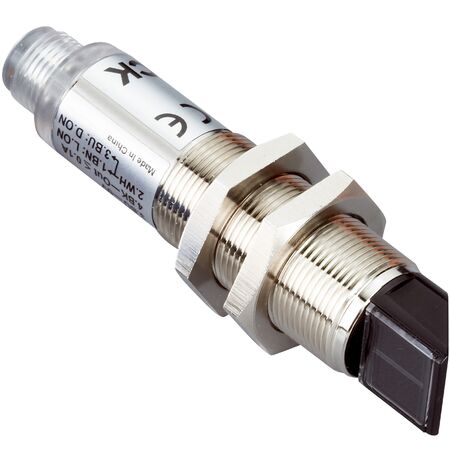

Photoelectric Proximity Sensor VTE180-2F32444 | IP67 Rated | 1000 Hz Switching Frequency | Red Light LED | by SICK
The Photoelectric Proximity Sensor VTE180-2F32444 is designed for precise object detection in industrial automation. With a sensing range of 1 mm to 400 mm and a high switching frequency of 1000 Hz, it ensures rapid response times of ≤ 0.5 ms. Built for durability with an IP67 rated enclosure, this sensor is perfect for manufacturing processes, safety monitoring, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,884 years
- Adjustment: Potentiometer, 270°
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 400 mm, max 450 mm
- Radial optical axis with approx. 1.5° focus and angle of dispersion
- Potentiometer adjustment with 270° range for sensing distance
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- Connector M12, 3-pin connection type
- Robust metal housing with nickel-plated brass and PC optics
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2F32444 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
