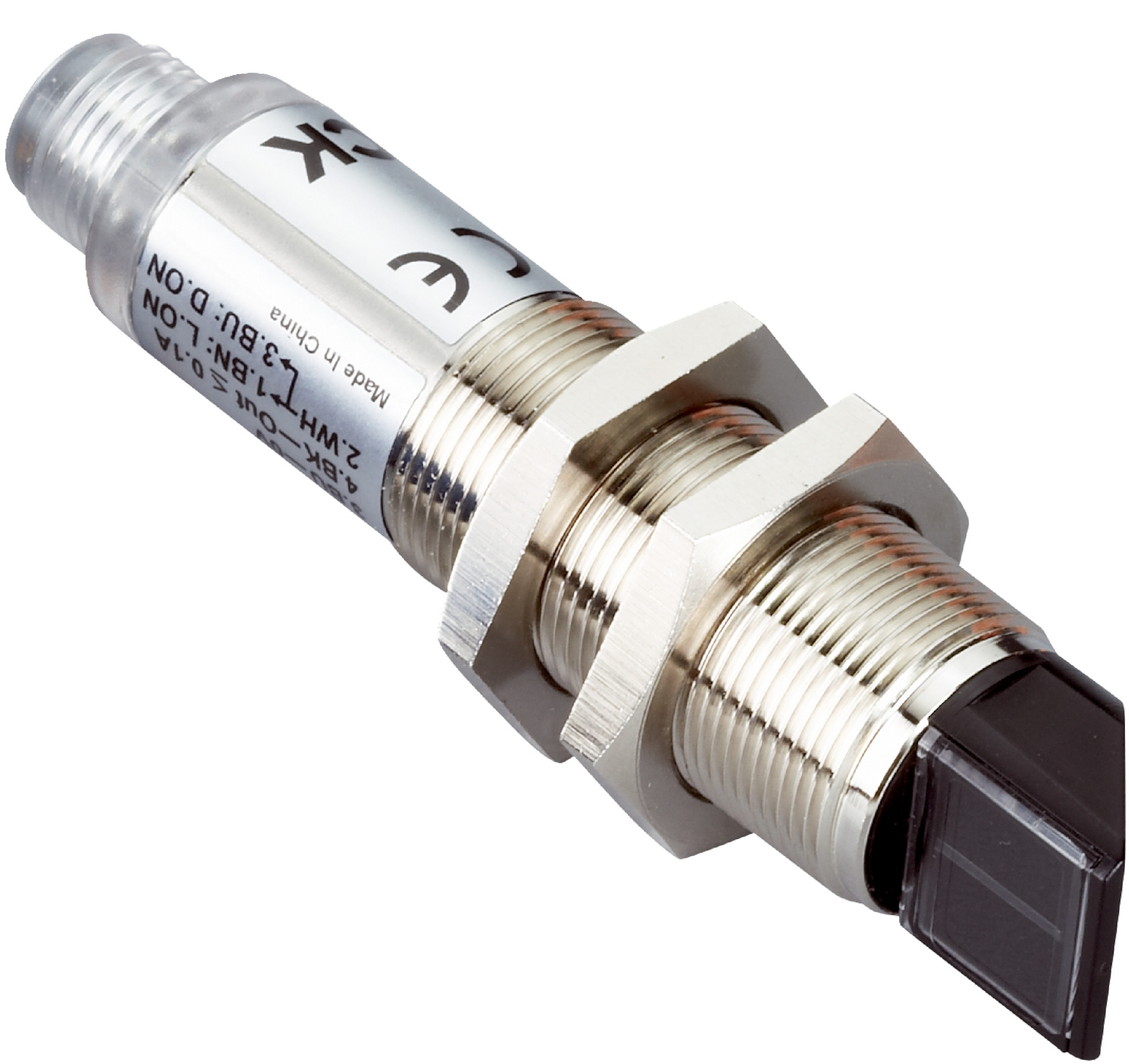

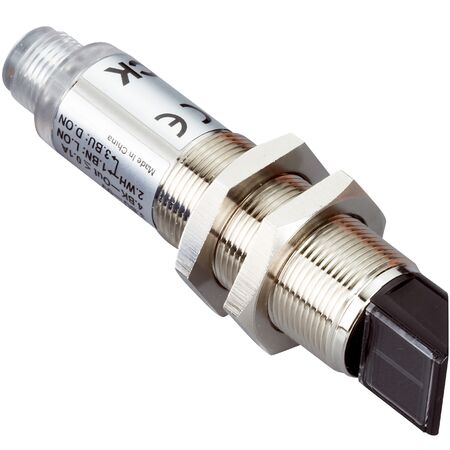

Photoelectric Proximity Sensor VTE180-2N41184 | IP67 Rated | 1 mm to 650 mm Sensing Range | NPN Output | by SICK
The VTE180-2N41184 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 1 mm to 650 mm and a high switching frequency of 1,000 Hz, it ensures reliable performance. Its robust IP67 rated enclosure protects against dust and water, making it ideal for material handling and conveyor systems in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 1 mm to 650 mm (max 900 mm)
- Light source: Visible red LED, wavelength 645 nm
- Focus and angle of dispersion: Approx. 1.2°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Metal (nickel-plated brass) and plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 76.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 650 mm (max 900 mm)
- Radial optical axis with approx. 1.2° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- NPN switching output with light/dark switching mode
- Robust metal housing with nickel-plated brass and PC optics
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK VTE180-2N41184 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
