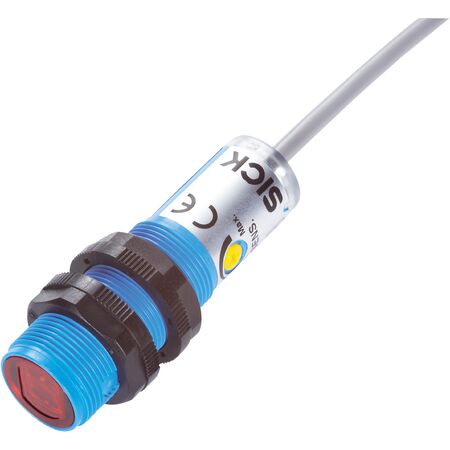

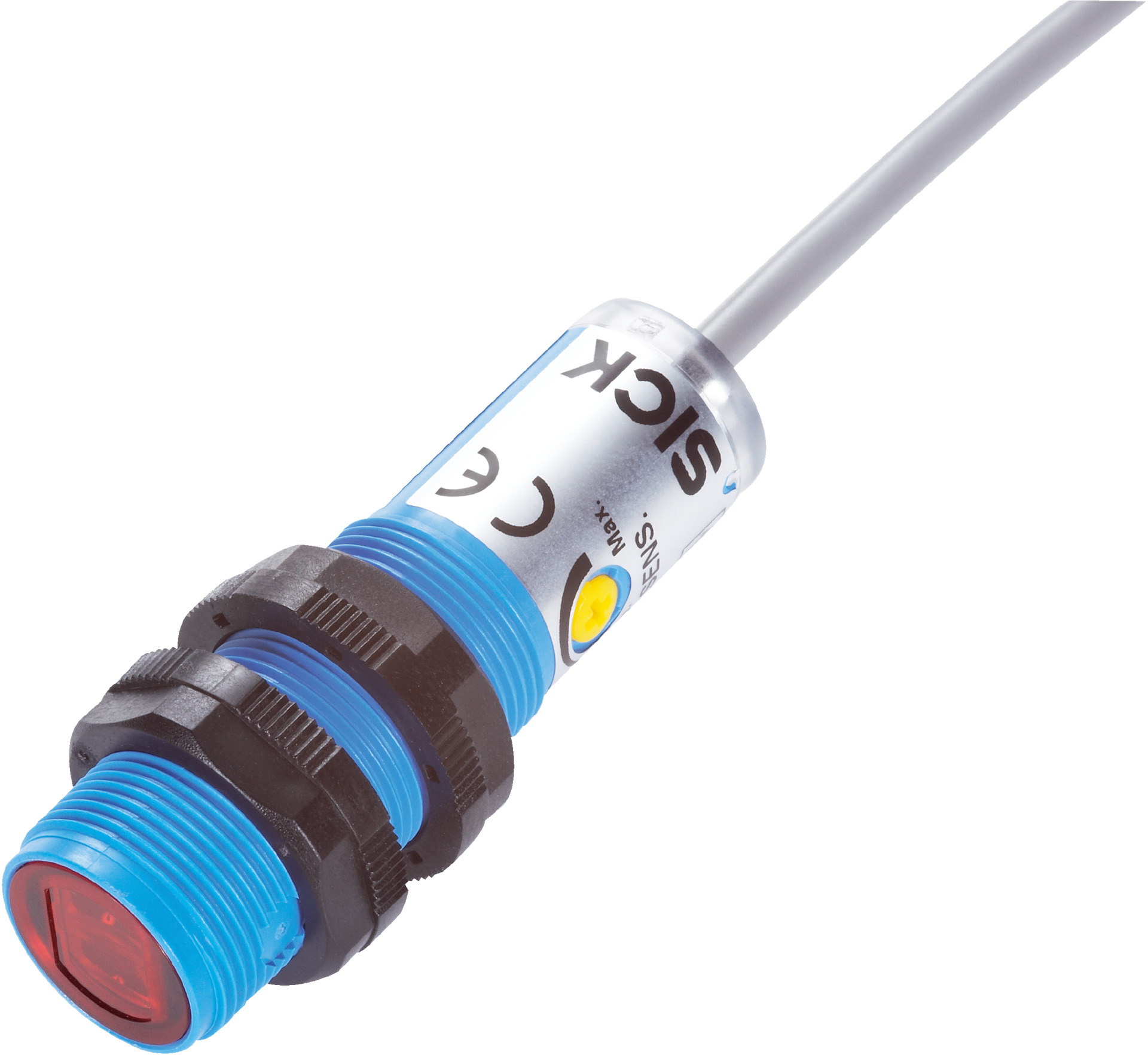

Photoelectric Proximity Sensor VTE180-2N41187 | IP67 Rated | 1000 Hz Switching Frequency | Red Light LED | by SICK
The VTE180-2N41187 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 1 mm to 1100 mm and a high switching frequency of 1000 Hz. With a robust IP67-rated housing and selectable light/dark switching mode, it's perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: 4-wire cable, 2 m length
- Cable diameter: 3.8 mm, PVC material
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1999 years
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm up to 1100 mm
- Axial optical axis with approx. 1.2° focus and angle of dispersion
- Selectable light/dark switching mode via control cable
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from -25 °C to +55 °C
- Includes fastening nuts for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2N41187 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
