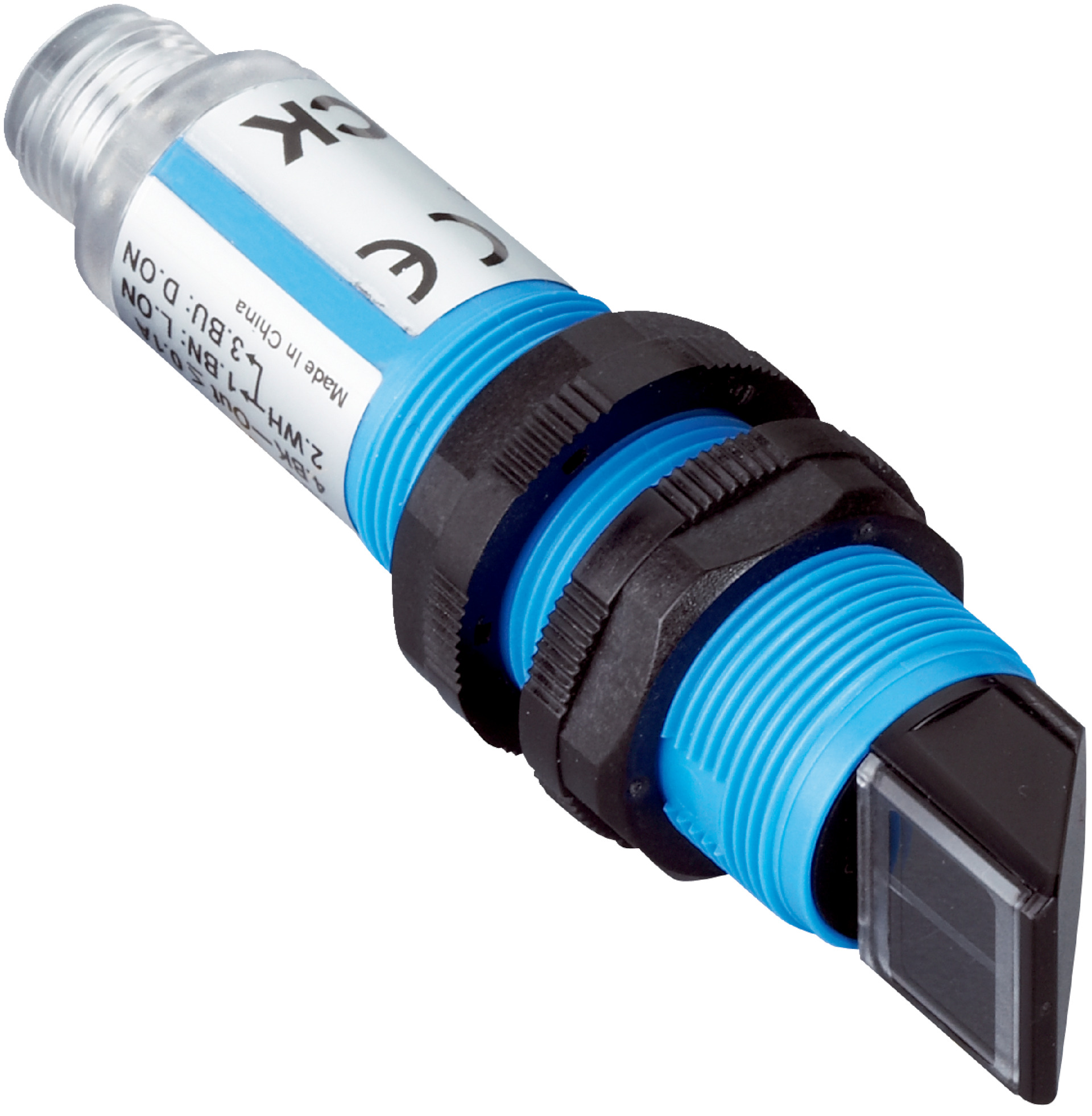

Photoelectric Proximity Sensor VTE180-2N42489 | NPN Output | IP67 Rated | 1,000 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor VTE180-2N42489 is designed for industrial automation, featuring a high switching frequency of 1,000 Hz and an NPN output for light/dark switching. With an IP67 rating for dust and water protection, this sensor operates effectively in challenging environments, making it ideal for object detection and position sensing in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 650 mm (max 900 mm)
- Radial optical axis with approx. 1.2° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- NPN switching output with light/dark switching mode
- IP67 rated enclosure for dust and water protection
- Operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Safety and monitoring in conveyor systems
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable plastic housing reduces material waste
- Long service life with MTTFD of 1,999 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTE180-2N42489 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
