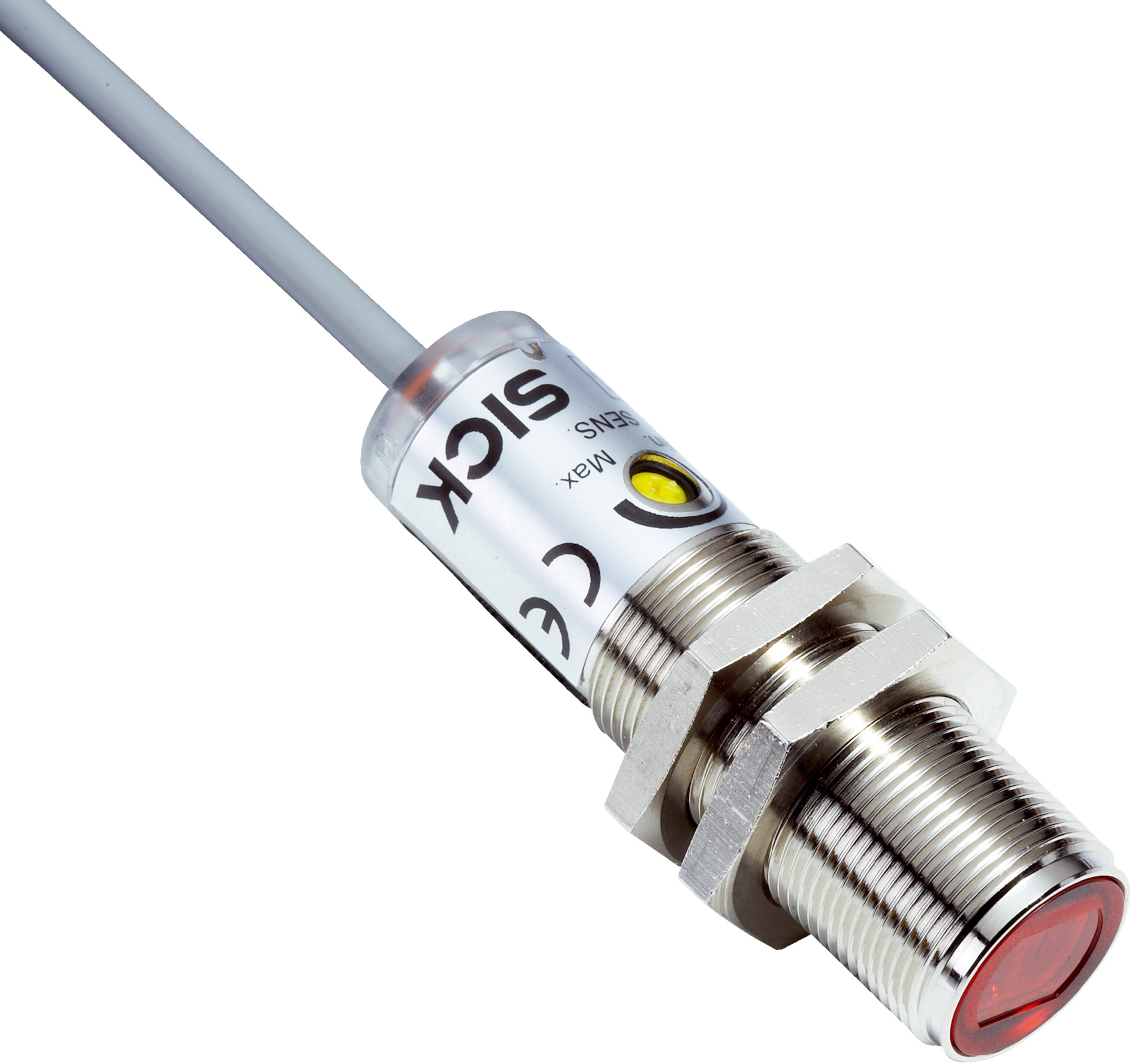

Photoelectric Proximity Sensor VTE180-2P41142 | IP67 Rated | Fast Response Time | Selectable Light/Dark Switching | by SICK
The Photoelectric Proximity Sensor VTE180-2P41142 is designed for industrial automation, featuring a sensing range of 1 mm to 350 mm and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- MTTFD: 1,883 years
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 350 mm (max 500 mm)
- Cylindrical metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode via control cable
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Supplied with fastening nuts for easy installation
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2P41142 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
