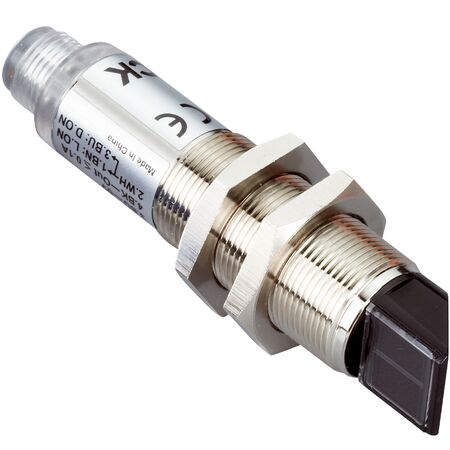

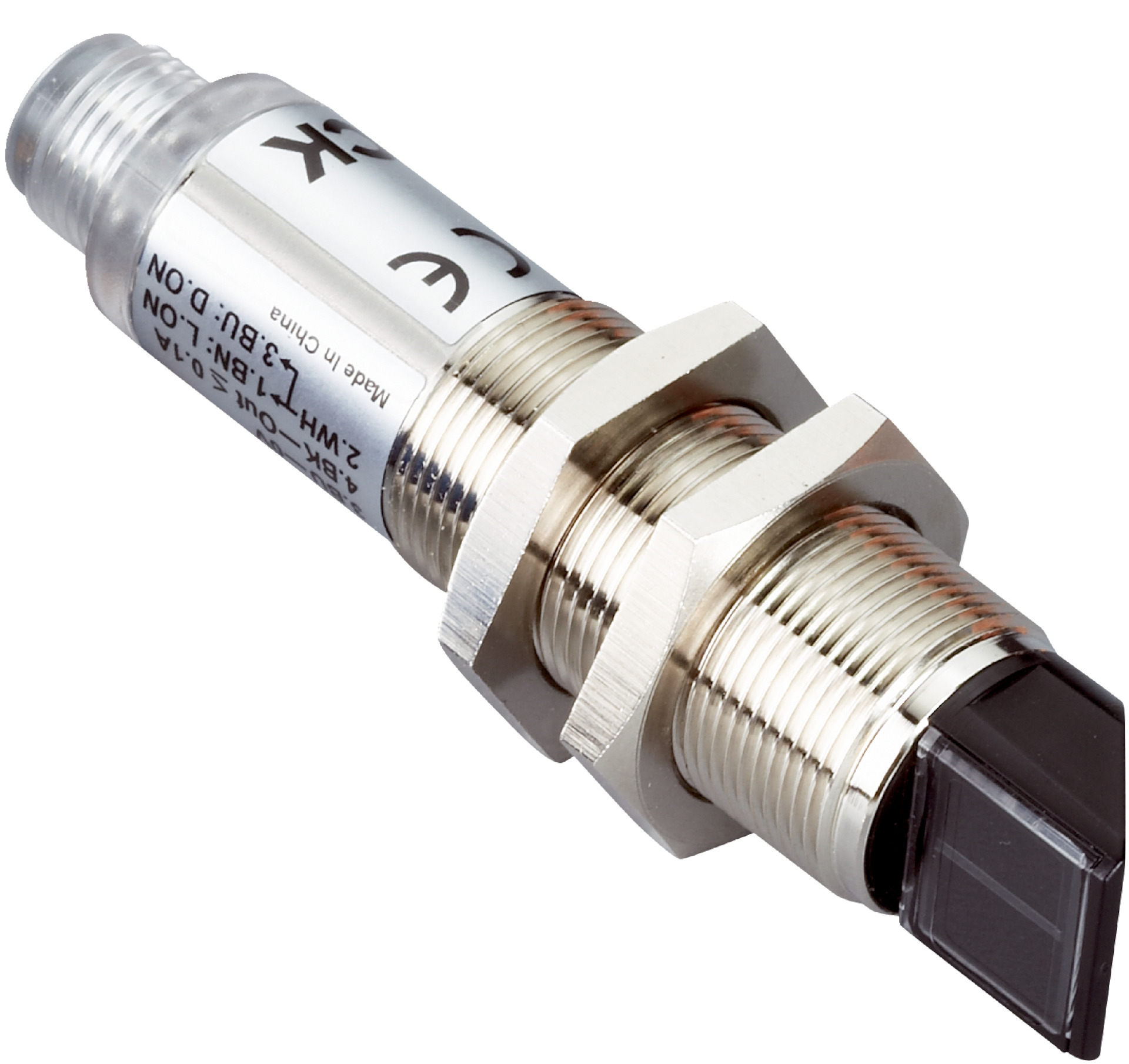

Photoelectric Proximity Sensor VTE180-2P41144 | IP67 Rated | 1,000 Hz Switching Frequency | Robust Metal Housing | by SICK
The VTE180-2P41144 Photoelectric Proximity Sensor is designed for industrial automation, featuring a high switching frequency of 1,000 Hz and a sensing range of up to 450 mm. With its robust metal housing and IP67 rating, this sensor ensures reliable performance in harsh environments, making it ideal for object detection and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Cable diameter: Ø 3.8 mm
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,884 years
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 18mm x 76.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 400 mm, max 450 mm
- Radial optical axis with approx. 1.5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- PNP switching output with light/dark switching mode
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VTE180-2P41144 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
