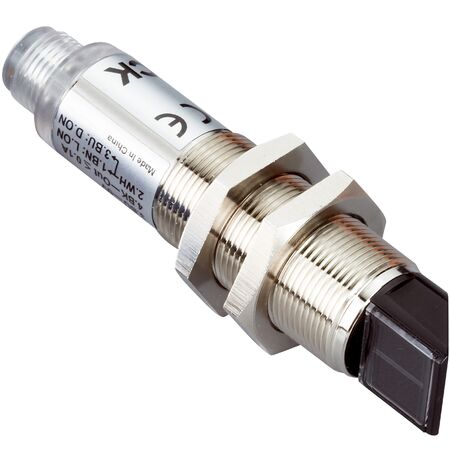

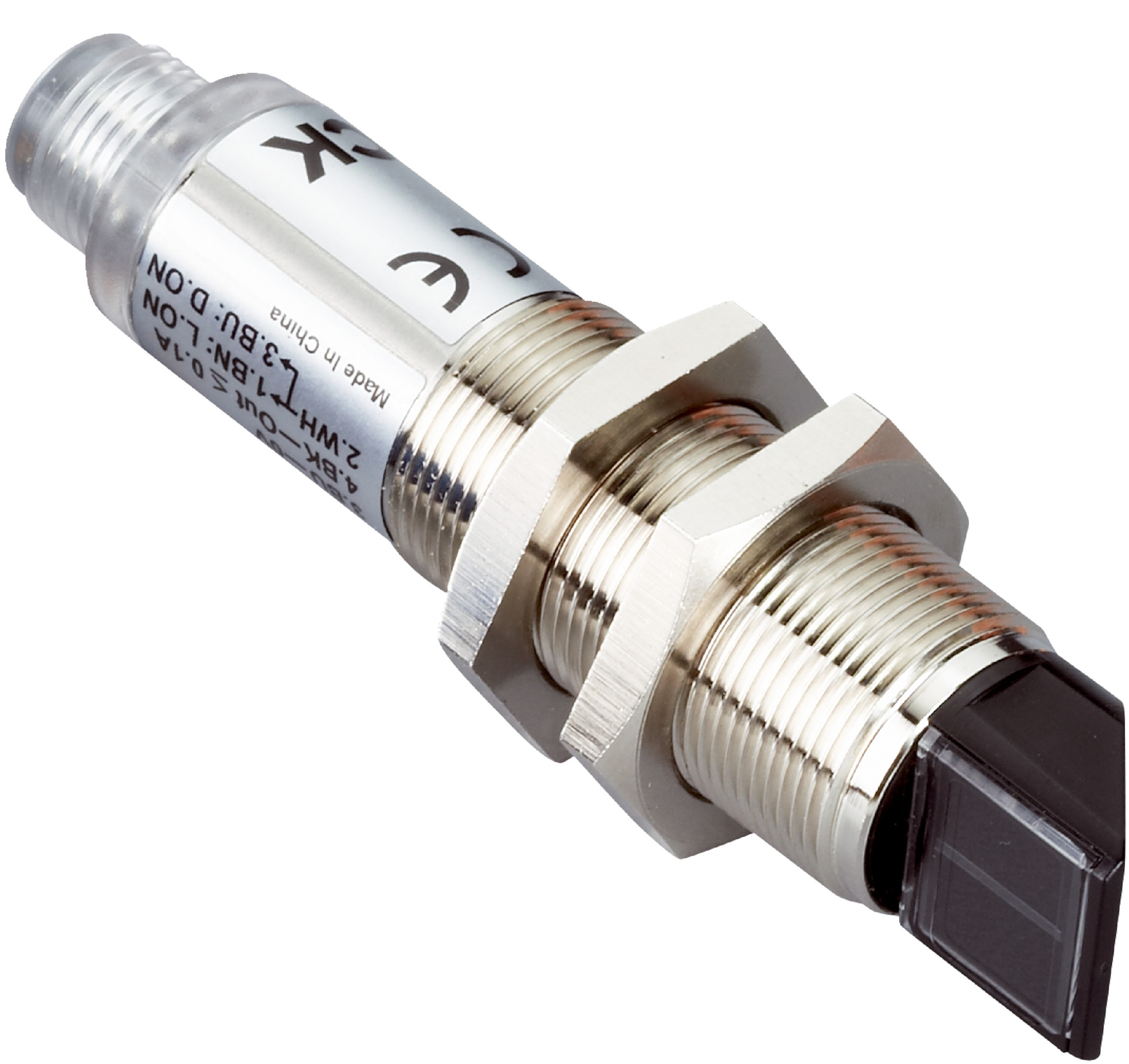

Photoelectric Proximity Sensor VTE180-2P41184 | IP67 Rated | 1,000 Hz Switching Frequency | Robust Metal Housing | by SICK
The Photoelectric Proximity Sensor VTE180-2P41184 is designed for industrial automation, featuring a sensing range of 1 mm to 900 mm and a high switching frequency of 1,000 Hz. With its robust metal housing and IP67 rating, this sensor ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with light/dark switching
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Maximum output current: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Cable diameter: Ø 3.8 mm, conductor cross section 0.18 mm²
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,884 years
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 18mm x 76.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm up to 900 mm
- Radial optical axis with approx. 1.2° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- PNP switching output with light/dark switching mode
- Robust metal housing with nickel-plated brass and PC optics
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2P41184 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
