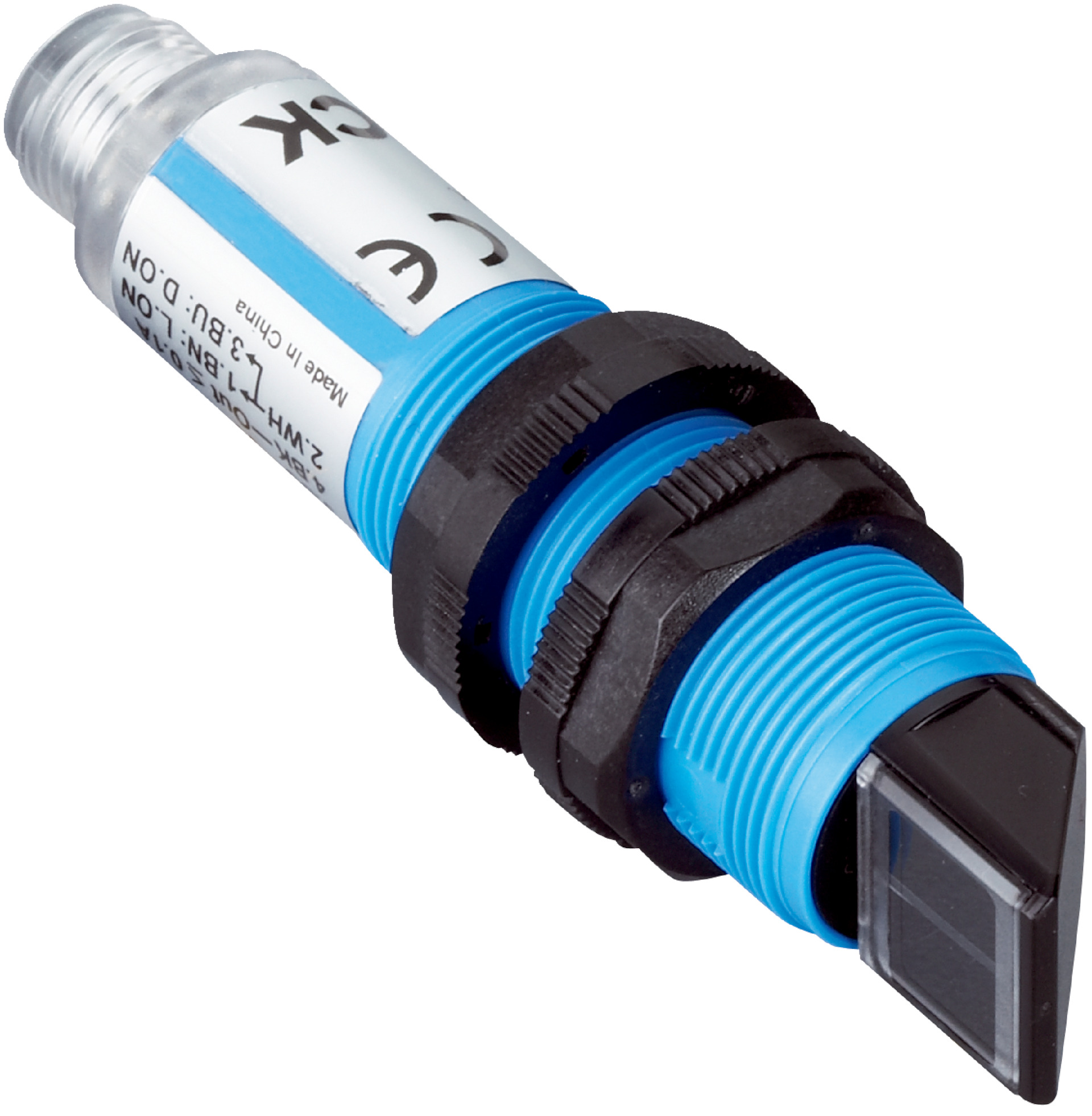

Photoelectric Proximity Sensor VTE180-2P41189 | IP67 Rated | 1 mm to 650 mm Sensing Range | PNP Output | by SICK
The VTE180-2P41189 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 1 mm to 650 mm and a robust IP67 enclosure. With a high switching frequency of 1,000 Hz and a response time of ≤ 0.5 ms, this sensor is perfect for object detection and safety monitoring in manufacturing processes. Built for reliability, it operates efficiently in temperatures from -25 °C to +55 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 1 mm to 650 mm (max 900 mm)
- Light source: Visible red LED, 645 nm wavelength
- Focus and angle of dispersion: Approx. 1.2°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Dimensions (H x L x W): 18mm x 76.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 650 mm (max 900 mm)
- Radial optical axis with approx. 1.2° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- PNP switching output with light/dark switching mode
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from -25 °C to +55 °C
- Cable connection: 4-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper sensor function and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VTE180-2P41189 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
