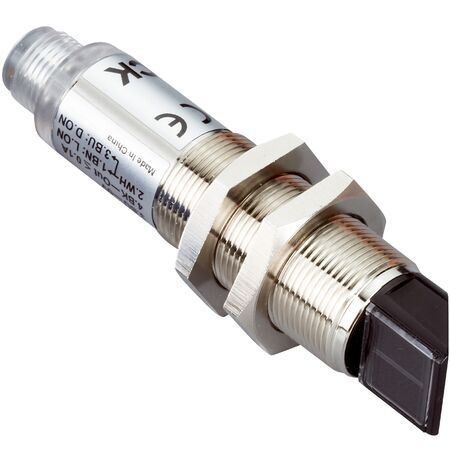

Photoelectric Proximity Sensor VTE180-2P42444 | PNP Output | IP67 Rated | 1,000 Hz Switching Frequency | by SICK
The VTE180-2P42444 Photoelectric Proximity Sensor is designed for industrial automation, featuring a PNP output and an impressive switching frequency of 1,000 Hz. With a robust IP67 rated enclosure and a sensing range of up to 450 mm, this sensor is perfect for object detection and position sensing in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 1,884 years
- Light source: LED
- Wavelength: 645 nm
- Focus: Approx. 1.5°
- Light spot size at 400 mm: Ø 20 mm
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 400 mm, max 450 mm
- Radial optical axis with approx. 1.5° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- PNP switching output with light/dark switching mode
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTE180-2P42444 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
