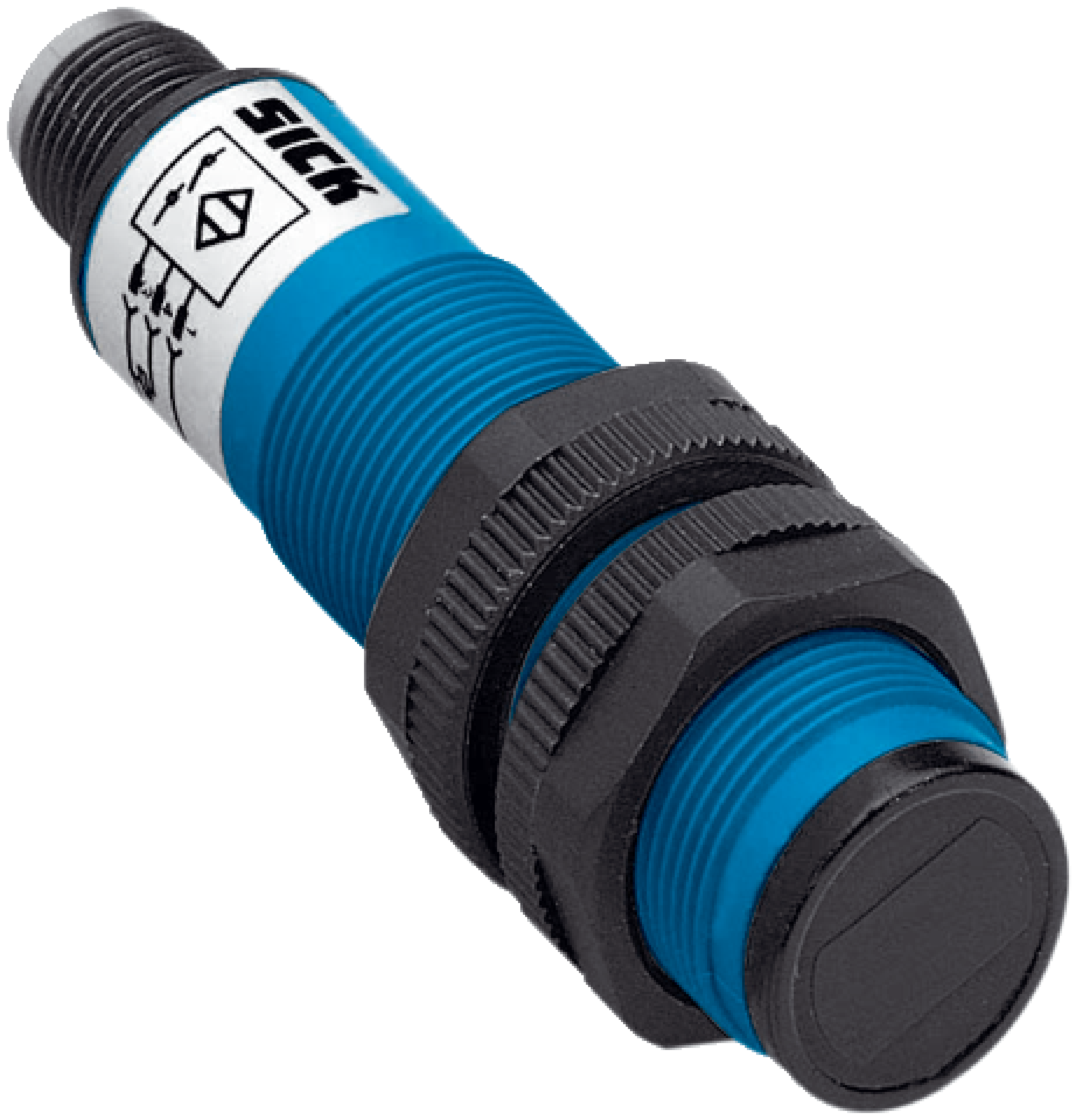

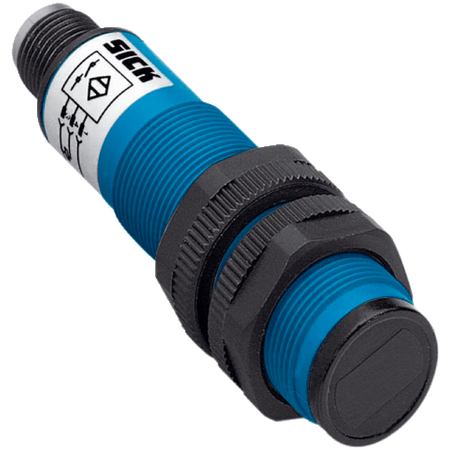

Photoelectric Proximity Sensor VTF18-3F1640 | IP67 Rated | Fast Response Time | Infrared LED | by SICK
The Photoelectric Proximity Sensor VTF18-3F1640 is designed for precise object detection in industrial automation. With a fast response time of ≤ 2 ms and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing process control and material handling, this sensor features focused optics and a sensing range of 3 mm to 90 mm, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor M18, Infrared proximity sensor, Background suppression sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: –25 °C to +70 °C
- Circuit protection: Types A, B, C, D
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking functionality
- Focused optics for precise detection
- Infrared LED light source
- Axial optical axis with a sensing range of 3 mm to 90 mm
- Cylindrical plastic housing with M18 x 1 thread
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 2 ms and switching frequency of 250 Hz
- PNP switching output with light switching mode
- Operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTF18-3F1640 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
