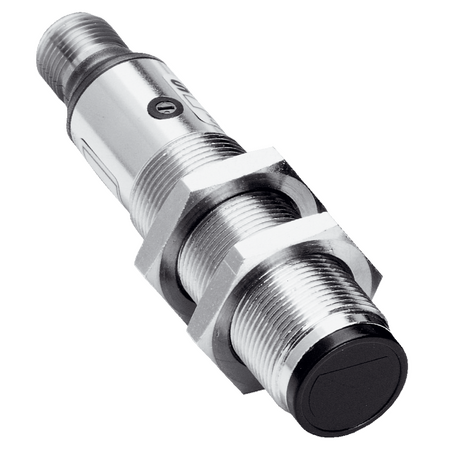

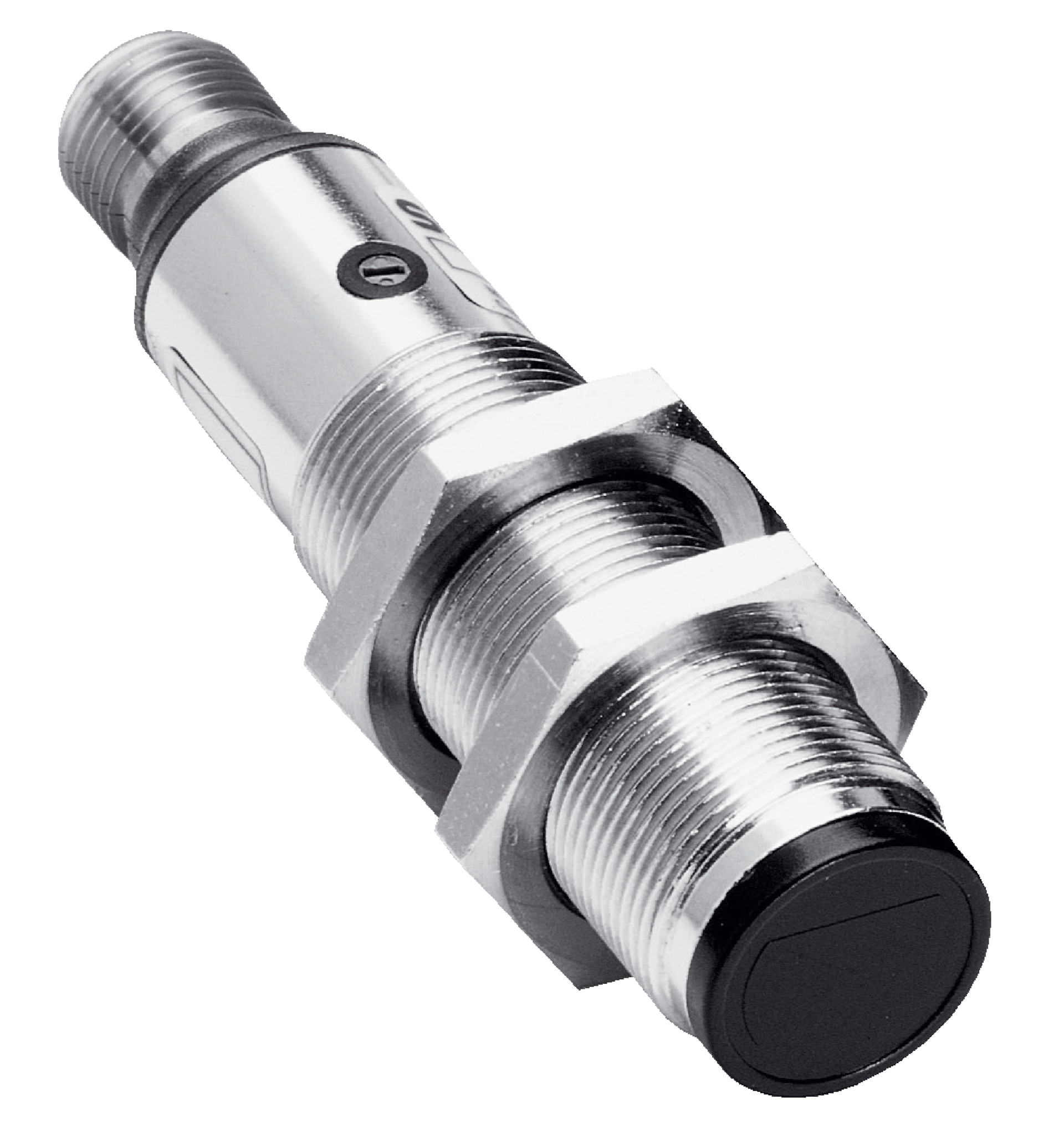

Photoelectric Proximity Sensor VTF18-4P1140 | IP67 Rated | 250 Hz Switching Frequency | Background Blanking | by SICK
The VTF18-4P1140 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a robust IP67-rated housing and a high switching frequency of 250 Hz, it excels in manufacturing process control and material handling applications. Its selectable light/dark switching mode and focused optics ensure reliable performance in various environments, making it ideal for robotics and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, Background suppression sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: 4-wire cable
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Metal, nickel-plated brass
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Focused optics for precise detection
- Axial optical axis with infrared LED light source
- Selectable light/dark switching mode via control cable
- High switching frequency of 250 Hz
- Robust metal housing with nickel-plated brass
- Protection class IP67 for dust and water resistance
- Wide ambient operating temperature range from -25°C to +70°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK VTF18-4P1140 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
