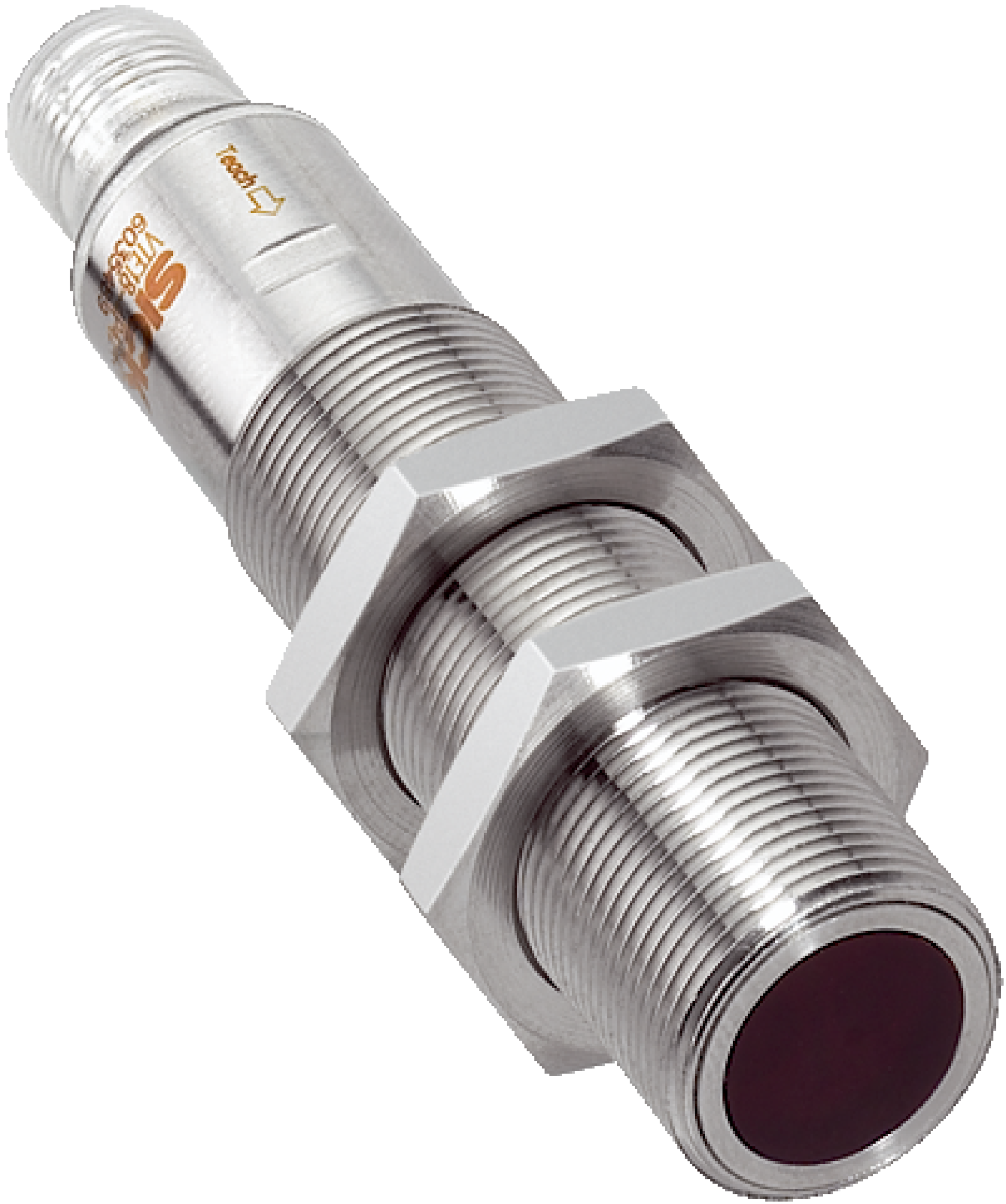

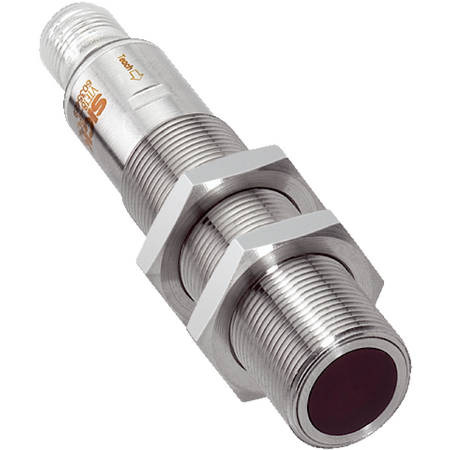

Photoelectric Proximity Sensor VTF18-4N1240V | 5mm to 100mm Sensing Range | IP67, IP68, IP69K Rated | by SICK
The VTF18-4N1240V Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 5mm to 100mm and a visible red light LED at 660nm, it ensures reliable performance in hygienic and washdown zones. Featuring a robust stainless steel housing and high protection ratings (IP67, IP68, IP69K), this sensor is built to withstand harsh environments, making it ideal for machine safety and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor M18, Proximity sensor VTF18, Red light sensor 660nm, NPN photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range: 5 mm to 100 mm, max 110 mm
- Light source: LED, visible red light, wavelength 660 nm
- Adjustment: Single teach-in button, manual via Touch-Teach-in
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 35 mA
- Switching output: NPN, light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection: Male connector M12, 4-pin
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic, Plan, PPS (Grilamid)
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25°C to +80°C
- Storage temperature: -40°C to +80°C
- Dimensions (H x L x W): 18mm x 83mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 660 nm
- Sensing range from 5 mm to 100 mm, max 110 mm
- Single teach-in button for manual sensing range adjustment
- Cylindrical stainless steel housing (M18 x 1 thread diameter)
- High protection rating: IP67, IP68, IP69K
- Operating temperature range from -25°C to +80°C
- Switching output NPN with selectable light/dark switching
- Fast response time ≤ 1 ms and switching frequency 500 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK VTF18-4N1240V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
