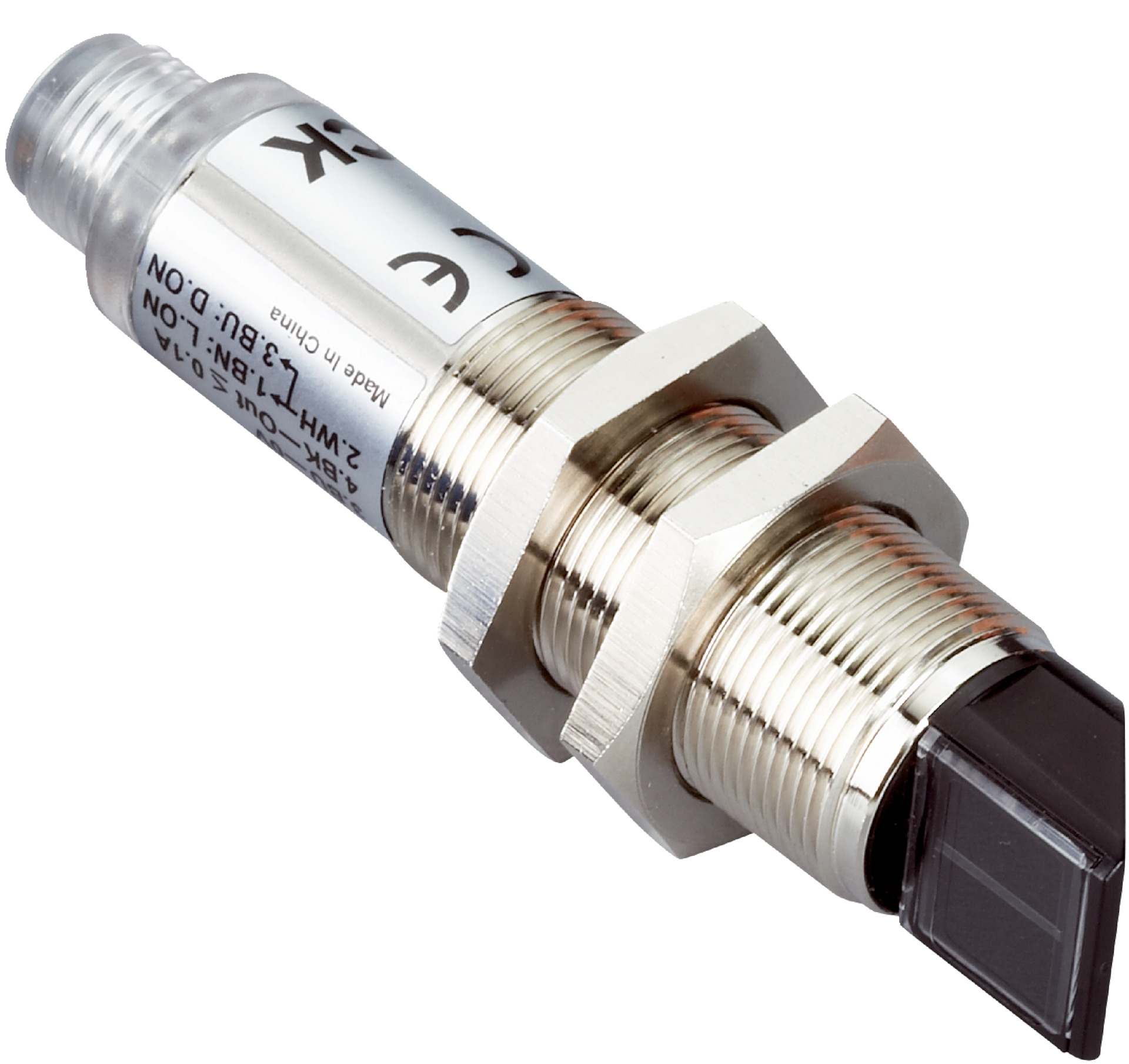

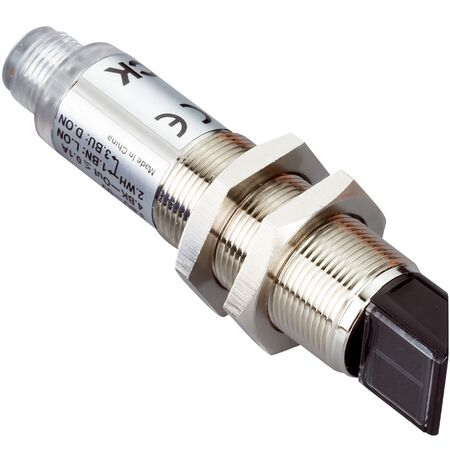

Photoelectric Proximity Sensor VTF180-2F32414 | Background Blanking | IP67 Rated | High Switching Frequency | by SICK
The Photoelectric Proximity Sensor VTF180-2F32414 is designed for industrial automation, featuring a sensing range of 1 mm to 100 mm and a high switching frequency of 1,000 Hz. With robust IP67 protection and a visible red LED light source, it ensures reliable object detection and safety monitoring in various applications, from manufacturing to robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 100 mm (max 130 mm)
- Light source: Visible red LED, wavelength 645 nm
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Connector M12, 3-pin
- Protection class: III
- Housing material: Nickel-plated brass and polycarbonate
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 83.8mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Focused optics with visible red LED light source
- Adjustable sensing range via 270° potentiometer
- Radial optical axis with cylindrical housing design
- High switching frequency of 1,000 Hz
- Robust metal housing with IP67 enclosure rating
- Connector M12, 3-pin for easy installation
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable metal housing reduces waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTF180-2F32414 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
