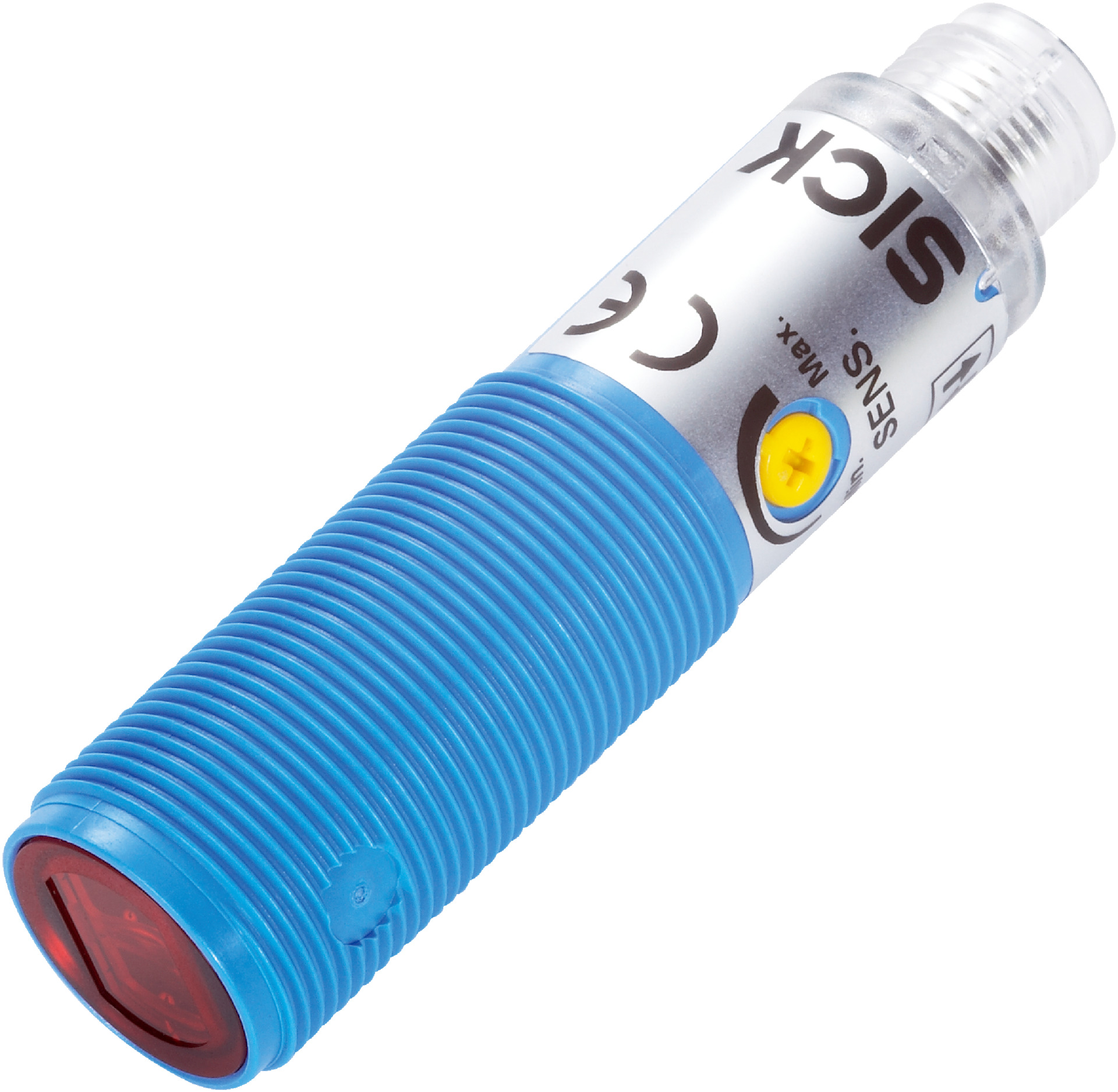

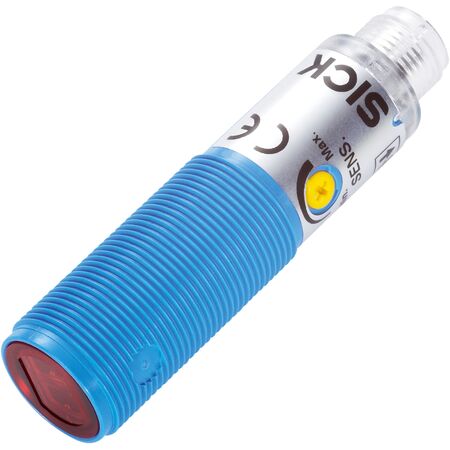

Photoelectric Proximity Sensor VTF180-2F32417 | Background Blanking | IP67 Rated | 1 mm to 100 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor VTF180-2F32417 is designed for precise object detection in industrial automation. With a sensing range of 1 mm to 100 mm and background blanking functionality, it ensures reliable performance in various applications. Featuring a robust IP67 rated housing and a high switching frequency of 1,000 Hz, this sensor is perfect for manufacturing, material handling, and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 100 mm (max 140 mm)
- Light source: LED, visible red light at 645 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Connector M12, 3-pin
- Protection class: III
- Housing material: Plastic (PBT/PC), optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Includes fastening nuts (2x)
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking functionality
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise detection
- Adjustable sensing range via 270° potentiometer
- High switching frequency of 1,000 Hz
- Robust plastic housing with IP67 enclosure rating
- Connector M12, 3-pin for easy installation
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Positioning and presence detection in manufacturing
- Material handling and conveyor systems
- Robotics and safety systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTF180-2F32417 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
