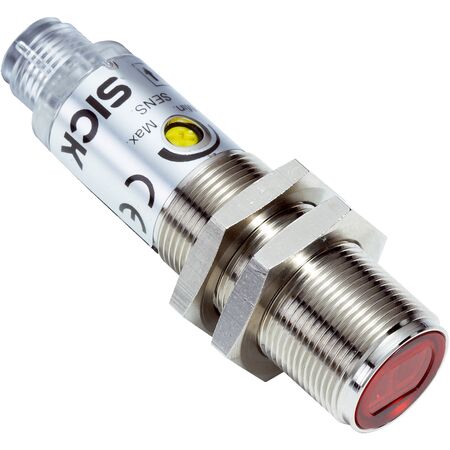

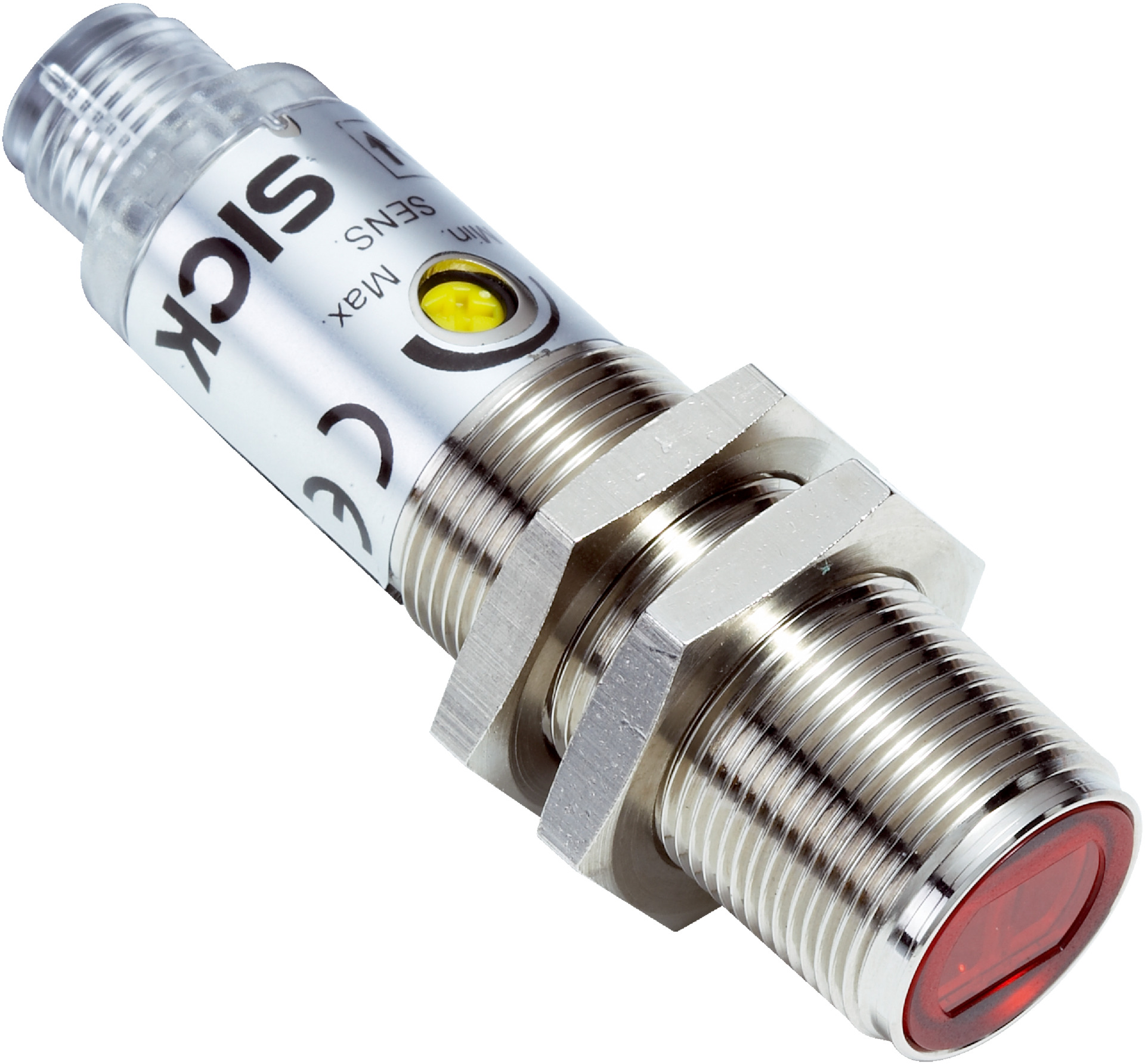

Photoelectric Proximity Sensor VTF180-2N42412 | IP67 Rated | Adjustable Sensing Range | Fast Response Time | by SICK
The VTF180-2N42412 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 1 mm to 140 mm and a fast response time of ≤ 0.5 ms, it’s perfect for manufacturing process control and material handling. Its IP67 rating ensures durability against dust and water, making it a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 140 mm (adjustable)
- Light source: LED, visible red light, wavelength 645 nm
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 47 g
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Visible red light LED with wavelength 645 nm
- Focused optics for precise detection
- Adjustable sensing range via potentiometer (1 mm to 140 mm)
- Cylindrical metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Fast response time ≤ 0.5 ms and switching frequency up to 1000 Hz
- Selectable light/dark switching mode via control cable
- Connection via male M12, 4-pin connector
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable metal housing extends product life reducing waste
- IP67 rating ensures protection against dust and water, minimizing environmental damage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK VTF180-2N42412 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
