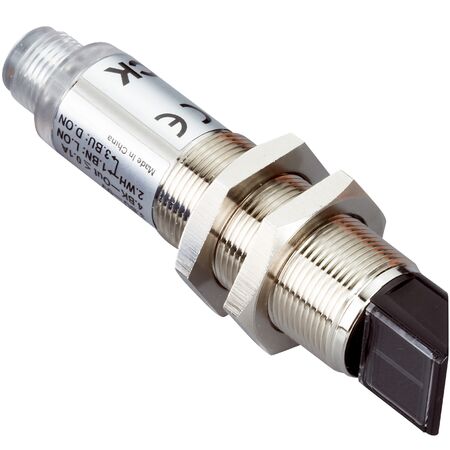

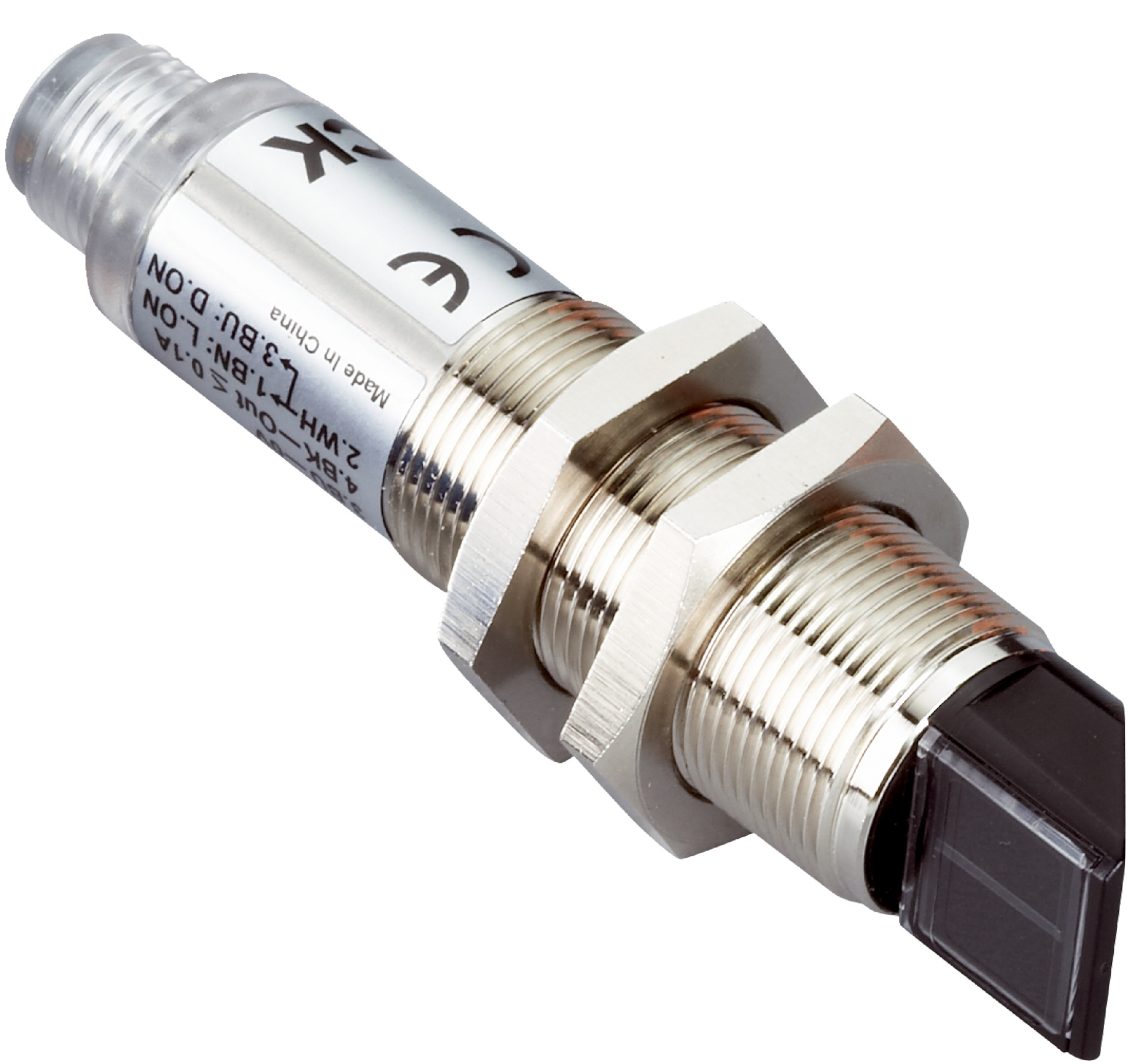

Photoelectric Proximity Sensor VTF180-2N42414 | IP67 Rated | 1 mm to 100 mm Sensing Range | 1000 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor VTF180-2N42414 is designed for precise object detection in industrial automation. With a sensing range of 1 mm to 100 mm and a high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing and safety applications. Its IP67 rating provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 1 mm to 100 mm (max 130 mm)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Nickel-plated brass and polycarbonate
- Optics material: PMMA plastic
- Ambient operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise detection
- Potentiometer adjustable sensing range (270°)
- Radial optical axis with cylindrical housing design
- High switching frequency of 1,000 Hz
- IP67 rated for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and presence detection in machinery
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable metal housing extends product lifespan reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTF180-2N42414 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
