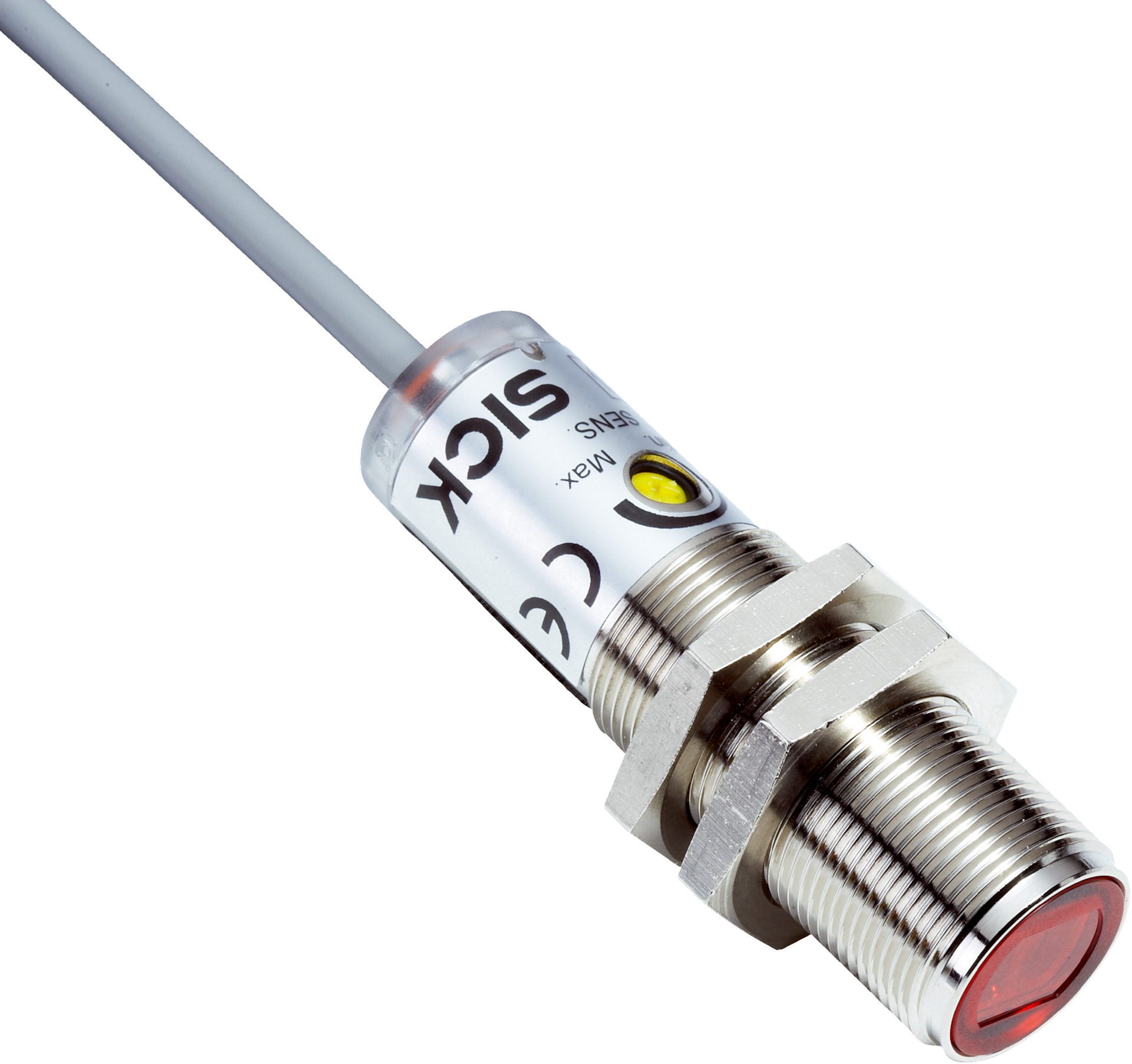

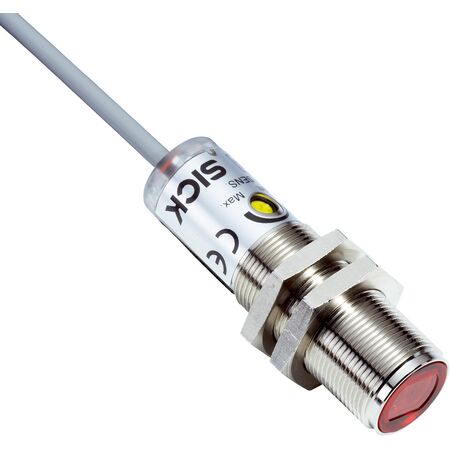

Photoelectric Proximity Sensor VTF180-2P41112 | Background Blanking | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor VTF180-2P41112 is designed for precise object detection in industrial automation. With a sensing range of 1 mm to 100 mm and a high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing and material handling applications. Its robust IP67 rated enclosure protects against dust and water, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 100 mm (max 140 mm)
- Light source: Visible red LED, 645 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control cable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Metal (nickel-plated brass) and plastic (PMMA optics)
- Weight: 95 g
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking functionality
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise detection
- Adjustable sensing range via 270° potentiometer
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Robust metal housing with nickel-plated brass and plastic optics
- Selectable light/dark switching mode via control cable
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor configuration according to electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
- Packaging machinery
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable construction reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTF180-2P41112 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
