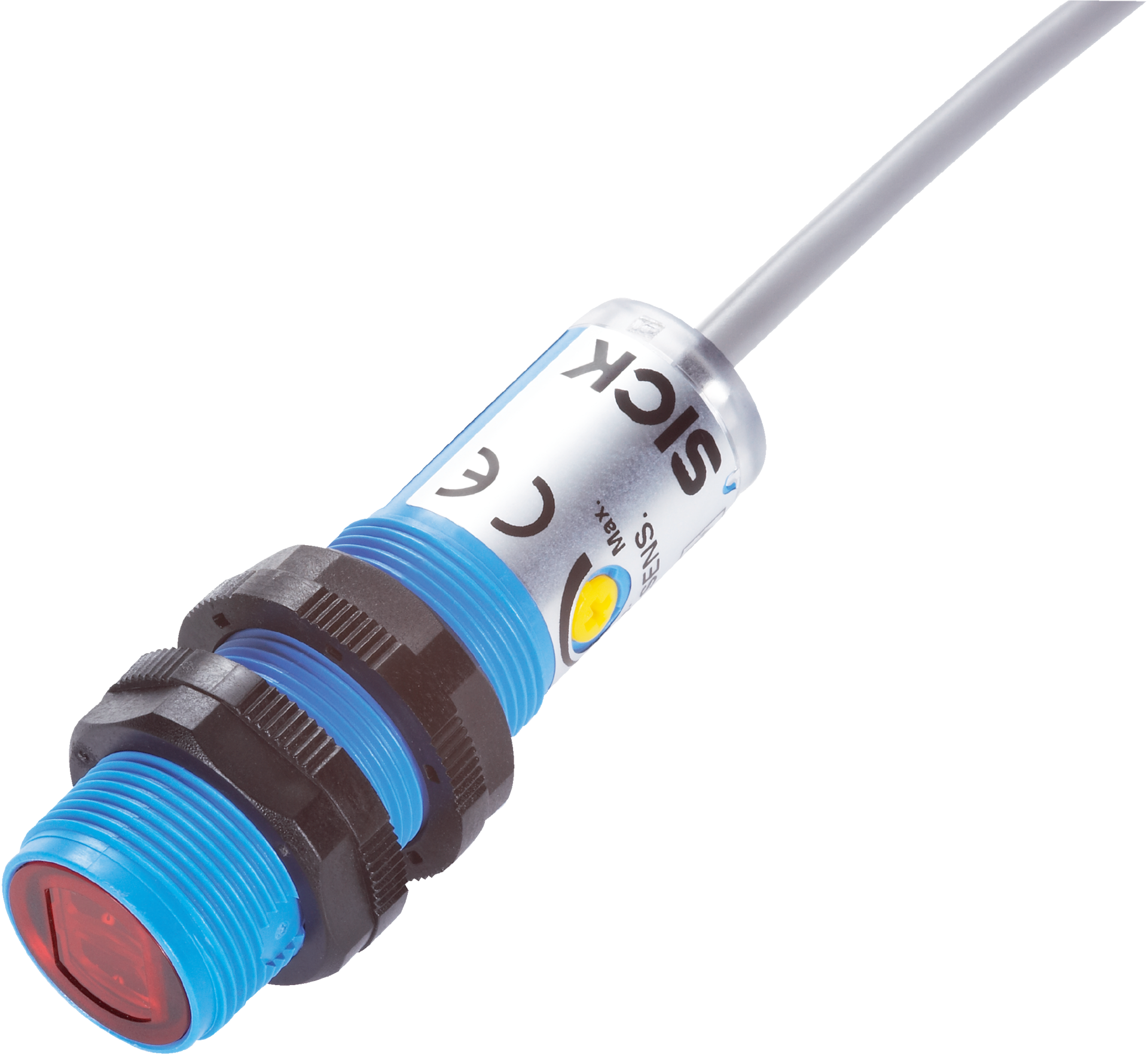

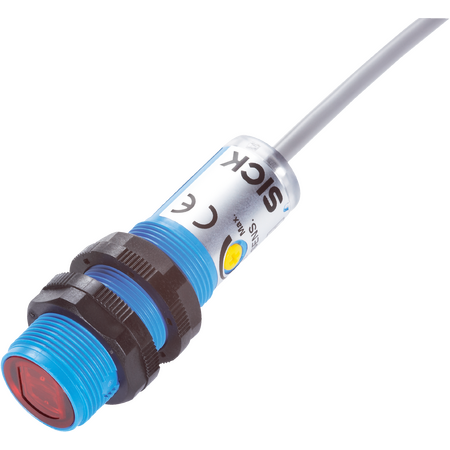

Photoelectric Proximity Sensor VTF180-2P41117 | Background Blanking | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor VTF180-2P41117 features advanced background blanking functionality and a sensing range of 1 mm to 140 mm, making it ideal for industrial automation and manufacturing applications. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, supporting efficient object detection and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Blanking Sensor, M18 Proximity Sensor, Red Light Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 140 mm
- Light source: LED, visible red light at 645 nm wavelength
- Adjustment: Potentiometer, 270° for sensing range
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking functionality
- Cylindrical housing design with M18 x 1 thread diameter
- Sensing range from 1 mm to 140 mm with focused optics
- Visible red LED light source with 645 nm wavelength
- Adjustable sensing range via 270° potentiometer
- Light/dark switching mode selectable via control cable
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
- Supplied with fastening nuts for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Supports automation that can optimize resource use and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTF180-2P41117 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
