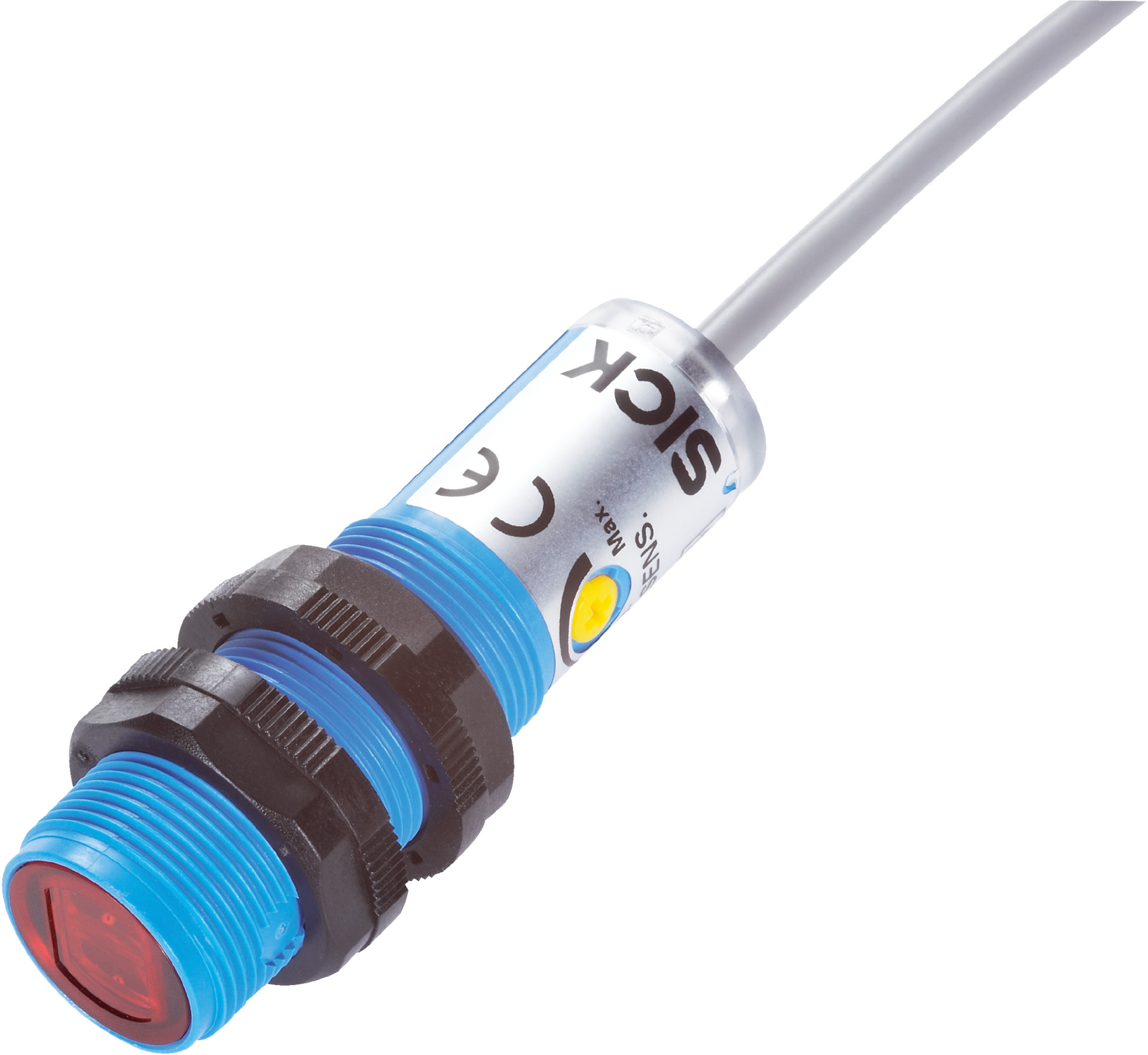

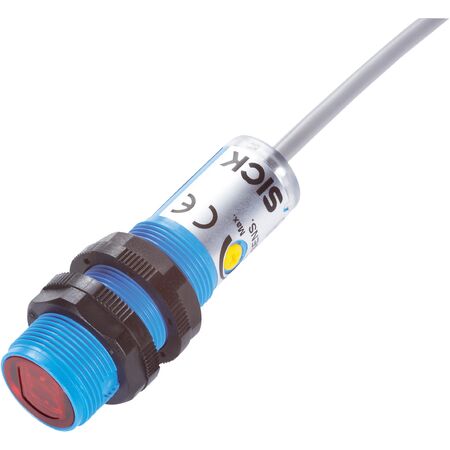

Photoelectric Proximity Sensor VTF180-2P41117 | IP67 Rated | 1000 Hz Switching Frequency | Red Light Detection | by SICK
The VTF180-2P41117 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a high switching frequency of 1000 Hz and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for manufacturing process control and safety monitoring, this sensor features a visible red light LED and adjustable sensing range for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP with light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Cable: 4-wire, 2 m length, PVC material, 0.18 mm² conductor cross section
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Weight: 62 g
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise detection
- Adjustable sensing range via 270° potentiometer
- Axial optical axis with cylindrical M18 x 1 housing
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTF180-2P41117 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
