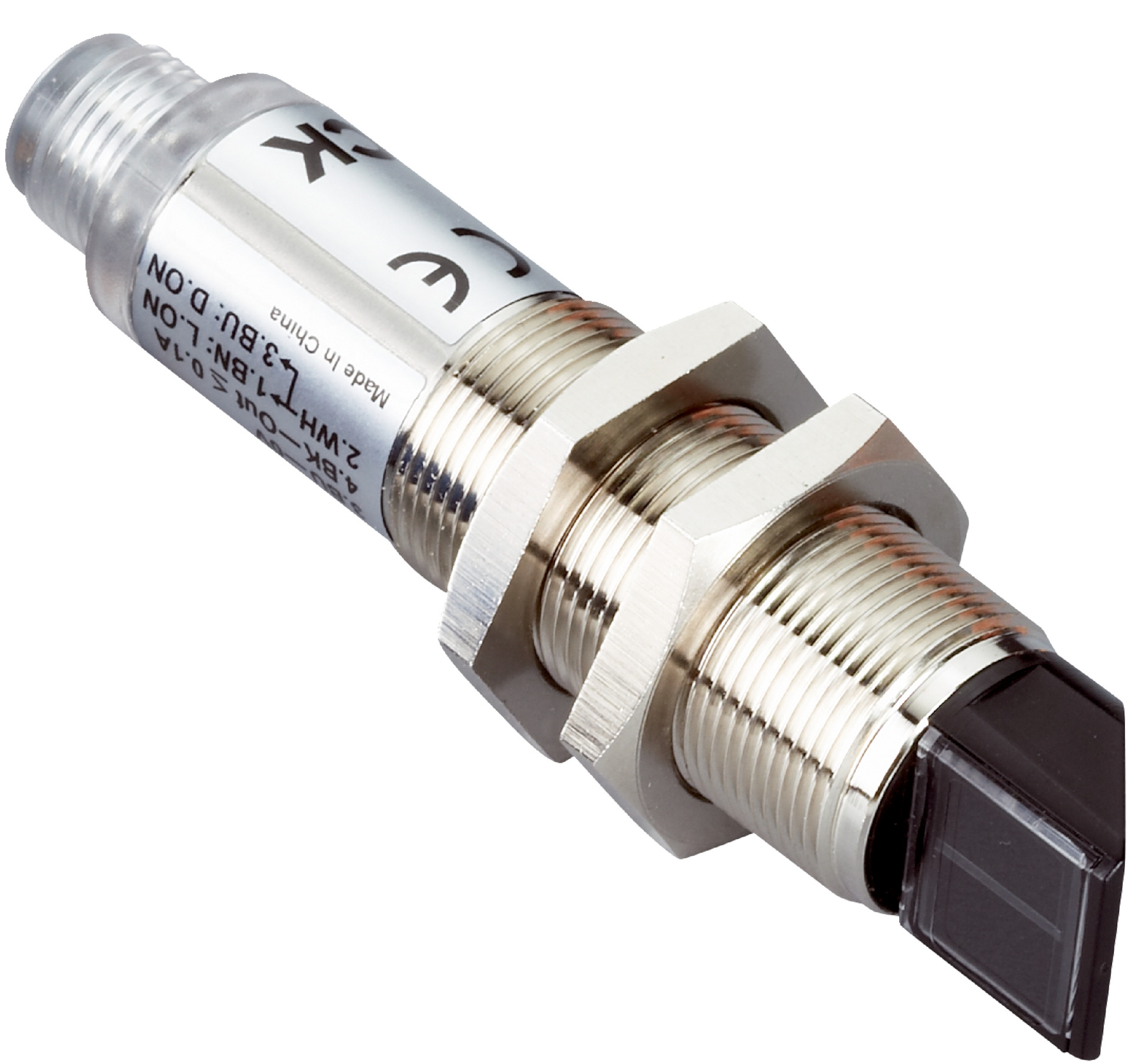

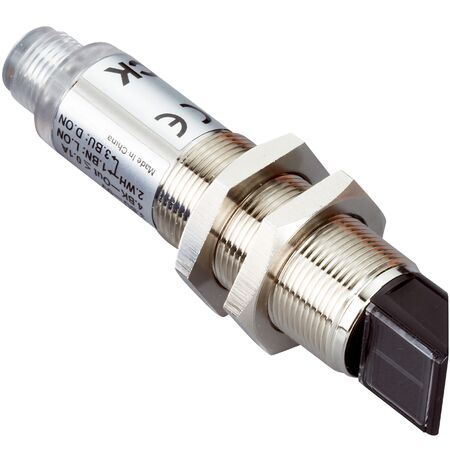

Photoelectric Proximity Sensor VTF180-2P42414 | Background Blanking | IP67 Rated | 1 mm to 130 mm Sensing Range | by SICK
The VTF180-2P42414 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 1 mm to 130 mm and a high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing and robotics applications. Its robust IP67 rated enclosure protects against dust and water, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 130 mm
- Light source: Visible red LED, 645 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise detection
- Radial optical axis with sensing range up to 130 mm
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Robust metal housing with nickel-plated brass and PC
- Male connector M12, 4-pin for easy connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and material handling
- Safety and monitoring systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable metal housing extends product lifespan reducing waste
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTF180-2P42414 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
