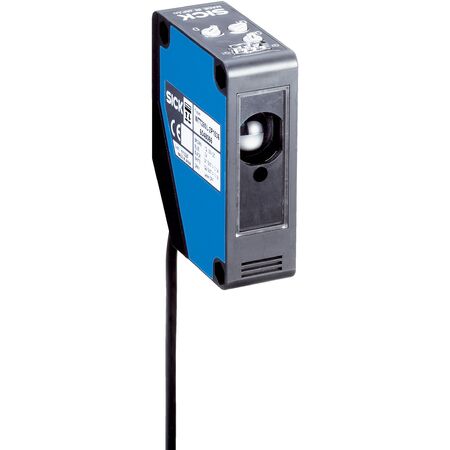

Photoelectric Proximity Sensor WLT280L-2P1536 | 200mm to 18,000mm Sensing Range | IP67 Rated | by SICK
The WLT280L-2P1536 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range from 200 mm to 18,000 mm and a visible red laser light source. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for safety and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 200 mm to 18,000 mm
- Light source: Visible red laser, Laser class 1
- Adjustment: Dual potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: PNP, 2 outputs (Q1, Q2)
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection type: 5-wire cable, 2 m length, PVC insulated
- Dimensions (H x L x W): 76mm x 55.8mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 18,000 mm
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Dual potentiometer adjustment for fine tuning
- Includes mounting bracket BEF-W280 and reflector P250
- High safety parameters with MTTFD of 173.7 years and 0% DCavg
- IP67 rated enclosure for dust and water protection
- Operating voltage range 10 V DC to 30 V DC with low ripple
- PNP switching output with selectable light/dark switching mode
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
- Cable connection with 5-wire, 2 m length, PVC insulated
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption of 70 mA
- Durable IP67 rated housing reduces need for frequent replacements
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLT280L-2P1536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
