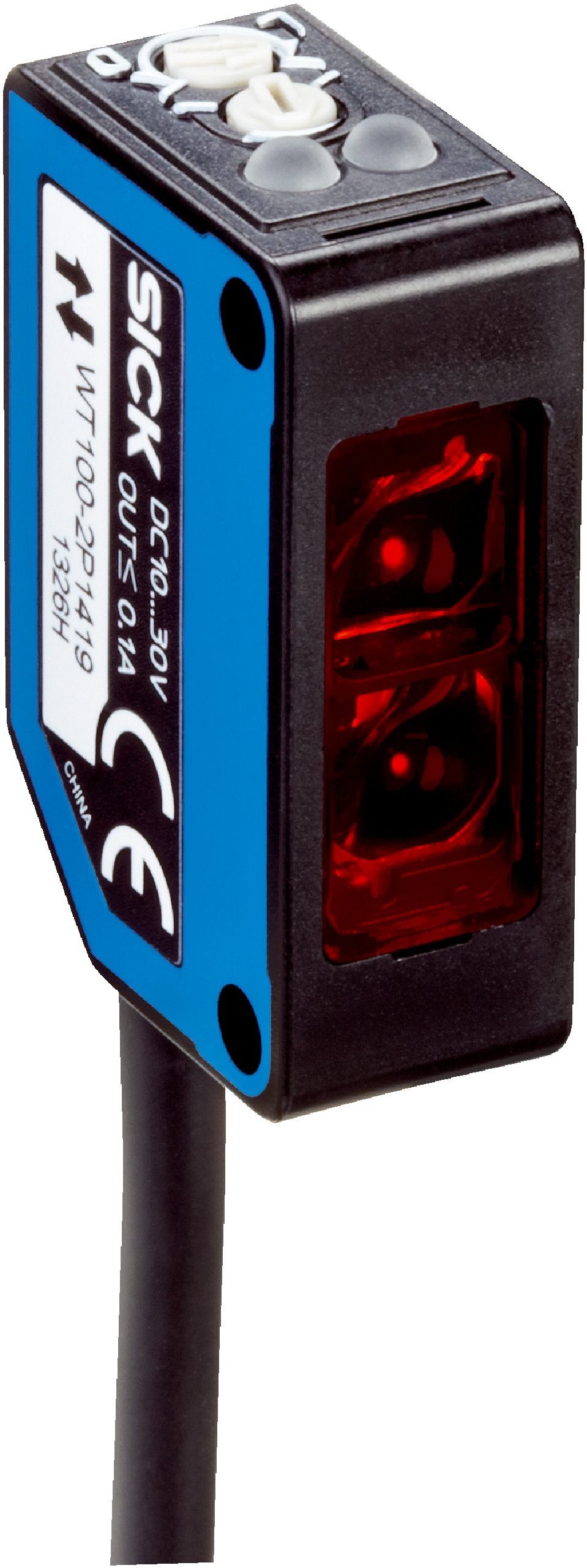

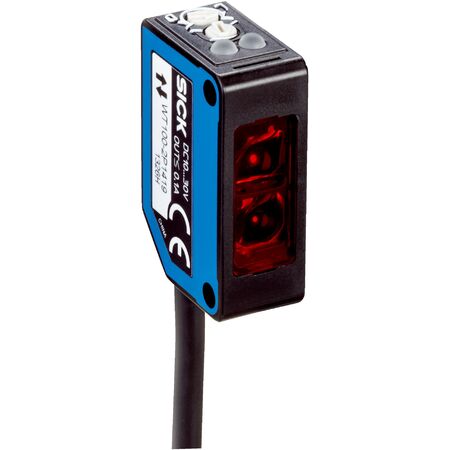

Photoelectric Proximity Sensor WT100-2N1419 | Background Blanking | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WT100-2N1419 is designed for industrial automation, featuring background blanking functionality and a sensing range of 10 mm to 100 mm. With a high switching frequency of 1,000 Hz and a fast response time of ≤ 0.5 ms, this sensor is perfect for manufacturing process control and robotics applications. Its durable IP67 rated enclosure ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 10 mm to 100 mm (max 4 mm to 140 mm)
- Light source: Visible red LED, wavelength 632 nm
- Light spot size: Ø 8 mm at 90 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic (ABS/PC/POM), Optics: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking functionality
- Rectangular housing design with visible red LED light source
- Adjustable sensing range via potentiometer
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Supplied with mounting bracket BEF-W100-A
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT100-2N1419 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
