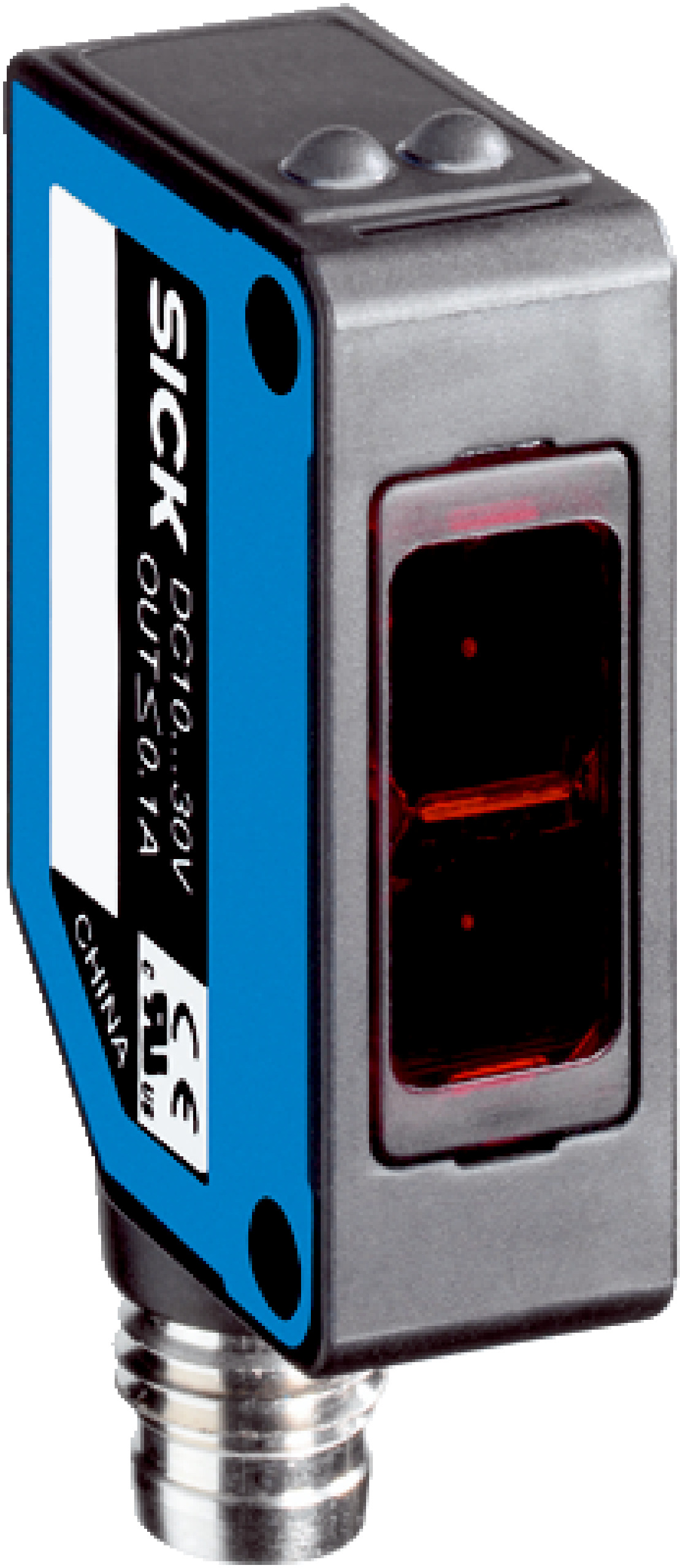

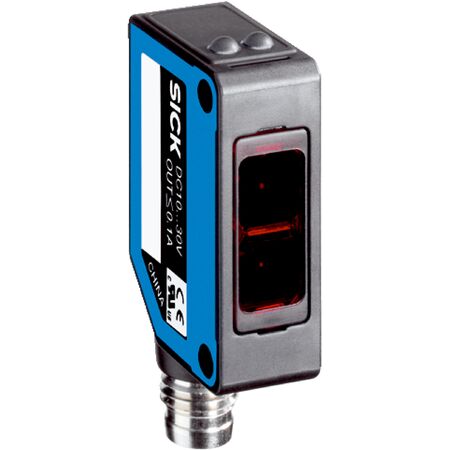

Photoelectric Proximity Sensor WT100-2P0230S11 | IP67 Rated | Fast Response Time | 1000 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor WT100-2P0230S11 is designed for industrial automation, featuring a sensing range of 20 mm to 210 mm and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable with Stocko-connector (MKF-13264), 300 mm length
- Cable material: Plastic, PUR
- Conductor cross section: 0.18 mm²
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -30 °C to +55 °C
- Ambient storage temperature: -40 °C to +70 °C
- Light spot size at 1000 mm distance: Ø 75 mm
- Wave length: 632 nm
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range from 20 mm to 210 mm
- LED light source with wavelength of 632 nm
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WT100-2P0230S11 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
