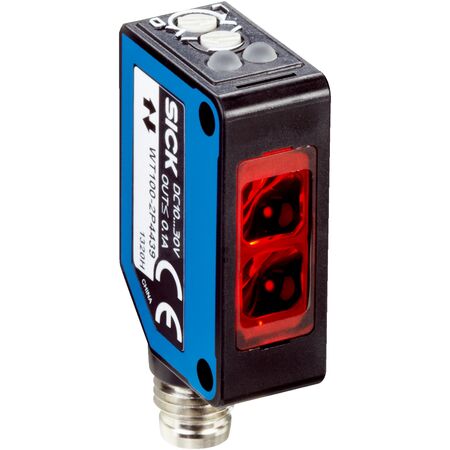

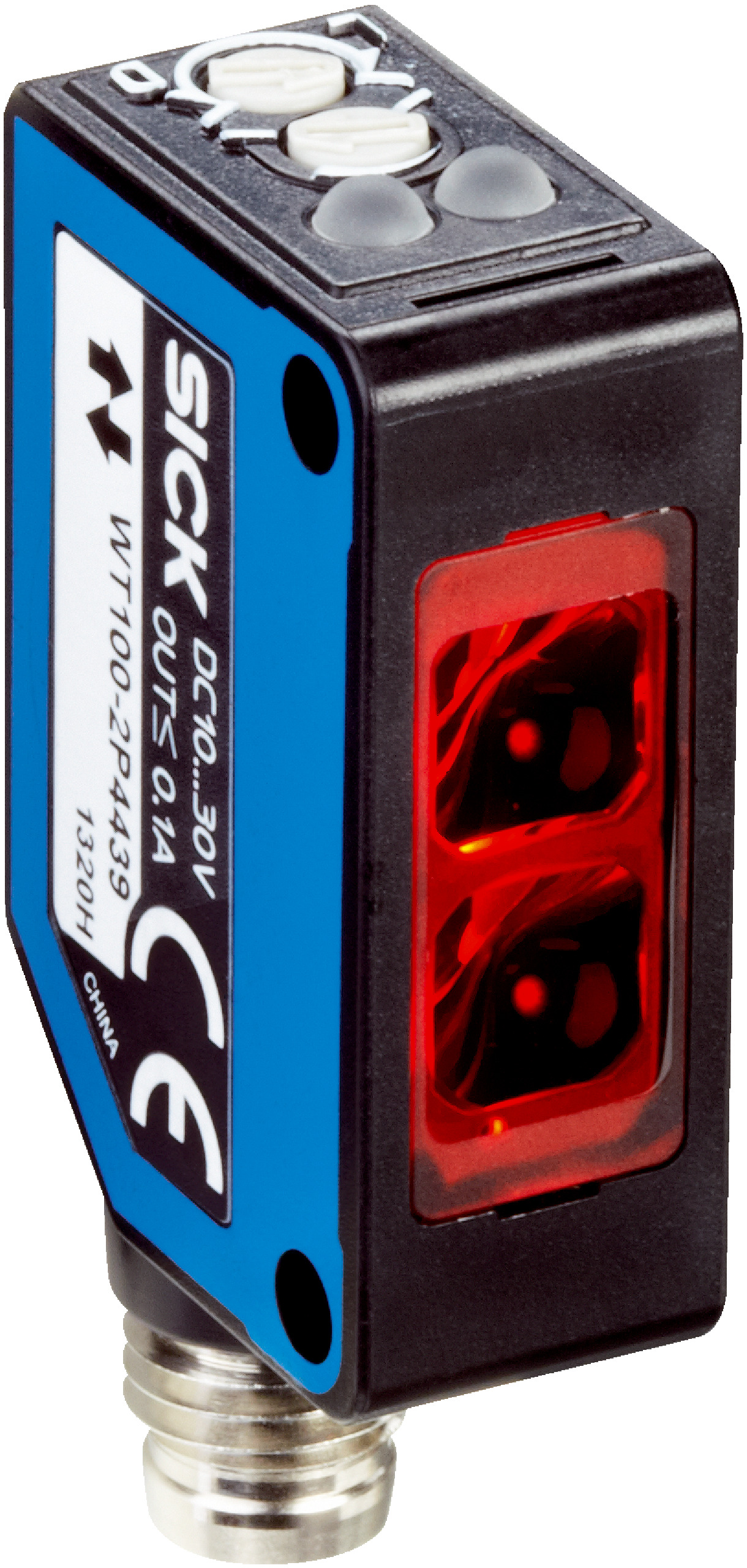

Photoelectric Proximity Sensor WT100-2P0409S45 | Sensing Range 1200 mm | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WT100-2P0409S45 is designed for industrial automation, featuring a sensing range of up to 1200 mm and a visible red light emission. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, it ensures reliable performance in demanding environments. Ideal for manufacturing process control and safety systems, this sensor is built for efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range max.: 0 mm to 1200 mm
- Type of light: Visible red light
- Light source: LED
- Light spot size at 1000 mm: Ø 75 mm
- Wave length: 632 nm
- Adjustment: Potentiometer for sensing range
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ±10%
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable via rotary switch
- Signal voltage PNP HIGH/LOW: UV - 1.8 V / approx. 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable with M8 male connector, 4-pin, 300 mm
- Cable material: Plastic, PVC
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Ambient operating temperature: -25°C to +55°C
- Ambient storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range up to 1200 mm, adjustable via potentiometer
- LED light source with 632 nm wavelength
- Selectable light/dark switching mode
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT100-2P0409S45 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
