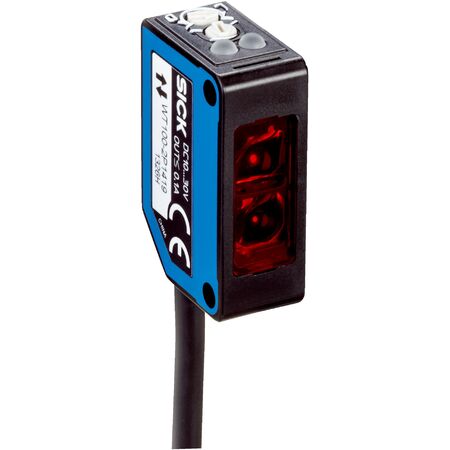

Photoelectric Proximity Sensor WT100-2P1402S04 | IP67 Rated | Fast Response Time ≤ 0.5 ms | Adjustable Sensing Range | by SICK
The WT100-2P1402S04 Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range up to 1200 mm and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via rotary switch
- Signal voltage PNP HIGH/LOW: UV - 1.8 V / approx. 0 V
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M12 male connector, 4-pin, 290 mm length
- Cable material: Plastic, PVC
- Conductor cross section: 0.18 mm²
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range up to 1200 mm, adjustable via potentiometer
- LED light source with 632 nm wavelength
- Switching output: PNP with light/dark switching selectable
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT100-2P1402S04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
