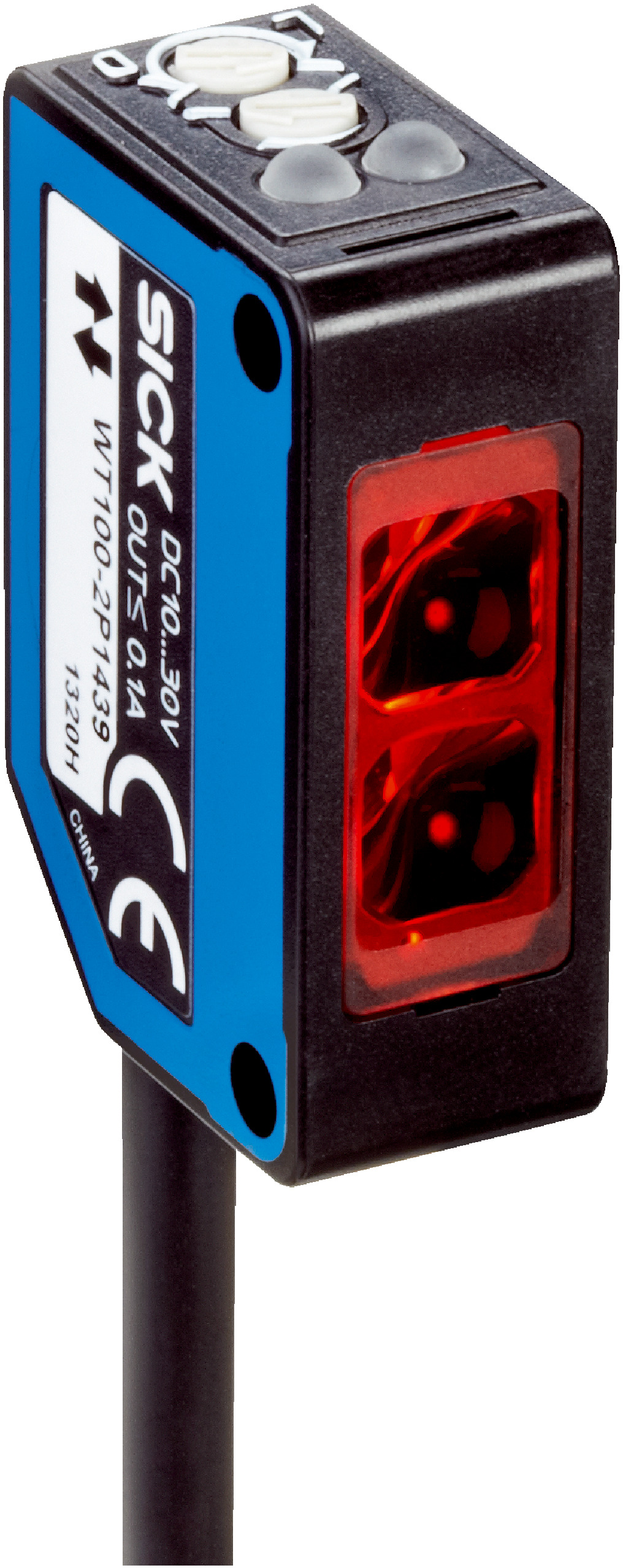

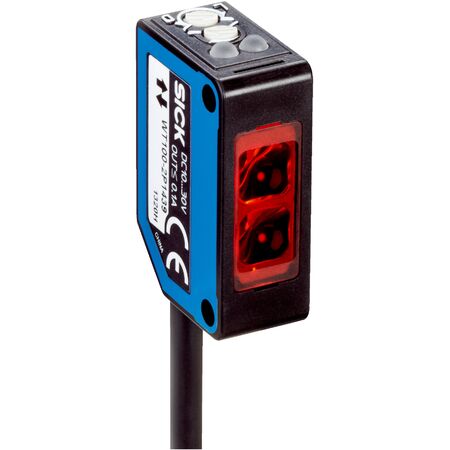

Photoelectric Proximity Sensor WT100-2P1439 | IP67 Rated | 1200 mm Sensing Range | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WT100-2P1439 is designed for industrial automation, featuring a sensing range of up to 1200 mm and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety systems. Its selectable light/dark switching mode adds versatility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Signal voltage PNP HIGH/LOW: UV - 1.8 V / approx. 0 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: 3-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.18 mm²
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic ABS/PC/POM
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Ambient storage temperature: -40 °C to +70 °C
- MTTFD: 954 years
- Wave length: 632 nm
- Light spot size at 1000 mm: Ø 75 mm
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range up to 1200 mm, adjustable via potentiometer
- LED light source with 632 nm wavelength
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Cable connection with 3-wire, 2 m PVC cable
- Selectable light/dark switching mode via rotary switch
- Mounting bracket BEF-W100-A included
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WT100-2P1439 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
