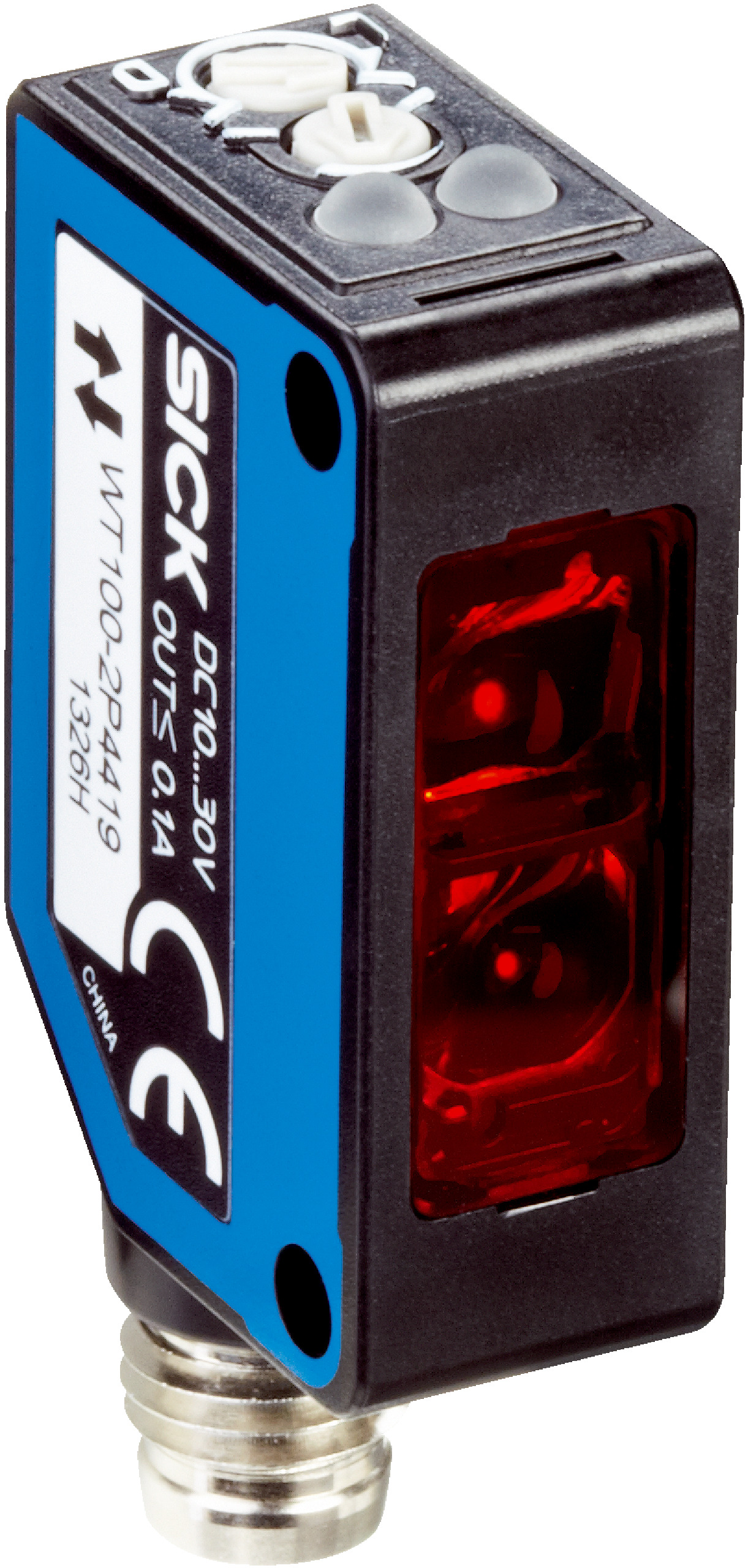

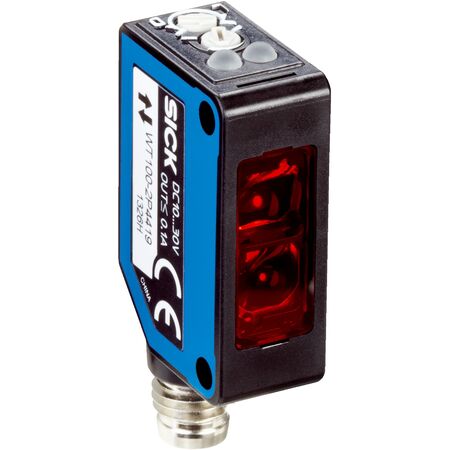

Photoelectric Proximity Sensor WT100-2P3419 | IP67 Rated | 1000 Hz Switching Frequency | Background Blanking Functionality | by SICK
The Photoelectric Proximity Sensor WT100-2P3419 is designed for industrial automation, featuring a high switching frequency of 1000 Hz and an IP67 rated enclosure for dust and water protection. With a sensing range of 10 mm to 100 mm and selectable light/dark switching mode, it's perfect for manufacturing process control and robotics applications, ensuring reliable object detection in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Output current max: ≤ 100 mA
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Ambient operating temperature: -25°C to +55°C
- Ambient storage temperature: -40°C to +70°C
- Connection type: Connector M8, 3-pin
- Light source: LED, wavelength 632 nm
- Light spot size: Ø 8 mm at 90 mm distance
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking functionality
- Rectangular housing design with visible red light emission
- Sensing range from 10 mm to 100 mm, max 140 mm
- LED light source with 632 nm wavelength
- Potentiometer adjustment for sensing range
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
- Connector M8, 3-pin connection type
- Light/dark switching mode selectable via rotary switch
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces replacement frequency and waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT100-2P3419 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
