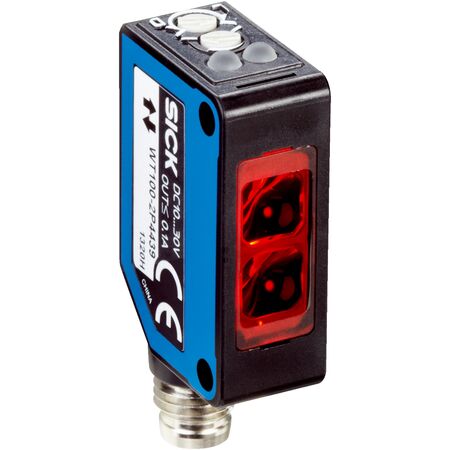

Photoelectric Proximity Sensor WT100-2P3439 | IP67 Rated | Fast Response Time ≤ 0.5 ms | PNP Output | by SICK
The WT100-2P3439 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of up to 1200 mm and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP with max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: M8, 3-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Ambient operating temperature: -25°C to +55°C
- Wave length: 632 nm
- Light spot size at 1000 mm: Ø 75 mm
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Sensing range up to 1200 mm, adjustable via potentiometer
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode with PNP output
- Robust plastic housing (ABS/PC/POM) and optics (PMMA)
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT100-2P3439 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
