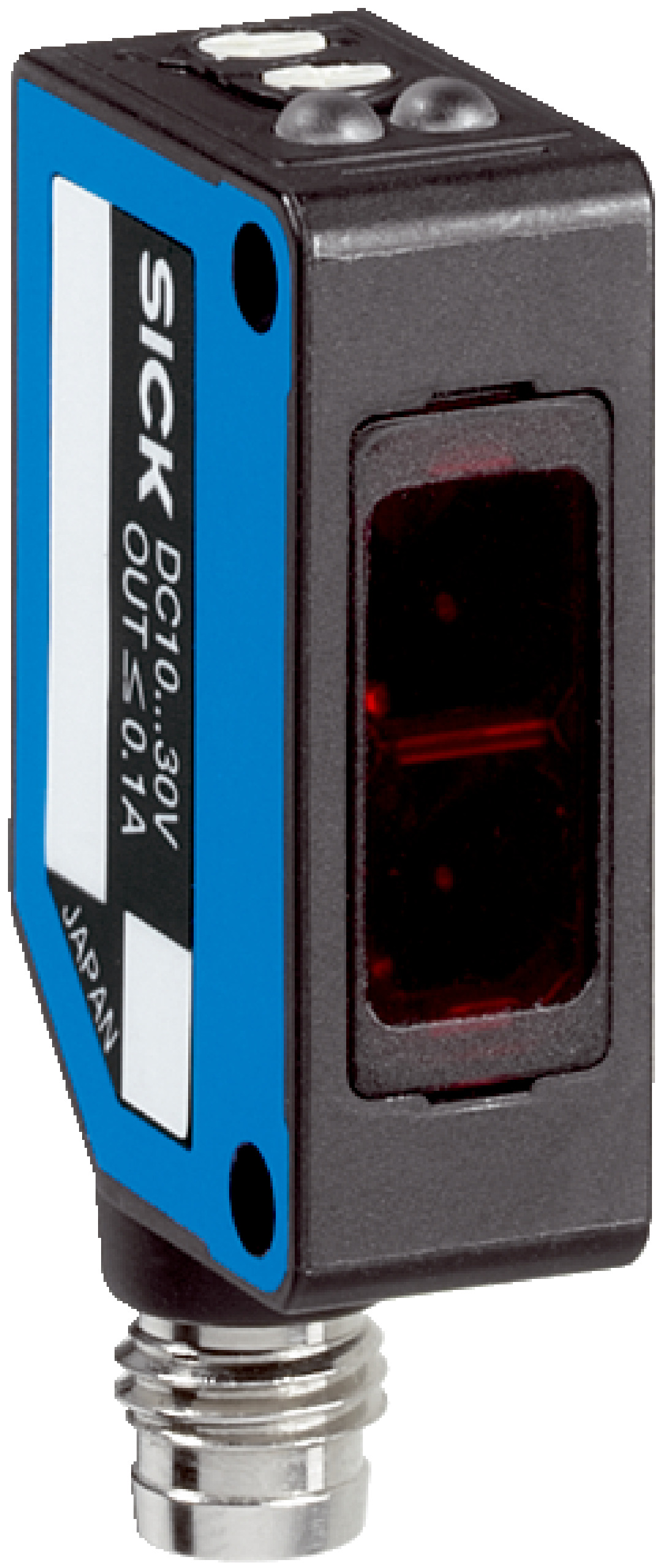

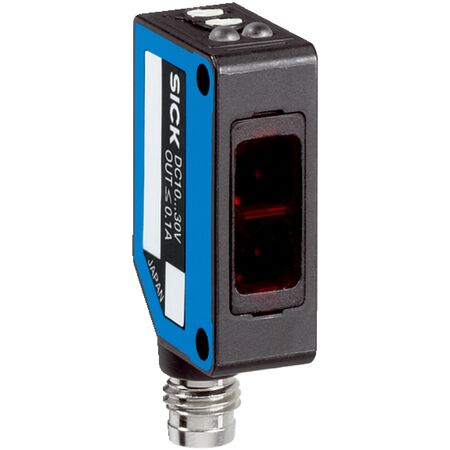

Photoelectric Proximity Sensor WT100L-E2241 | IP65 Rated | 650nm Laser Light | 400mm Sensing Range | by SICK
The WT100L-E2241 Photoelectric Proximity Sensor is designed for precise detection of small objects and high-speed movements, making it ideal for industrial automation. With a robust IP65 enclosure, a visible 650nm laser light source, and a high switching frequency of 2,000 Hz, this sensor ensures reliable performance in various applications. Its compact design and easy installation with a stainless steel mounting bracket make it a versatile choice for safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Signal voltage NPN HIGH/LOW: Approx. VS / < 1.8 V
- Output current max: ≤ 100 mA
- Response time: < 0.25 ms
- Switching frequency: 2,000 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Laser class: 1
- Light spot size at 400 mm: Ø 2 mm
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 400 mm, max 450 mm
- Rectangular housing design with IP65 enclosure rating
- Potentiometer adjustment with 270° rotation
- Light/dark switching mode selectable via rotary switch
- High switching frequency of 2,000 Hz and response time under 0.25 ms
- Supplied with stainless steel mounting bracket
- Operating temperature range from -10°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Detection of small objects
- Detection of objects moving at high speeds
- Industrial automation and safety systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable ABS/PC plastic housing reduces material waste
- Long service life with MTTFD of 453 years, minimizing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WT100L-E2241 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
