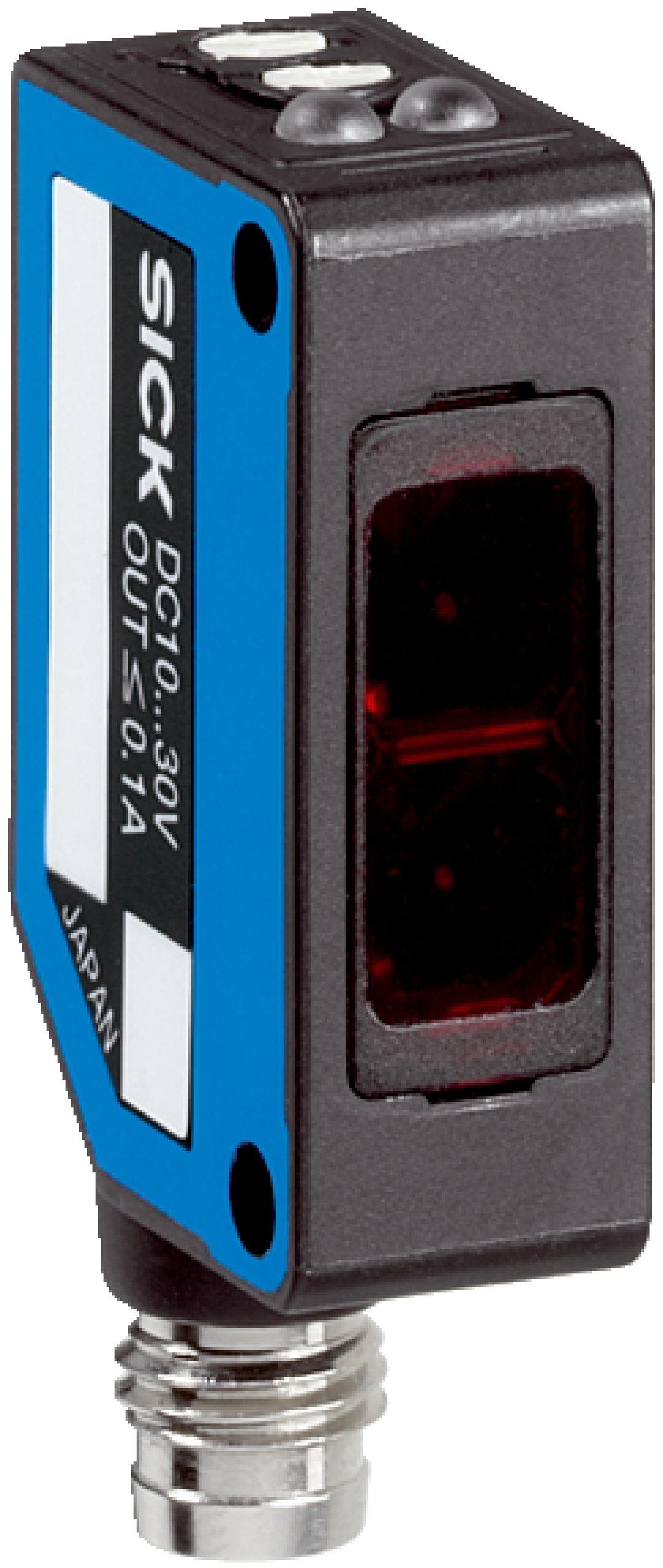

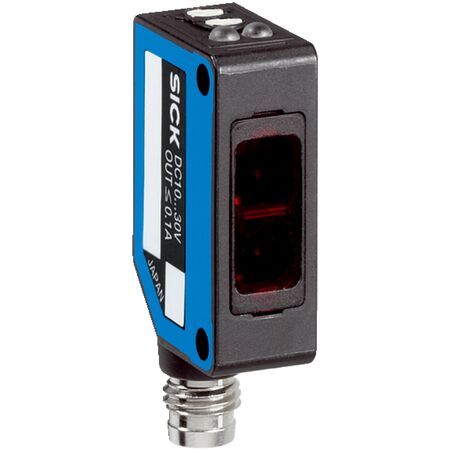

Photoelectric Proximity Sensor WT100L-F1141 | IP65 Rated | 2,000 Hz Switching Frequency | Laser Class 1 | by SICK
The WT100L-F1141 Photoelectric Proximity Sensor is designed for high-speed object detection in industrial automation. With a sensing range of up to 450 mm and a high switching frequency of 2,000 Hz, it ensures precise performance. Its IP65 rated enclosure provides excellent dust and water protection, making it ideal for various manufacturing processes and environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: < 0.25 ms
- Switching frequency: 2,000 Hz
- Connection: 3-wire cable, 2 m length, PVC material
- Housing material: Plastic ABS/PC/POM
- Optics material: Plastic PMMA
- Enclosure rating: IP65
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Laser class: 1
- Light spot size: Ø 2 mm at 400 mm distance
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 400 mm, max 450 mm
- Rectangular housing design with laser class 1 safety
- Adjustable potentiometer with 270° rotation
- Light/dark switching mode selectable via rotary switch
- High switching frequency of 2,000 Hz
- IP65 rated enclosure for dust and water protection
- Includes stainless steel mounting bracket
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Small object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP65 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WT100L-F1141 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
