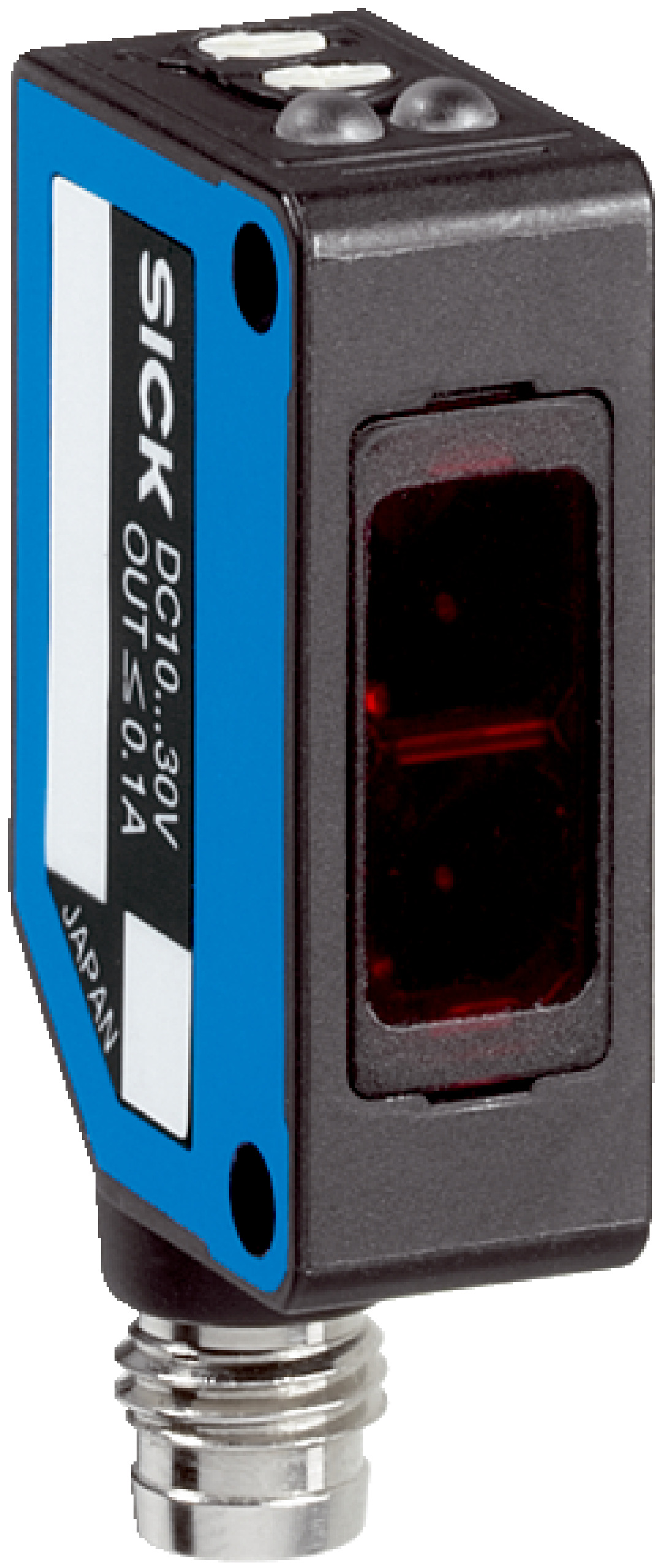

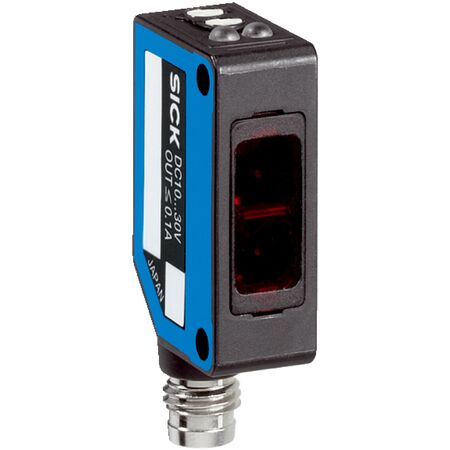

Photoelectric Proximity Sensor WT100L-F2241 | IP65 Rated | 2000 Hz Switching Frequency | Red Laser Light | by SICK
The WT100L-F2241 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a high switching frequency of 2000 Hz and an IP65 rated enclosure for dust and water resistance. With a sensing range of up to 450 mm and a visible red laser light source, this sensor is perfect for detecting small objects and high-speed movements, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: < 0.25 ms
- Switching frequency: 2,000 Hz
- Connection type: Male connector M8, 4-pin
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP65
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Laser class: 1
- Light spot size at 400 mm: Ø 2 mm
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 400 mm, max 450 mm
- Rectangular housing design with light emission
- Potentiometer adjustment with 270° rotation
- Light/dark switching mode selectable via rotary switch
- High switching frequency of 2,000 Hz
- IP65 rated enclosure for dust and water resistance
- Supplied with stainless steel mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Detecting small objects
- Detection of objects moving at high speeds
- Industrial automation and manufacturing processes
- Object presence detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable ABS/PC plastic housing extends product life reducing waste
- IP65 rating protects against dust and water ingress, enhancing reliability and reducing replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WT100L-F2241 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
