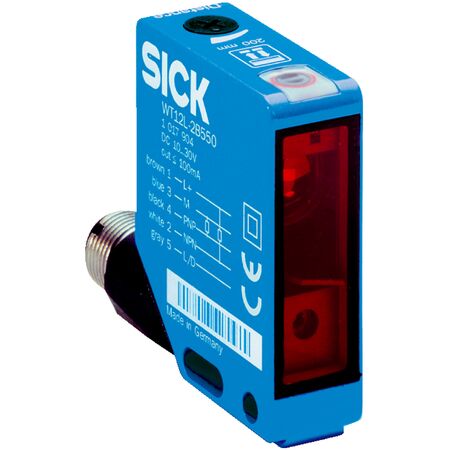

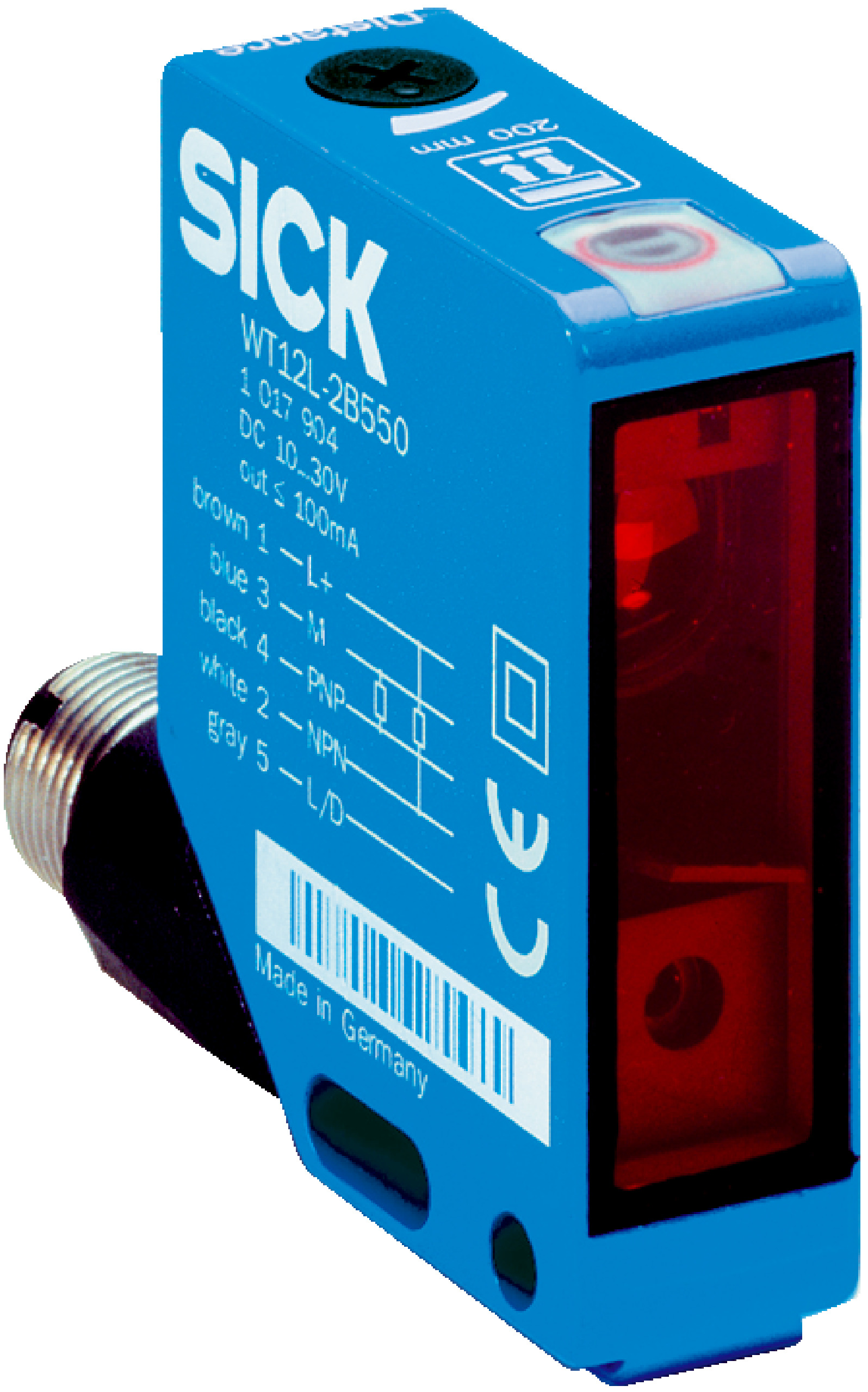

Photoelectric Proximity Sensor WT12L-2B551 | IP67 & IP69K Rated | 30mm to 200mm Sensing Range | by SICK
The WT12L-2B551 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 30mm to 200mm and robust IP67/IP69K protection. With a high switching frequency of 1,000 Hz and a visible red laser light source, it ensures precise object detection in manufacturing lines and robotics. Ideal for applications requiring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WT12L-2B551 | IP67 & IP69K Rated | 30mm to 200mm Sensing Range | by SICK
Brand: SICK
SKU: 1047958
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, Laser proximity sensor, SICK WT12L sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 55 mA
- Output type: PNP/NPN selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +75°C
- Connection: M12, 5-pin plug
- Housing material: Metal with plastic PMMA front screen
- Weight: 130 g
- Dimensions (H x L x W): 49mm x 41.5mm x 15mm
- Weight: 0.13 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 30 mm to 200 mm
- Visible red laser light source with 650 nm wavelength
- Laser class 1 for safe operation
- Adjustable potentiometer for sensitivity tuning
- Selectable light/dark switching modes via control cable
- High switching frequency of 1,000 Hz
- Robust metal housing with IP67 and IP69K protection ratings
- Operating temperature range from -10°C to +50°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connections according to safety standards.
Applications
- Industrial automation for detecting small objects
- High-speed object detection in manufacturing lines
- Precision sensing in robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WT12L-2B551 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
