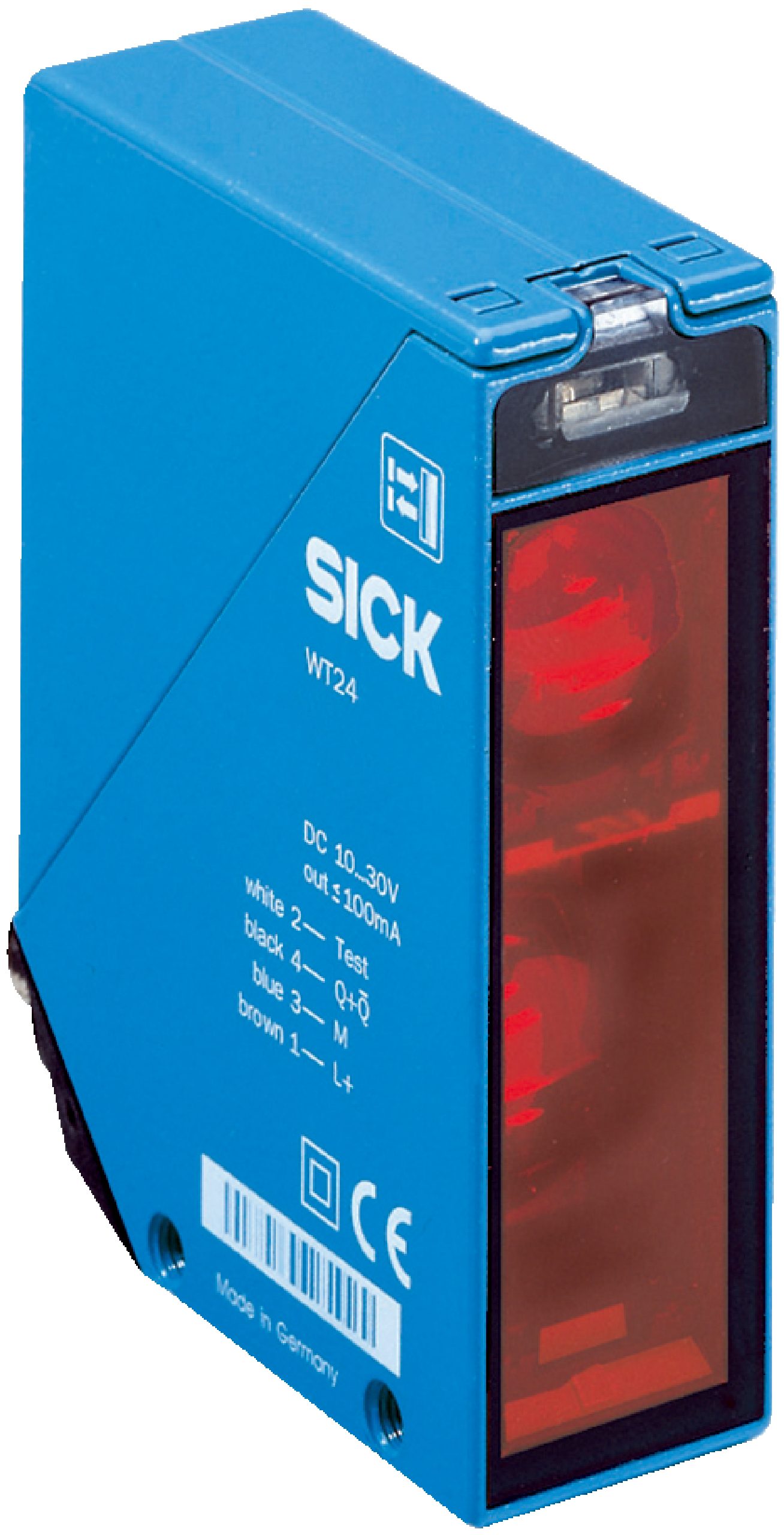

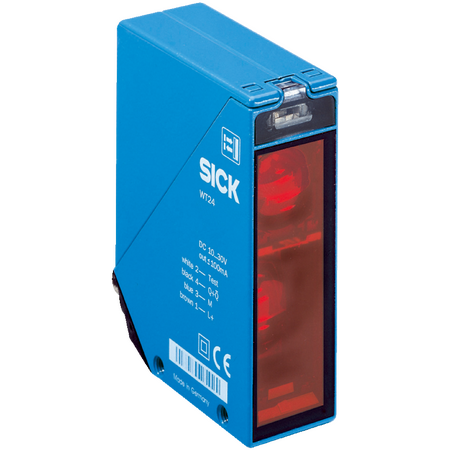

Photoelectric Proximity Sensor WT24-2B210 | IP67 Rated | Infrared LED | 100 mm to 2,500 mm Sensing Range | by SICK
The WT24-2B210 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 100 mm to 2,500 mm and an IP67 rated enclosure for dust and water protection. With selectable switching modes and a fast response time of ≤ 500 µs, it's perfect for material handling, safety detection, and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, Infrared proximity sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 100 mm to 2,500 mm
- Light source: Infrared LED
- Light spot size: Ø 80 mm at 2,500 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN, PNP selectable
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Terminal connection with M16 gland
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Metal, zinc diecast
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.33 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular metal zinc diecast housing
- Sensing range from 100 mm to 2,500 mm
- Infrared LED light source with Ø 80 mm light spot at 2,500 mm
- Selectable switching mode: light/dark and PNP/NPN
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from –40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Robotics and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WT24-2B210 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
